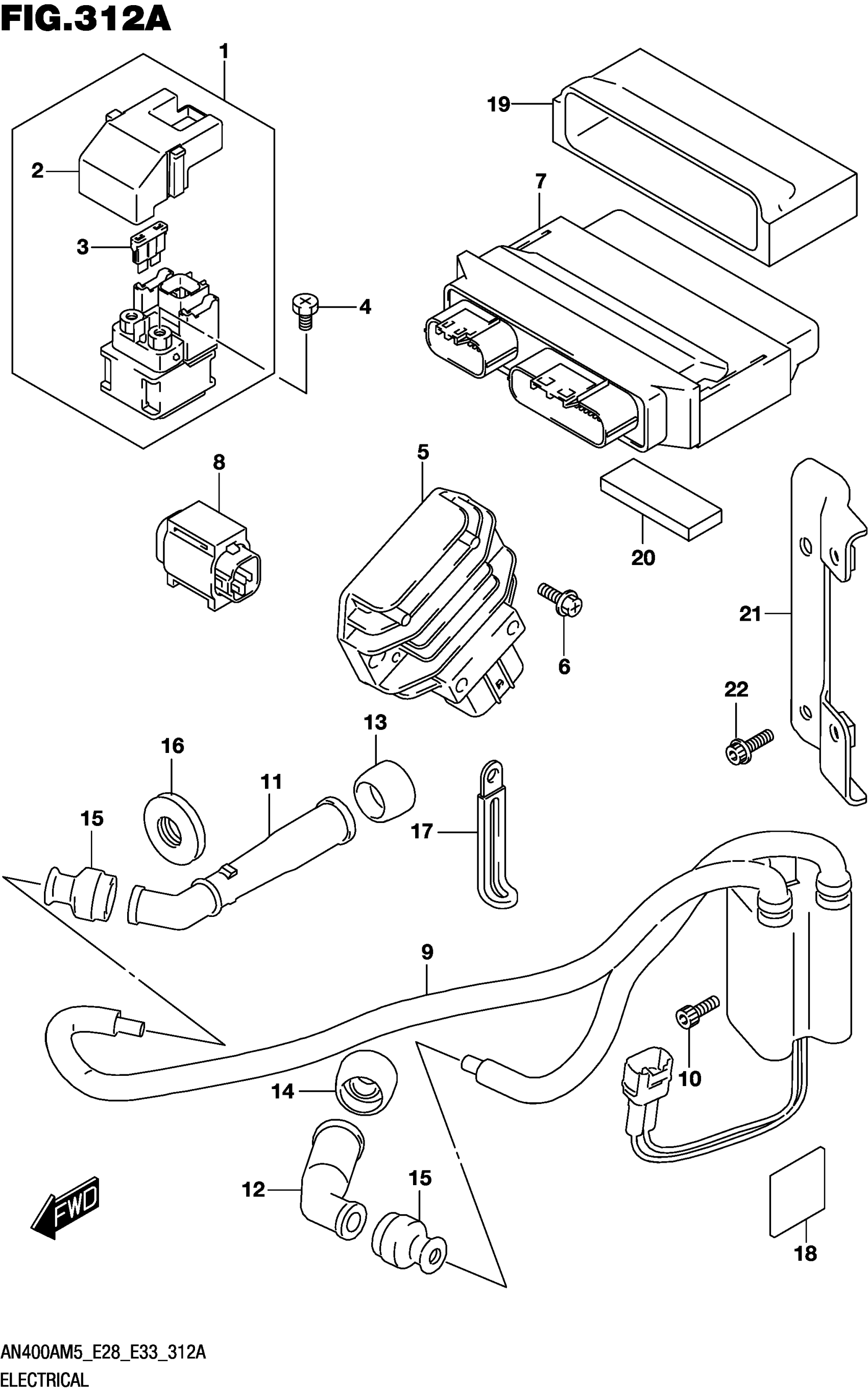

Suzuki AN400AM5 (2025) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR

31800-21E30

$61.62

2

.COVER

31861-47E00

$18.23

3

.FUSE (30A)

09481-30101

$2.28

4

SCREW (6X8)

09128-06013

$1.24

5

RECTIFIER ASSY

32800-19K03

$234.32

6

SCREW

02162-0620C

$1.73

7

HARDWARE,FI CONTROL UNIT

32910-19K00

$718.76

8

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

9

COIL ASSY,IGNITION

33410-19K00

$117.82

10

BOLT

07130-0620A

$2.50

11

CAP,SPARK PLUG

33510-48B10

$29.09

12

CAP ASSY,SPARK PLUG

33510-20E00

$39.05

13

SEAL,SPARK PLUG

33541-23E10

$6.17

14

SEAL,SPARK PLUG CAP

33541-13H10

$6.90

15

SEAL,HIGH TENSION CORD (SIDE)

33542-48H01

$4.93

16

COVER,SPARK PLUG CAP

33543-33E01

$4.16

17

CLAMP (L:45)

09404-06429

$1.82

18

CUSHION,HELMET BOX (60X60X3.0

92213-33G00

$7.95

19

HOLDER,FI CONTROL UNIT

32980-11L00

$15.07

20

CUSHION,FI CONTROL UNIT

33902-19K00

$2.47

21

BRACKET,IGNITION COIL

47420-19K00

$13.63

22

BOLT

07120-0620A

$2.80
