2025 Suzuki AN400AM5 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 2025 Suzuki AN400AM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

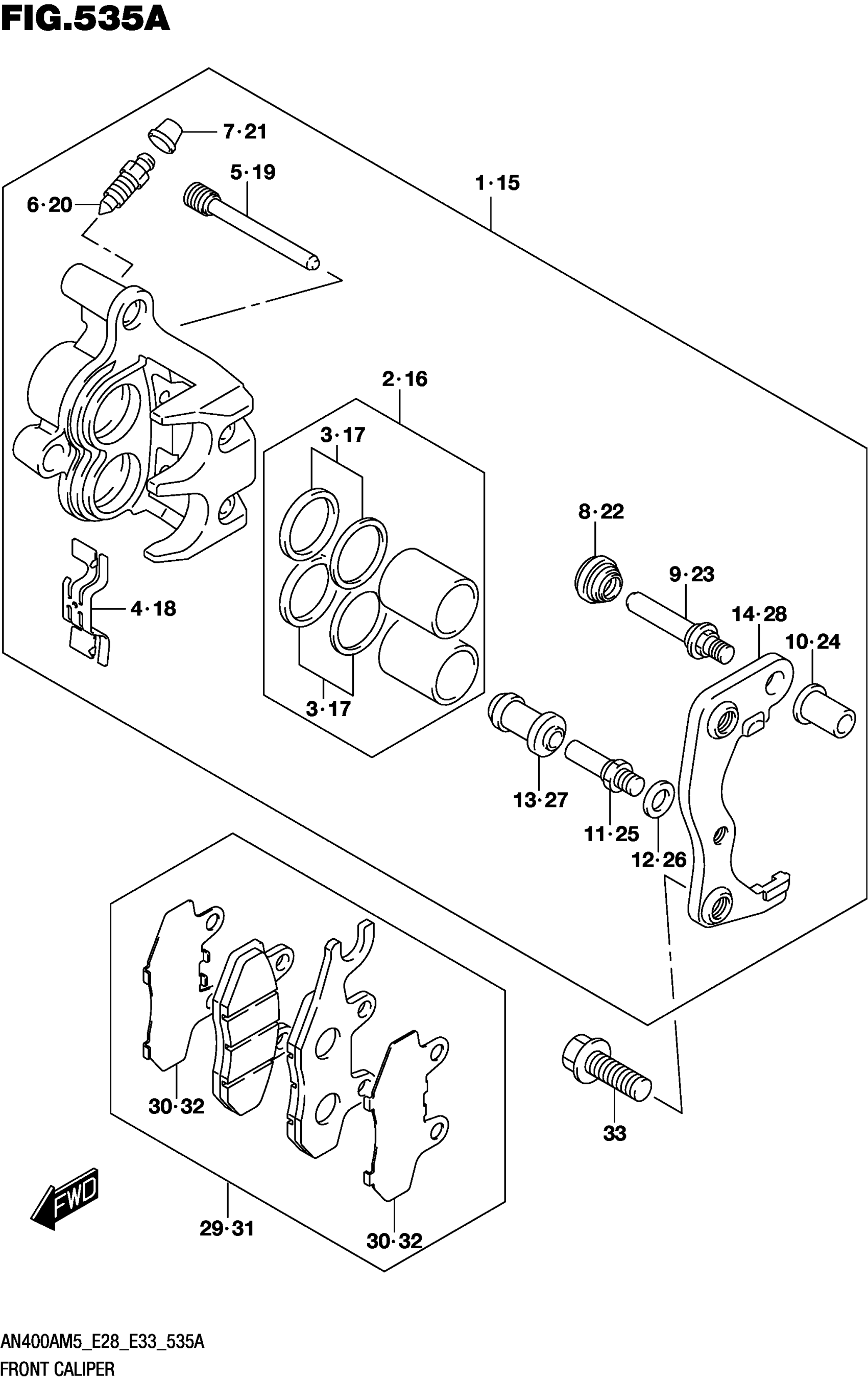

2025 Suzuki AN400AM5 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,FRONT RH

59100-05H10-999

1
Out of stock

2

.PISTON SET

59300-21810

1
Out of stock

3

..SEAL SET,PISTON

59300-21860

1

$26.75

In stock

4

.SPRING,PAD

69115-31D10

1
Out of stock

5

.PIN

59345-14600

2
Out of stock

6

.BLEEDER

59121-01A00

1
Out of stock

7

.CAP,BLEEDER

59122-46H00

1
Out of stock

8

.BOOT

59303-14500

1
Out of stock

9

.PIN

59387-00B20

1
Out of stock

10

.NUT

59388-00B20

1
Out of stock

11

.BOLT

59382-13A00

1
Out of stock

12

.WASHER

59314-13A00

1
Out of stock

13

.BOOT

59386-13A00

1
Out of stock

14

.BRACKET

69151-31D00

1
Out of stock

15

CALIPER ASSY,FRONT LH

59300-05H10-999

1
Out of stock

16

.PISTON SET

59300-21810

1
Out of stock

17

..SEAL SET,PISTON

59300-21860

1

$26.75

In stock

18

.SPRING,PAD

69115-31D10

1
Out of stock

19

.PIN

59345-14600

2
Out of stock

20

.BLEEDER

59121-01A00

1
Out of stock

21

.CAP,BLEEDER

59122-46H00

1
Out of stock

22

.BOOT

59303-14500

1
Out of stock

23

.PIN

59387-00B20

1
Out of stock

24

.NUT

59388-00B20

1
Out of stock

25

.BOLT

59382-13A00

1
Out of stock

26

.WASHER

59314-13A00

1
Out of stock

27

.BOOT

59386-13A00

1
Out of stock

28

.BRACKET LH

59351-05H00

1
Out of stock

29

PAD SET,FRONT BRAKE RH

59100-05820

1
Out of stock

30

.SHIM

69132-31D00

2

$11.31

In stock

31

PAD SET,FRONT BRAKE LH

59100-05830

1
Out of stock

32

.SHIM

69132-31D00

2

$11.31

In stock

33

BOLT (10X20)

01550-1025A

4
Out of stock
