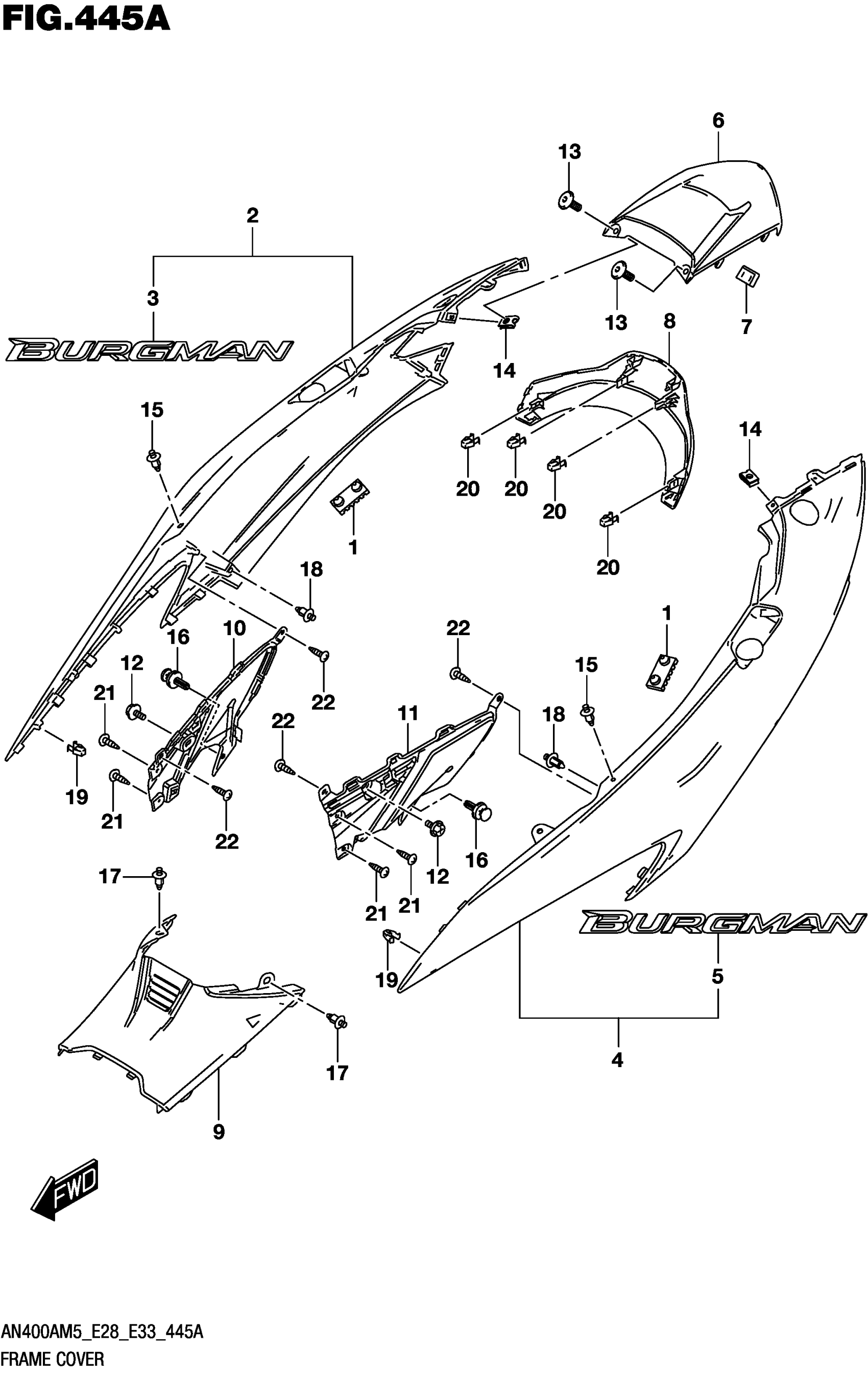

Suzuki AN400AM5 (2025) FRAME COVER Diagram

#

Description
Price

1

CUSHION,SEAT (40X20X6)

45149-12C00

$6.63

2-1

COVER,FRAME RH (BLACK) | BODY COLOR:YKV

47110-19K00-YKV

$259.10

2-2

COVER,FRAME,R (GRAY) | BODY COLOR:YUD

47110-19K00-YUD

$216.90

2-3

COVER,FRAME,R (SILVER) | BODY COLOR:QKA

47110-19K00-QKA

$239.28

3

EMBLEM,FRAME CO This part replaces 68131-05H10.

68131-12JA1

$19.98

4-1

COVER,FRAME LH (BLACK) | BODY COLOR:YKV

47210-19K00-YKV

$273.15

4-2

COVER,FRAME,L (GRAY) | BODY COLOR:YUD

47210-19K00-YUD

$229.22

4-3

COVER,FRAME,L (SILVER) | BODY COLOR:QKA

47210-19K00-QKA

$239.28

5

EMBLEM,FRAME CO This part replaces 68131-05H10.

68131-12JA1

$19.98

6-1

COVER,FRAME CENTER (BLACK) | BODY COLOR:YKV

47311-19K00-YKV

$84.95

6-2

COVER,FRAME CENTER (GRAY) | BODY COLOR:YUD

47311-19K00-YUD

$84.95

6-3

COVER,FRAME CENTER (SILVER) | BODY COLOR:QKA

47311-19K00-QKA

$94.83

7

CUSHION, FRAME COVER CTR

47312-19K00

$6.75

8-1

COVER,FRAME LOW (BLACK) | BODY COLOR:YKV

47321-19K00-YKV

$144.38

8-2

COVER,FRAME LOW (GRAY) | BODY COLOR:YUD

47321-19K00-YUD

$116.40

8-3

COVER,FRAME LOW (SILVER) | BODY COLOR:QKA

47321-19K00-QKA

$133.33

9

COVER, FRAME FRONT

47351-19K00

$52.52

10

COVER,FOOTBOARD RR RH

48125-19K00

$29.13

11

COVER,FOOTBOARD RR LH

48126-19K00

$29.13

12

BOLT (6X12)

09111-06107

$2.60

13

SCREW (5X13)

09139-05091

$2.03

14

NUT (M5)

09148-05052

$3.37

15

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

16

CLIP

09409-06328

$3.23

17

CLIP (7.6X25.7)

09409-08308

$2.26

18

CLIP (7.6X25.7)

09409-08308

$2.26

19

CLIP (10.5X14.3)

09409-08326

$2.48

20

CLIP (10.5X14.3)

09409-08326

$2.48

21

SCREW

03541-0512A

$1.49

22

SCREW

03541-0512A

$1.49
