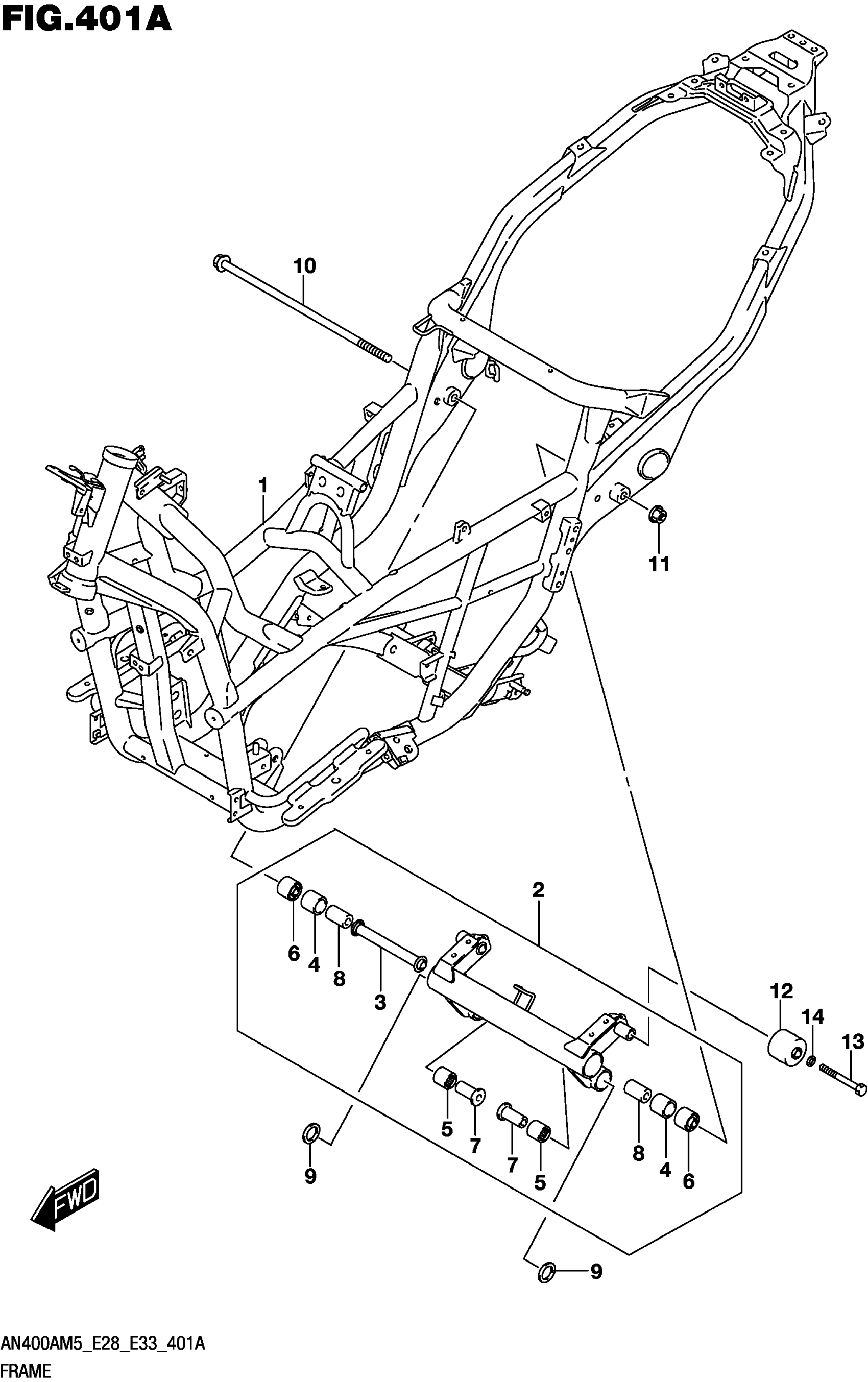

Suzuki AN400AM5 (2025) FRAME Diagram

#

Description
Price

1

FRAME

41100-19K10

$1,777.38

2

BRACKET SET,CRANKCASE

41180-19812

$366.33

3

.SPACER,CRANKCASE BRKT CTR

42610-05H00

Unavailable

4

.BEARING (25X33X30)

09263-25063

Unavailable

5

.BEARING

09263-20120

$22.46

6

.BUSH

09319-12065

$19.33

7

.SPACER,CRANKCASE BRKT ENG

41214-14F10

Unavailable

8

.SPACER,CRANKCASE BRKT,BRG

41213-14F00

Unavailable

9

WASHER (12.5X35X3.2)

09160-12044

$4.03

10

BOLT (12X440)

09103-12086

Unavailable

11

NUT

08319-3112A

$3.76

12

CUSHION,SWING STOP

41185-14F00

Unavailable

13

BOLT (12X62)

09103-12065

Unavailable

14

WASHER

08322-0112B

$2.62
