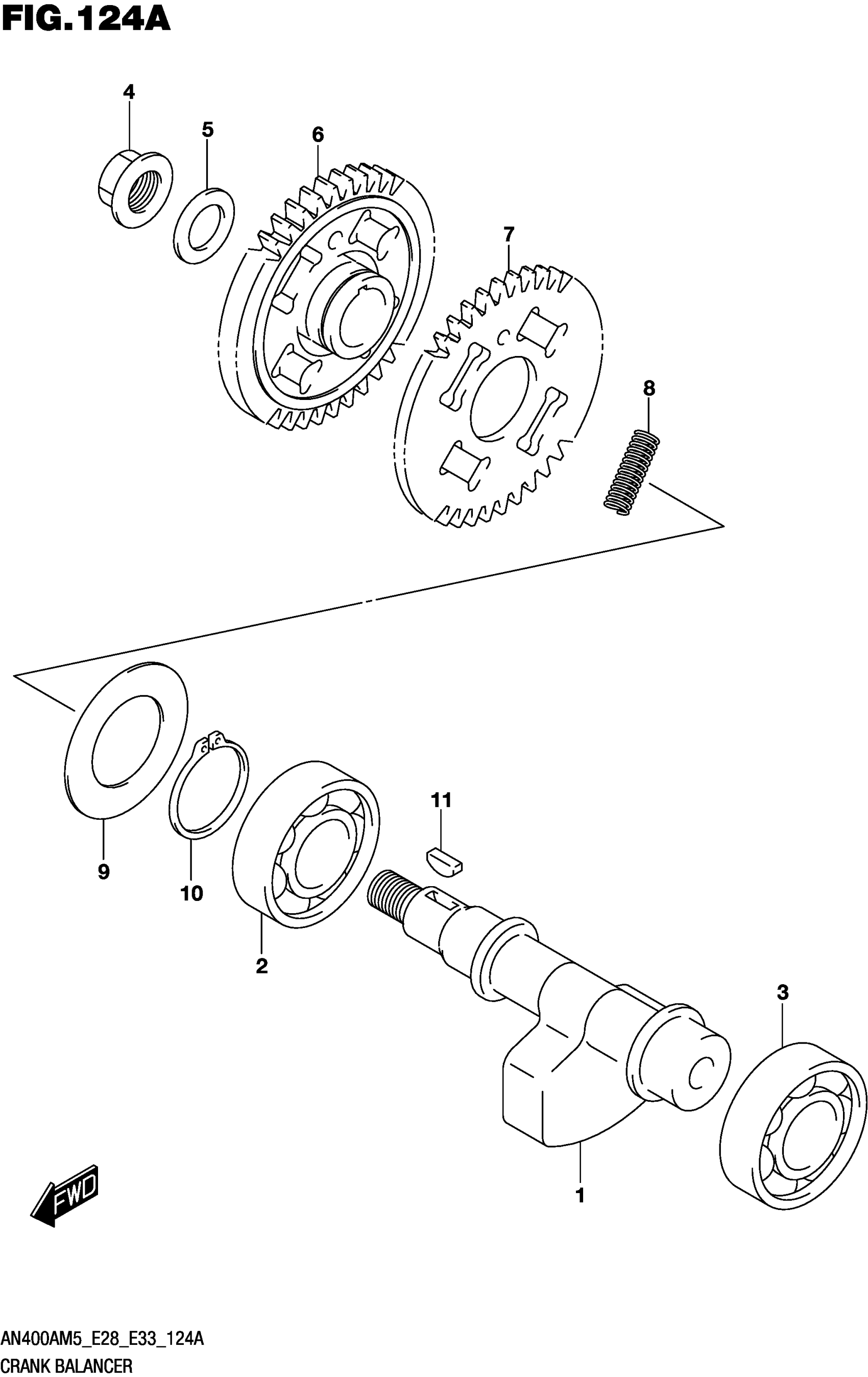

Suzuki AN400AM5 (2025) CRANK BALANCER Diagram

#

Description
Price

1

BALANCER,CRANK

12651-05H00

Unavailable

2

BEARING (20X47X14)

09262-20121

$33.92

3

BEARING

09262-22046

$57.25

4

NUT

08316-1012A

$2.26

5

WASHER

08211-12283

$2.12

6

GEAR, DRIVEN NO.1

12666-05H10

$118.77

7

GEAR,CRANK BAL DRIVEN NO.2 (N | :40)

12667-05H00

Unavailable

8

SPRING

09440-07077

Unavailable

9

WASHER

08211-28482

Unavailable

10

CIRCLIP

08331-31289

$2.19

11

KEY (B:4,D:16,H6.5)

09420-04008

$3.42
