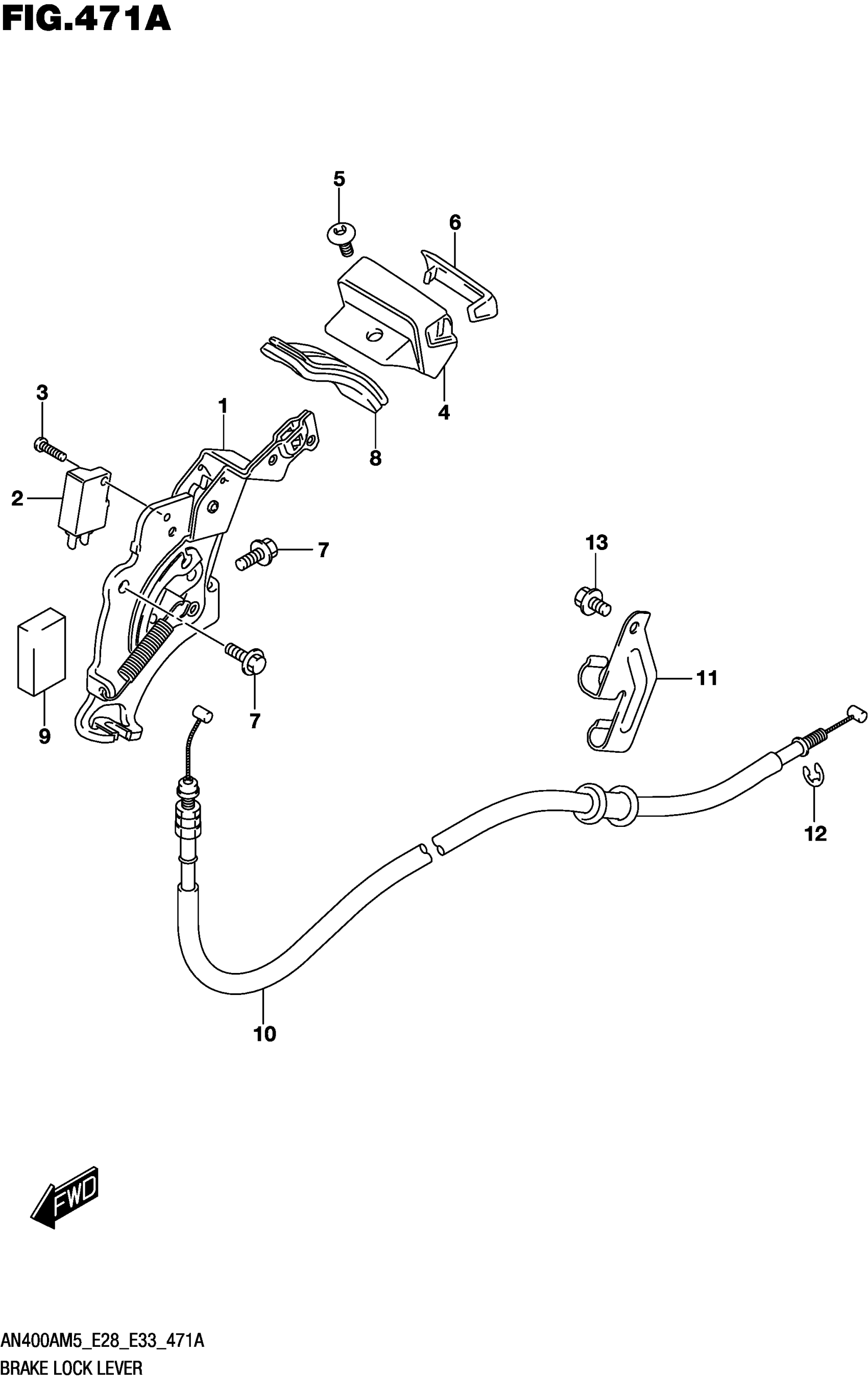

Suzuki AN400AM5 (2025) BRAKE LOCK LEVER Diagram

#

Description
Price

1

LEVER,BRAKE LOCK

57810-05H00

Unavailable

2

SWITCH ASSY,BRAKE LOCK

57860-05H01

Unavailable

3

SCREW,BRAKE LOCK SW

57852-10G00

Unavailable

4

KNOB, BRAKE LOCK

57820-19K00

$60.32

5

SCREW (5X13)

09139-05086

$6.47

6

GARNISH, BRAKE LOCK KNOB

57821-19K00

Unavailable

7

BOLT

01550-0616A

$1.97

8

GROMMET,LEVER SEAL

57951-05H00

$10.73

9

CUSHION,BRAKE LOCK

57851-05H00

$4.72

10

CABLE, BRAKE LOCK

58810-19K00

$66.33

11

CLAMP, BRAKE LOCK CABLE

58621-19K00

$12.13

12

STOPPER,BRAKE LOCK CABLE

58822-10G00

Unavailable

13

BOLT

01547-0612A

$2.03
