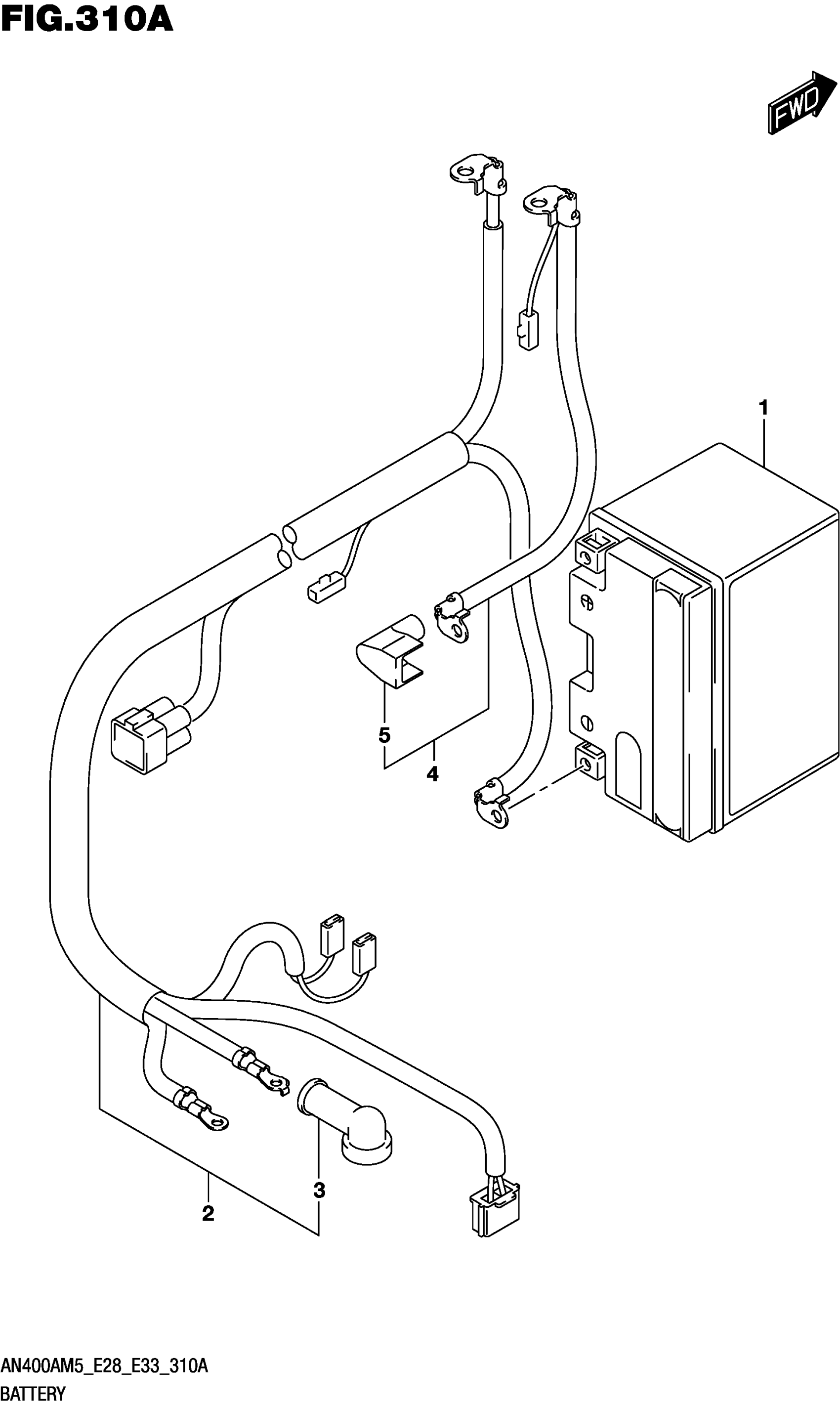

Suzuki AN400AM5 (2025) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (FT12A-BS,12V10AH) | FTZ9-BS, 12V9AH This part replaces 33630-05H01.

33610-14G11

$120.22

2

WIRE,STARTER MOTOR LEAD

33810-19K10

$131.82

3

.CAP,STARTER MOTOR LEAD

31861-48B10

$6.55

4

WIRE,BATTERY PLUS LEAD

33820-19K10

$22.48

5

.CAP,BATTERY PLUS TERMINAL

33624-04K00

$8.12
