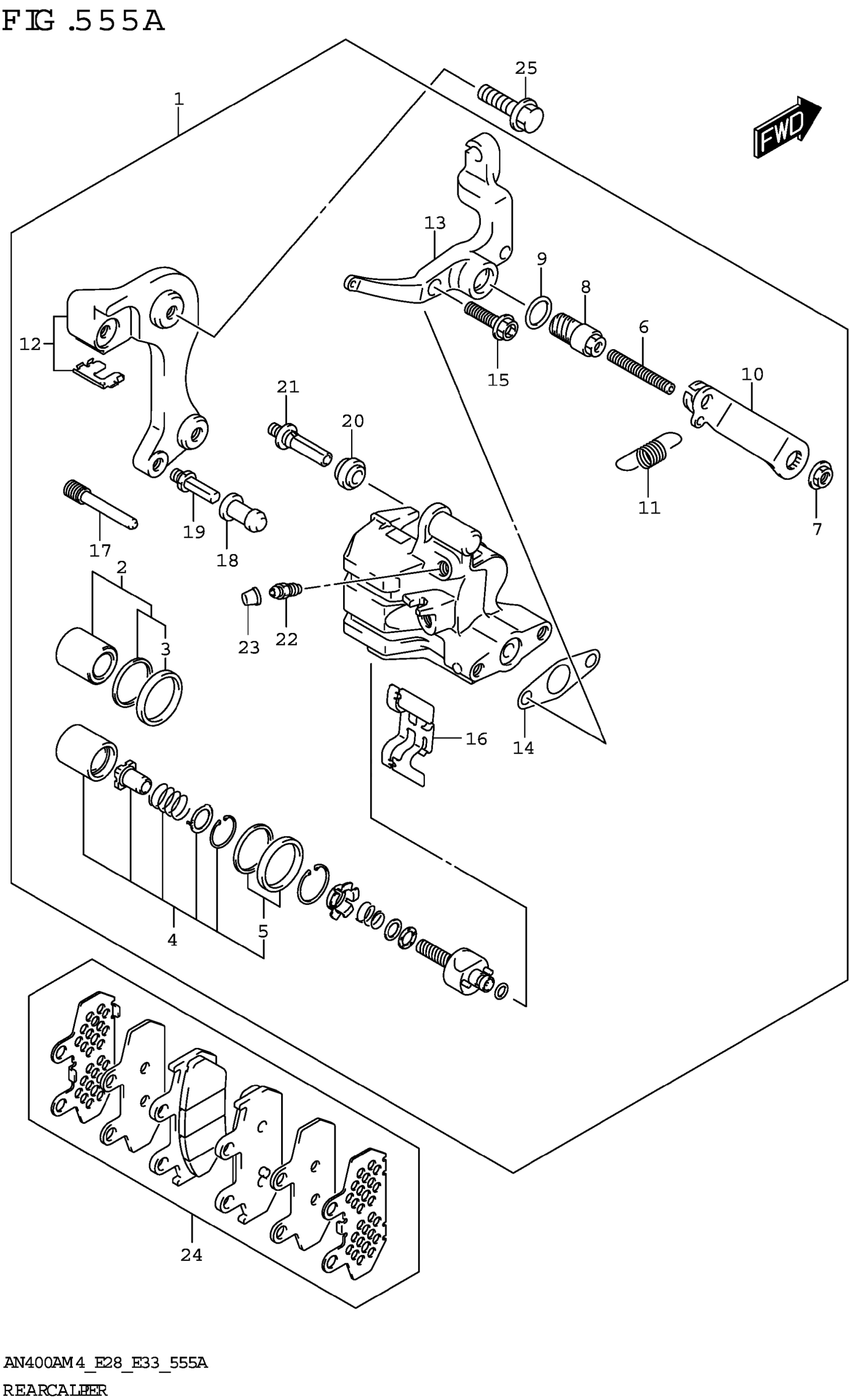

Suzuki AN400AM4 (2024) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,RR

69100-05H31-999

$553.85

2

.PISTON SET

69100-43810

$36.64

3

..SEAL SET,PISTON

69100-36810

$9.03

4

.PISTON SET

69100-10830

$46.50

5

..SEAL SET,PISTON

69100-36810

$9.03

6

.BOLT

69127-10G00

$17.43

7

.NUT

69123-14F40

$6.55

8

.SHAFT

69124-10G00

Unavailable

9

.O-RING

69122-14F40

Unavailable

10

.ARM

69125-05H00

$20.43

11

.SPRING,RETURN

69128-14F00

$6.30

12

.BRACKET

69150-05H10

Unavailable

13

.PARKING

69120-05H10

Unavailable

14

.PACKING

69126-14F40

$5.83

15

.BOLT (8X25)

69121-14F00

Unavailable

16

.SPRING,PAD

69115-10G00

$18.35

17

.PIN,HANGER

59345-13E00

$14.34

18

.BOOT

59386-13A00

$7.95

19

.PIN

59382-14500

$8.95

20

.BOOT

59303-14500

$5.52

21

.PIN

59305-27C00

$23.48

22

.BLEEDER

59121-01A00

$8.73

23

.CAP,BLEEDER

59122-46H00

$4.43

24

PAD & SHIM SET

69102-05890

$55.79

25

BOLT

01550-0830A

$3.04
