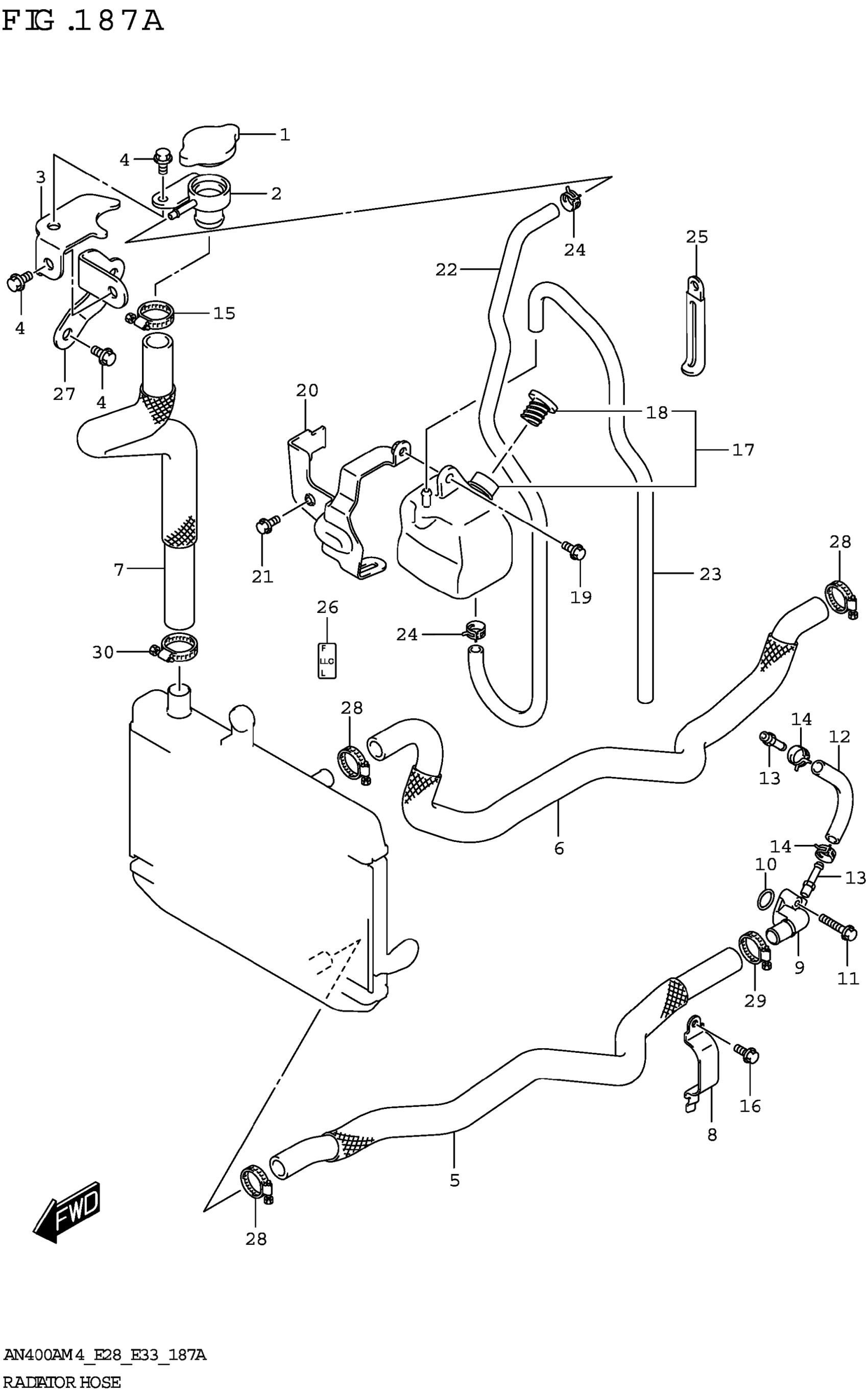

Suzuki AN400AM4 (2024) RADIATOR HOSE Diagram

#

Description
Price

1

CAP,RADIATOR (1.1)

17730-08J00

$42.50

2

CONDUCTION,RDTR

17791-24D00

$61.15

3

BRACKET, CONDUCTION NO.2

17790-19K00

$12.58

4

BOLT

01550-0610A

$1.97

5

HOSE,RADIATOR OUTLET

17852-19K10

$45.33

6

HOSE,RADIATOR INLET

17851-19K10

$53.48

7

HOSE, CONDUCTION

17855-19K00

$46.08

8

PLATE,WATER HOSE CLAMP

17859-05H00

Unavailable

9

CONNECTOR, WATER INLET

17861-05H01

$33.50

10

O-RING (D:2.4,ID:17.8)

09280-18004

$5.18

11

BOLT

01547-0630A

$2.32

12

HOSE (7.5X14.5X600)

09356-75141-600

Unavailable

13

UNION

09362-09011

$8.28

14

CLIP

09401-12414

$3.26

15

CLAMP

09402-28513

$6.88

16

BOLT

01550-0616A

$1.97

17

TANK ASSY,RESERVOIR

17910-05H00

Unavailable

18

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

19

BOLT (6X12)

09111-06085

$4.54

20

BRACKET,RSVR TANK

17920-05H00

Unavailable

21

BOLT

01547-0616A

$2.03

22

HOSE,RESERVOIR TANK INLET

17981-10G01

$12.67

23

HOSE,RSVR TANK OVFL

17982-19K01

$13.82

24

CLIP (ID:8.6)

09401-08411

$1.78

25

CLAMP (L:80)

09404-06030

Unavailable

26

LABEL,RESERVOIR TANK LEVEL

17919-05H00

$3.28

27

BRACKET, CONDUCTION NO.1

17780-19K00

$12.58

28

CLIP

09401-20407

$2.68

29

CLIP

09401-22407

$3.52

30

CLAMP

09401-24002

$4.18
