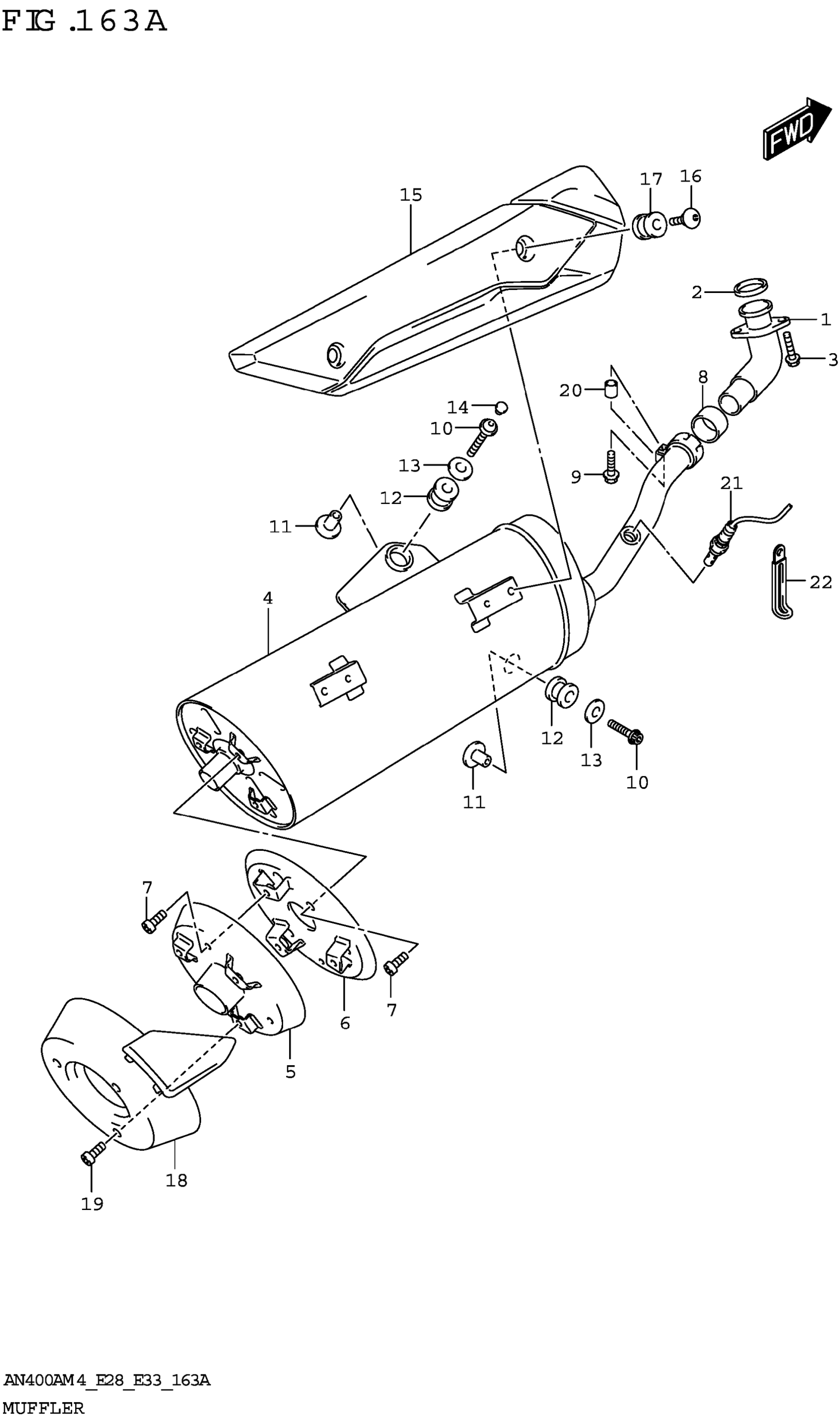

Suzuki AN400AM4 (2024) MUFFLER Diagram

#

Description
Price

1

PIPE,EXH

14150-19K10

$267.18

2

.GASKET,EXHAUST

14181-18C00

$7.22

3

BOLT

07120-0835A

$3.55

4

BODY,MUFFLER

14310-19K10

$2,730.73

5

STAY,MUFFLER RR COVER

14760-05H01

Unavailable

6

STAY, RR COVER NO.2

14770-05H01

Unavailable

7

BOLT

09106-06140

$3.20

8

CONNECTOR,MUF JOINT

14771-05H01

$23.19

9

BOLT (8X35)

09106-08197

$4.18

10

BOLT

07120-0845B

$3.91

11

SPACER (8.6X12X24.2)

09180-08152

$5.83

12

CUSHION (12X30X24)

09320-12048

$5.11

13

WASHER (8.5X28X1.6)

09160-08157

$2.95

14

CAP

09250-06016

$1.96

15

COVER, MUFFLER

14780-19K00

$139.33

16

SCREW (6X20)

09139-06211

$3.44

17

CUSHION

09320-08070

$11.57

18

COVER,MUF RR (BLACK)

14790-19K01-YAD

$89.23

19

BOLT

09106-06138

$3.25

20

SPACER,MUFFLER

14458-06H00

$7.05

21

SENSOR,OXYGEN

18213-19K10

$242.85

22

CLAMP (L:45)

09404-06429

$1.83
