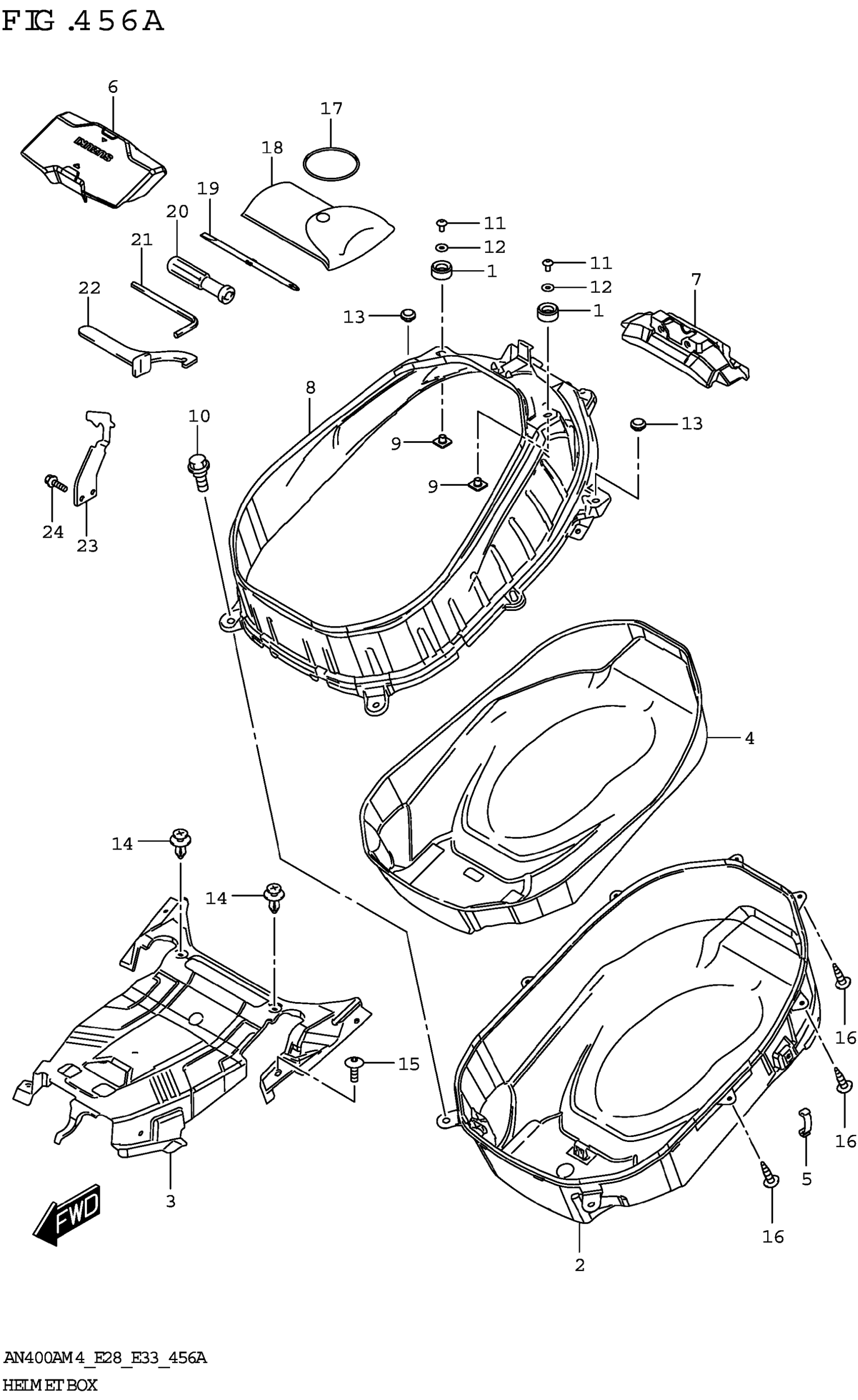

Suzuki AN400AM4 (2024) HELMET BOX Diagram

#

Description
Price

1

CUSHION,HELMET BOX UPR

45149-04A00

$3.59

2

BOX,HELMET NO.1

92211-19K00

$78.42

3

COVER,HELMET BOX FRONT

92212-19K00

$66.33

4

MAT,HELMET BOX

92213-19K00

Unavailable

5

CLAMP,HELMET BOX

92214-14G00

$4.18

6

COVER,HELMET BOX

92214-19K00

$24.23

7

COVER,HELMET BOX REAR

92215-19K00

$11.65

8

BOX,HELMET NO.2

92221-19K00

$81.38

9

NUT,HELMET BOX

92222-10G01

$6.47

10

BOLT (6X17.8)

09111-06072

$2.03

11

SCREW (6X12)

09139-06215

$2.72

12

WASHER (6.5X16X1.2)

09160-06019

$1.49

13

CUSHION

09329-10001

$2.12

14

CLIP This part replaces 09409-06322.

09409-06322-5PK

$3.10

15

CLIP (7.6X25.7)

09409-08308

$2.26

16

SCREW

03541-0516A

$1.49

17

O RING(D:3.5,ID This part replaces 09280-63003.

09280-61004

$2.60

18

BAG,TOOL

09811-00311

Unavailable

19

DRIVER

09814-00015

$3.70

20

GRIP,DRIVER

09814-00016

$4.22

21

SPANNER,HEXAGON (4)

09816-00103

$6.17

22

CLAMP,WRENCH

09822-00005

$15.16

23

HOLDER,HELMET RH

95720-05H00

Unavailable

24

BOLT

01550-0612A

$1.97
