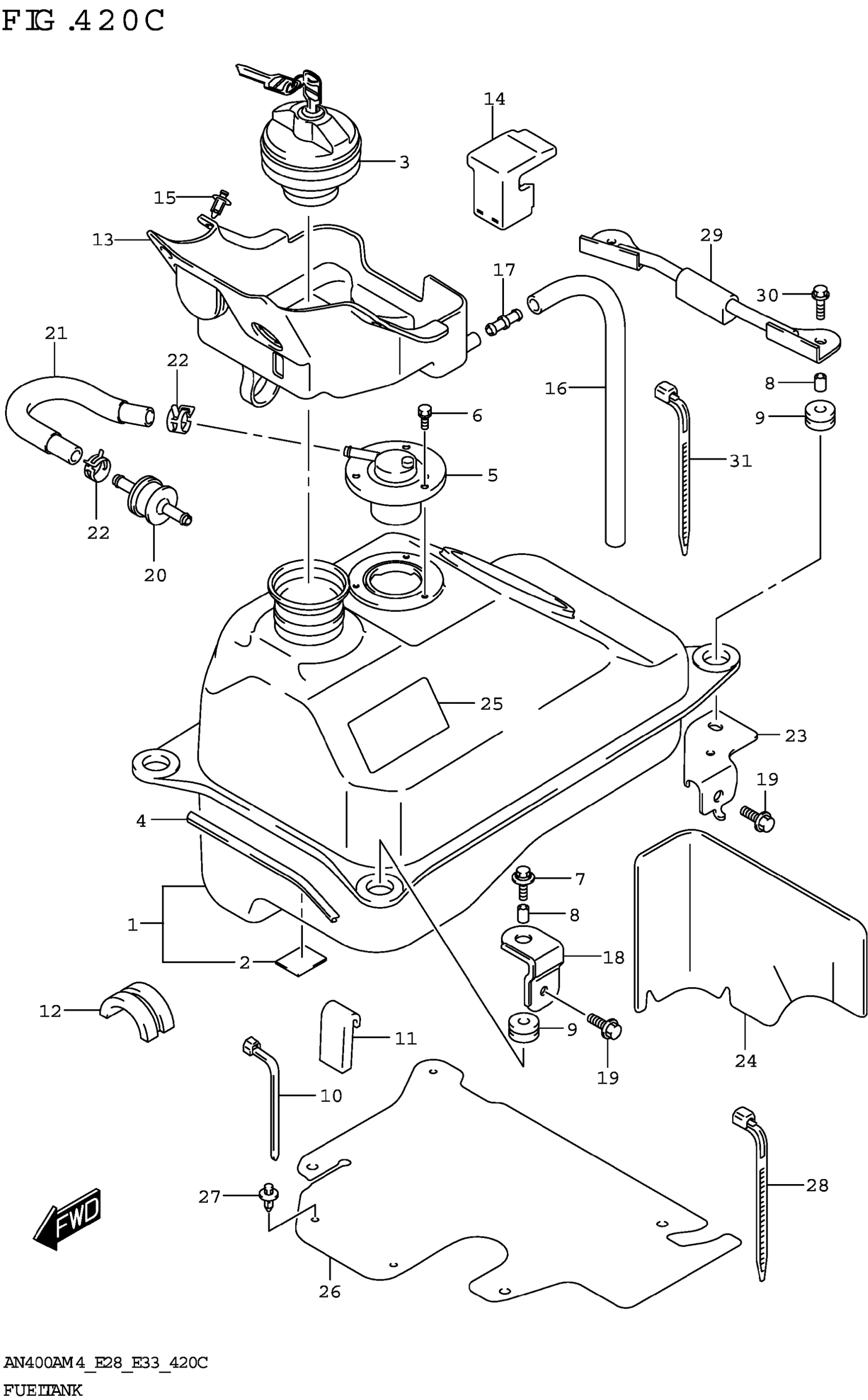

Suzuki AN400AM4 (2024) FUEL TANK (E28) Diagram

#

Description
Price

1

TANK ASSY,FUEL

44110-19K11

$698.45

2

.CUSHION,FUEL TANK

44542-19K00

$6.75

3

CAP SET,FUEL TANK

44200-14840

$175.18

4

MOLDING,FUEL TANK (L:110)

44552-24B00

$14.08

5

VALVE,FUEL CUT

89480-52DA0

$63.60

6

BOLT This part replaces 09117-05003.

01570-0510B

$2.53

7

BOLT (6X25)

09116-06147

$3.20

8

SPACER (6.5X9X12.5)

09180-06267

$4.10

9

CUSHION,FUEL TANK SIDE

44512-04F01

$3.86

10

CLAMP This part replaces 09407-20405.

09407-25402

$4.64

11

CUSHION,FUEL TANK,LWR LH

44541-14F00

Unavailable

12

CUSHION,FUEL TANK LWR

44541-14F11

$4.62

13

TRAY,FUEL TANK INLET

44260-05H21

$70.87

14

CUSHION,FUEL TRAY

44262-05H01

$12.62

15

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

16

HOSE (7X10.2X540)

09352-70104-540

$5.90

17

JOINT

09367-08001

$4.17

18

BRACKET,FUEL TANK FRONT

44531-05H00

Unavailable

19

BOLT

01550-0612A

$1.97

20

VALVE,2 WAY CHECK

85451-75100

$46.78

21

HOSE,FUEL TANK & CHECK VALVE

44434-05H20

$23.53

22

CLIP (ID:10.5,H:8)

09401-10409

$2.26

23

BRACKET,FUEL TANK REAR LH

44560-05H10

$23.62

24

SHIELD,FUEL TANK HEAT

44191-05H00

Unavailable

25

TAPE,FUEL TANK SIDE

44192-05H00

$27.12

26

SHEET,FUEL TRAY MUDGUARD

44193-19K01

$45.53

27

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

28

CLAMP (L:190)

09407-19401

$3.05

29

BRACKET ASSY,FUEL TANK NO.2

44500-05H02

$75.53

30

BOLT (6X25)

01550-0625A

$1.97

31

CLAMP (L:125)

09407-14403

$2.26
