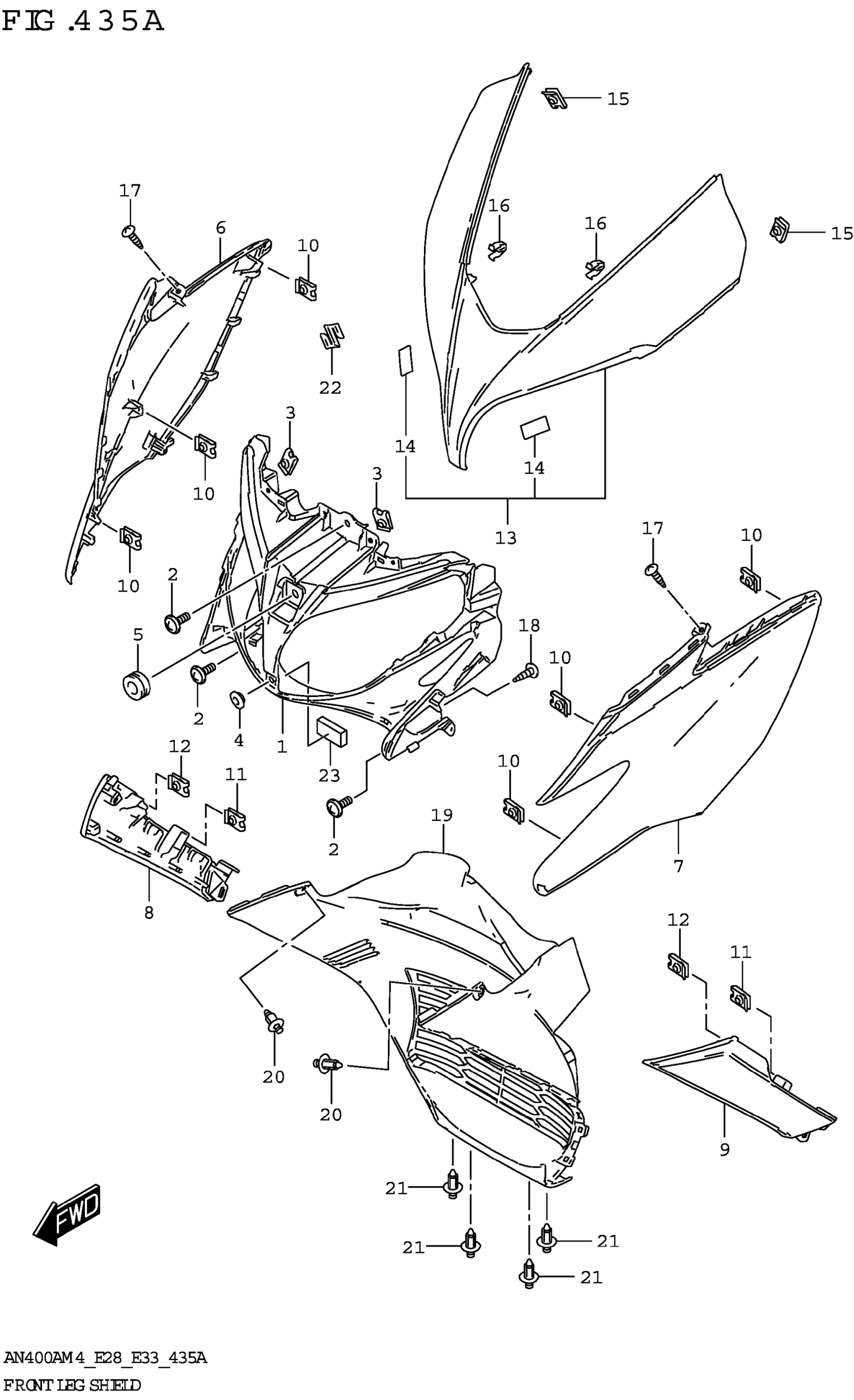

Suzuki AN400AM4 (2024) FRONT LEG SHIELD Diagram

#

Description
Price

1-1

SHIELD,LEG FRONT (BLACK) | BODY COLOR:YKV

48111-19K00-YKV

$280.13

1-2

SHIELD,LEG FRONT (GRAY) | BODY COLOR:YUD

48111-19K00-YUD

$247.25

1-3

SHIELD,LEG FRONT (SILVER) | BODY COLOR:QKA

48111-19K00-QKA

$266.48

2

BOLT (6X16)

09113-06013

$2.43

3

NUT (M5)

09148-05038

$1.97

4

CUSHION (6.5X14X6)

09320-06027

$2.12

5

CUSHION (8X26X7)

09320-08028

$2.80

6-1

SHIELD,LEG FR SIDE,R | BODY COLOR:YKV

48112-19K00-YKV

$140.37

6-2

SHIELD,LEG FR SIDE,R (GRAY) | BODY COLOR:YUD

48112-19K00-YUD

$133.52

6-3

SHIELD,LEG FR SIDE,R (SILVER) | BODY COLOR:QKA

48112-19K00-QKA

$133.52

7-1

SHIELD,LEG FR SIDE,L | BODY COLOR:YKV

48113-19K00-YKV

$144.57

7-2

SHIELD,LEG FR SIDE,L (GRAY) | BODY COLOR:YUD

48113-19K00-YUD

$140.37

7-3

SHIELD,LEG FR SIDE,L (SILVER) | BODY COLOR:QKA

48113-19K00-QKA

$133.52

8-1

SHIELD,LEG SIDE UPR,R | BODY COLOR:YKV

48114-19K00-YKV

$104.52

8-2

SHIELD,LEG SIDE UPR,R (GRAY) | BODY COLOR:YUD

48114-19K00-YUD

$78.03

8-3

SHIELD,LEG SIDE UPR,R (SILVER | BODY COLOR:QKA

48114-19K00-QKA

$89.65

9-1

SHIELD,LEG SIDE UPR,L | BODY COLOR:YKV

48115-19K00-YKV

$104.52

9-2

SHIELD,LEG SIDE UPR,L (GRAY) | BODY COLOR:YUD

48115-19K00-YUD

$93.95

9-3

SHIELD,LEG SIDE UPR,L (SILVER | BODY COLOR:QKA

48115-19K00-QKA

$89.65

10

NUT (M5)

09148-05038

$1.97

11

NUT (M5)

09148-05038

$1.97

12

NUT (M5)

09148-05052

$3.04

13-1

COVER,FR LEG SHIELD | BODY COLOR:YKV

48130-19K00-YKV

$311.28

13-2

COVER,FR LEG SHIELD (GRAY) | BODY COLOR:YUD

48130-19K00-YUD

$279.83

13-3

COVER,FR LEG SHIELD (SILVER) | BODY COLOR:QKA

48130-19K00-QKA

$266.22

14

.CUSHION (20X40X3)

44294-14H00

$3.77

15

NUT (M5)

09148-05052

$3.04

16

CLIP (10.5X14.3)

09409-08326

$2.45

17

SCREW

03541-0516A

$1.37

18

SCREW

03541-0516A

$1.37

19

SHIELD,LEG LOWER

48137-19K00

$144.63

20

CLIP

09409-06329

$2.80

21

CLIP (7.6X25.7)

09409-08308

$1.97

22

EMBLEM,S

68641-26J00

$17.00

23

CUSHION,FR LEG SHIELD

48116-19K00

$4.28
