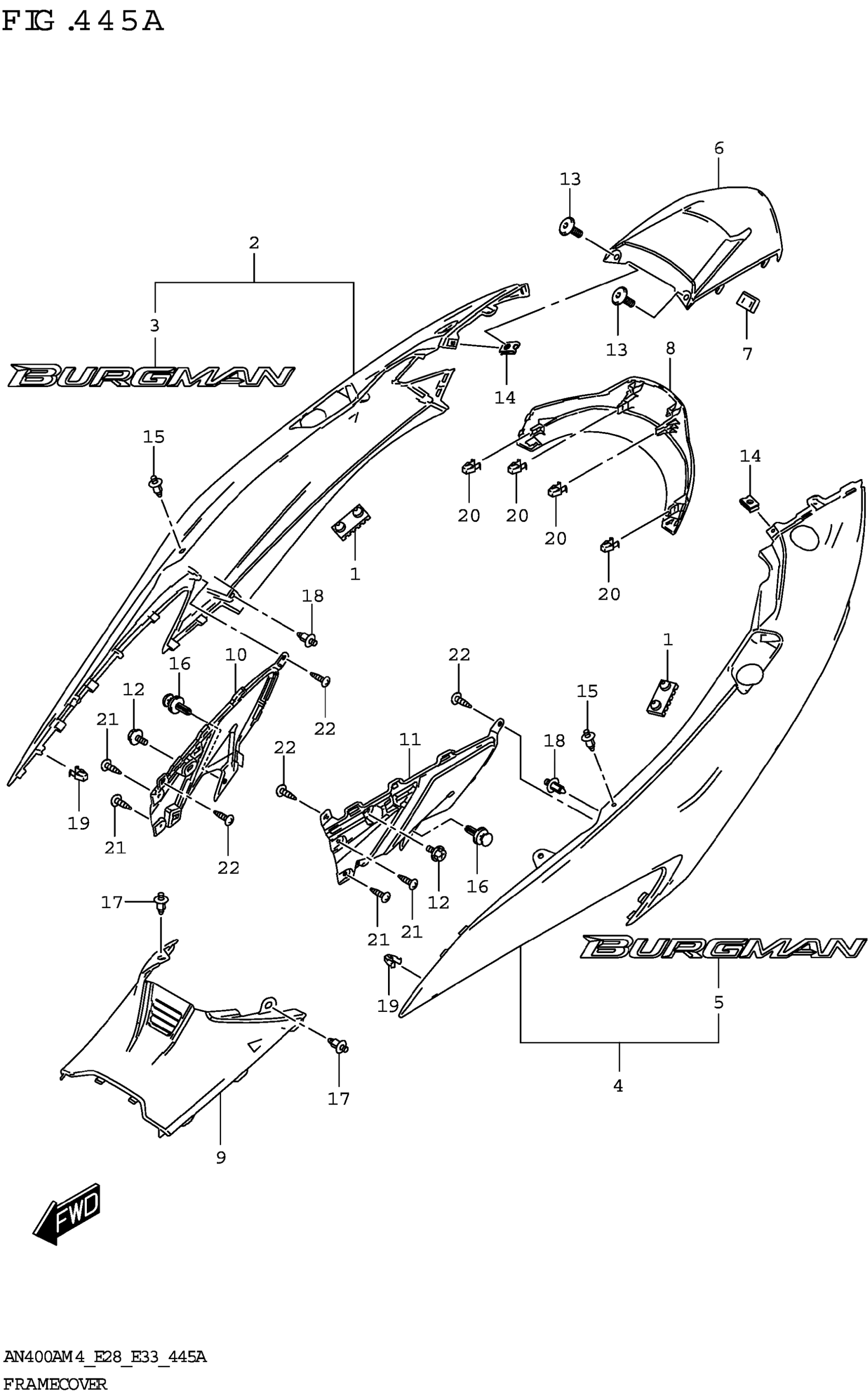

Suzuki AN400AM4 (2024) FRAME COVER Diagram

#

Description
Price

1

CUSHION,SEAT (40X20X6)

45149-12C00

$7.48

2-1

COVER,FRAME RH (BLACK) | BODY COLOR:YKV

47110-19K00-YKV

$291.03

2-2

COVER,FRAME,R (GRAY) | BODY COLOR:YUD

47110-19K00-YUD

$243.62

2-3

COVER,FRAME,R (SILVER) | BODY COLOR:QKA

47110-19K00-QKA

$268.77

3

EMBLEM,FRAME CO This part replaces 68131-05H10.

68131-12JA1

$26.52

4-1

COVER,FRAME LH (BLACK) | BODY COLOR:YKV

47210-19K00-YKV

$306.80

4-2

COVER,FRAME,L (GRAY) | BODY COLOR:YUD

47210-19K00-YUD

$208.18

4-3

COVER,FRAME,L (SILVER) | BODY COLOR:QKA

47210-19K00-QKA

$268.77

5

EMBLEM,FRAME CO This part replaces 68131-05H10.

68131-12JA1

$26.52

6-1

COVER,FRAME CENTER (BLACK) | BODY COLOR:YKV

47311-19K00-YKV

$95.42

6-2

COVER,FRAME CENTER (GRAY) | BODY COLOR:YUD

47311-19K00-YUD

$95.42

6-3

COVER,FRAME CENTER (SILVER) | BODY COLOR:QKA

47311-19K00-QKA

$106.52

7

CUSHION, FRAME COVER CTR

47312-19K00

$7.62

8-1

COVER,FRAME LOW (BLACK) | BODY COLOR:YKV

47321-19K00-YKV

$162.18

8-2

COVER,FRAME LOW (GRAY) | BODY COLOR:YUD

47321-19K00-YUD

$130.75

8-3

COVER,FRAME LOW (SILVER) | BODY COLOR:QKA

47321-19K00-QKA

$149.77

9

COVER, FRAME FRONT

47351-19K00

$59.27

10

COVER,FOOTBOARD RR RH

48125-19K00

$32.87

11

COVER,FOOTBOARD RR LH

48126-19K00

$32.87

12

BOLT (6X12)

09111-06107

$2.66

13

SCREW (5X13)

09139-05091

$2.01

14

NUT (M5)

09148-05052

$3.04

15

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

16

CLIP

09409-06328

$2.92

17

CLIP (7.6X25.7)

09409-08308

$1.97

18

CLIP (7.6X25.7)

09409-08308

$1.97

19

CLIP (10.5X14.3)

09409-08326

$2.45

20

CLIP (10.5X14.3)

09409-08326

$2.45

21

SCREW

03541-0512A

$1.37

22

SCREW

03541-0512A

$1.37
