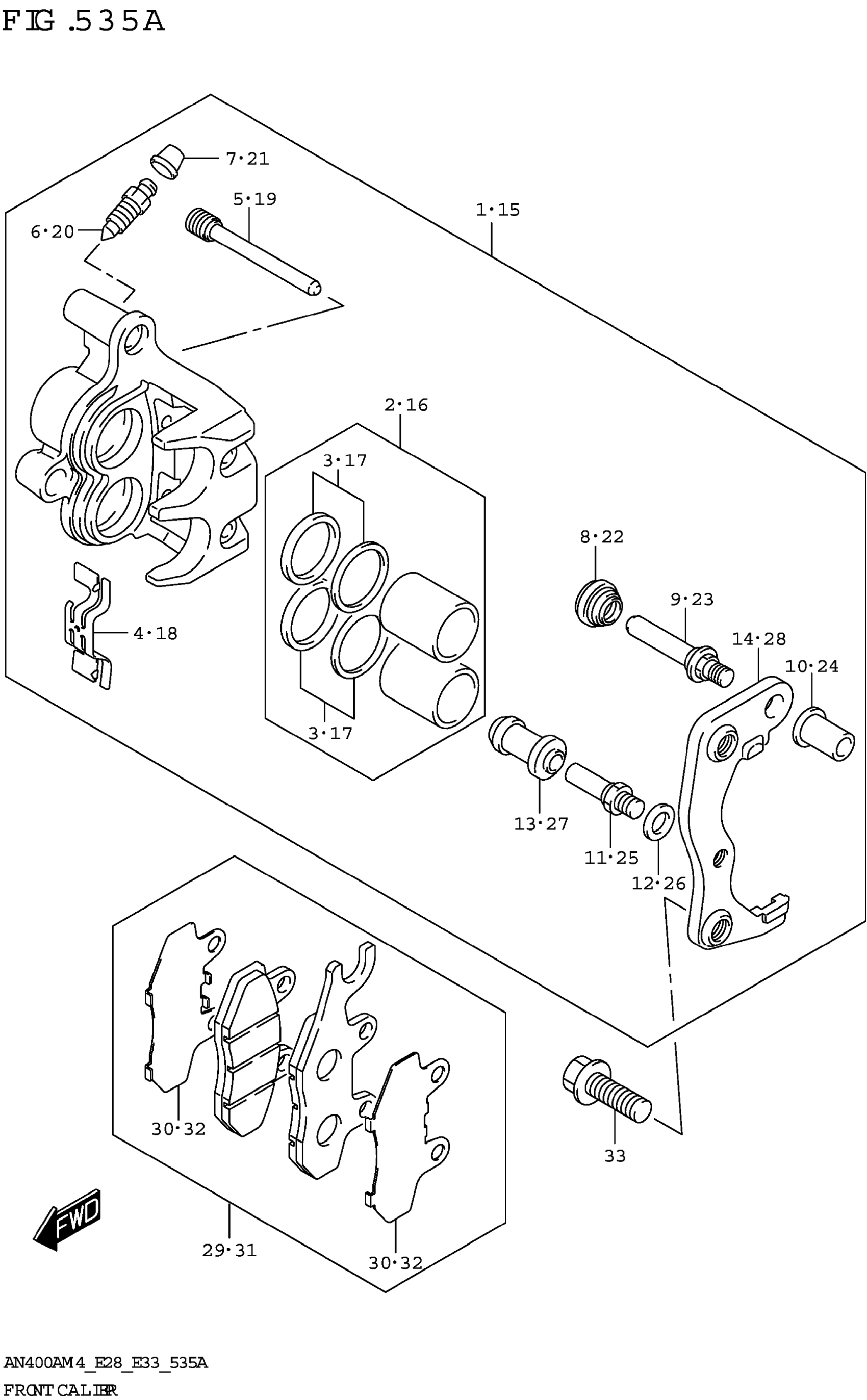

Suzuki AN400AM4 (2024) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FRONT RH

59100-05H10-999

$580.50

2

.PISTON SET

59300-21810

$66.25

3

..SEAL SET,PISTON

59300-21860

$20.15

4

.SPRING,PAD

69115-31D10

$16.48

5

.PIN

59345-14600

$16.25

6

.BLEEDER

59121-01A00

$8.73

7

.CAP,BLEEDER

59122-46H00

$4.43

8

.BOOT

59303-14500

$5.52

9

.PIN

59387-00B20

$18.55

10

.NUT

59388-00B20

$15.16

11

.BOLT

59382-13A00

$7.69

12

.WASHER

59314-13A00

$2.02

13

.BOOT

59386-13A00

$7.95

14

.BRACKET

69151-31D00

Unavailable

15

CALIPER ASSY,FRONT LH

59300-05H10-999

Unavailable

16

.PISTON SET

59300-21810

$66.25

17

..SEAL SET,PISTON

59300-21860

$20.15

18

.SPRING,PAD

69115-31D10

$16.48

19

.PIN

59345-14600

$16.25

20

.BLEEDER

59121-01A00

$8.73

21

.CAP,BLEEDER

59122-46H00

$4.43

22

.BOOT

59303-14500

$5.52

23

.PIN

59387-00B20

$18.55

24

.NUT

59388-00B20

$15.16

25

.BOLT

59382-13A00

$7.69

26

.WASHER

59314-13A00

$2.02

27

.BOOT

59386-13A00

$7.95

28

.BRACKET LH

59351-05H00

Unavailable

29

PAD SET,FRONT BRAKE RH

59100-05820

$52.18

30

.SHIM

69132-31D00

$11.02

31

PAD SET,FRONT BRAKE LH

59100-05830

$61.38

32

.SHIM

69132-31D00

$11.02

33

BOLT (10X20)

01550-1025A

$3.05
