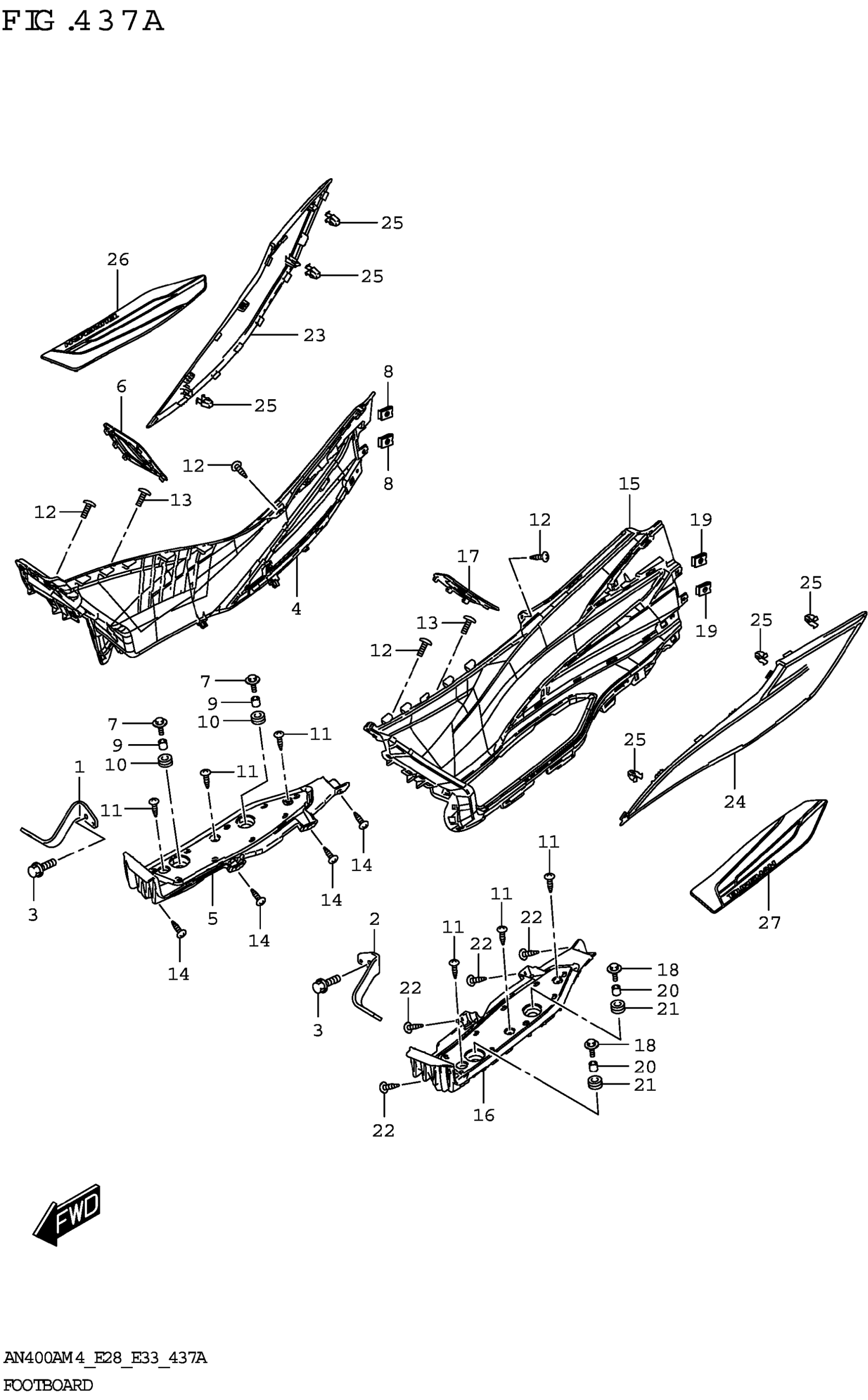

Suzuki AN400AM4 (2024) FOOTBOARD Diagram

#

Description
Price

1

BRACKET, FOOTBOARD RH

48190-19K00

$30.37

2

BRACKET, FOOTBOARD LH

48290-19K00

Unavailable

3

BOLT (8X16)

01550-0816A

$2.32

4

FOOTBOARD, NO.1 RH

48121-19K00

$117.58

5

FOOTBOARD, NO.2 RH

48133-19K00

$36.67

6

FOOTBOARD, NO.3 RH

48135-19K00

$30.37

7

BOLT (6X25)

09116-06131

$2.36

8

NUT (M5)

09148-05038

$1.97

9

SPACER (8.5X12X11)

09180-08189

$2.58

10

CUSHION (11.5X24X12.2)

09320-11022

$4.18

11

SCREW

03541-0512A

$1.49

12

SCREW

03541-0512A

$1.49

13

SCREW

03541-0516A

$1.49

14

SCREW

03541-0516A

$1.49

15

FOOTBOARD, NO.1 LH

48122-19K00

$117.58

16

FOOTBOARD, NO.2 LH

48134-19K00

$36.67

17

FOOTBOARD, NO.3 LH

48136-19K00

$30.37

18

BOLT (6X25)

09116-06131

$2.36

19

NUT (M5)

09148-05038

$1.97

20

SPACER (8.5X12X11)

09180-08189

$2.58

21

CUSHION (11.5X24X12.2)

09320-11022

$4.18

22

SCREW

03541-0516A

$1.49

23

COVER,LEG CENTER RH

48141-19K00

$110.55

24

COVER,LEG CENTER LH

48142-19K00

$110.55

25

CLIP (10.5X14.3)

09409-08326

$2.48

26

MAT, FLOOR FRONT RH

48211-19K00

$63.93

27

MAT, FLOOR FRONT LH

48221-19K00

$63.93
