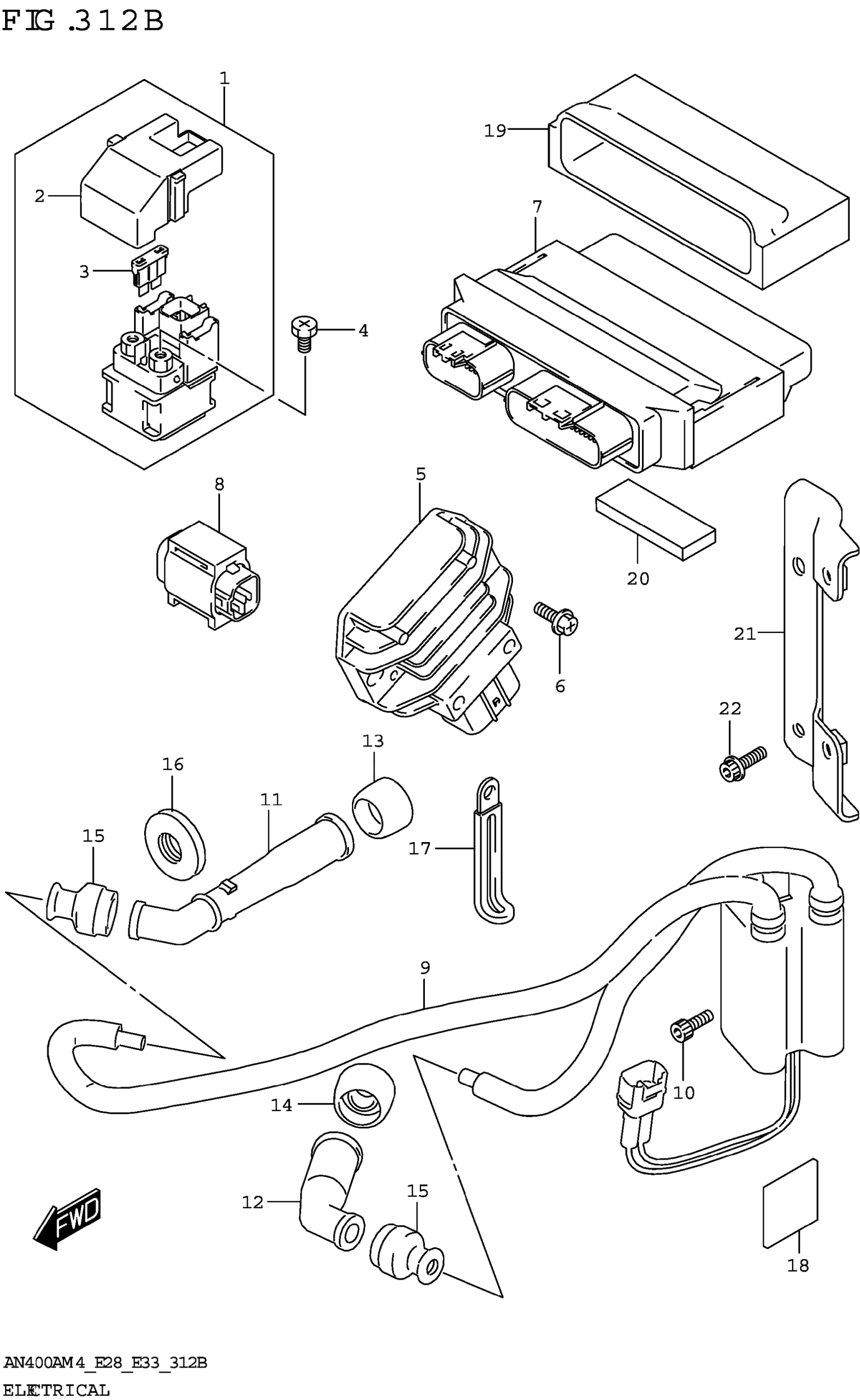

Suzuki AN400AM4 (2024) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR

31800-21E30

$67.32

2

.COVER

31861-47E00

$16.15

3

.FUSE (30A)

09481-30101

$2.26

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY This part replaces 32800-19K02.

32800-19K03

$210.57

6

SCREW

02162-0620C

$1.71

7

HARDWARE,FI CONTROL UNIT

32910-11L00

$754.10

8

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

9

COIL ASSY,IGNITION

33410-19K00

$104.90

10

BOLT

07130-0620A

$2.50

11

CAP,SPARK PLUG

33510-48B10

$31.77

12

CAP ASSY,SPARK PLUG

33510-20E00

$34.60

13

SEAL,SPARK PLUG

33541-23E10

$6.54

14

SEAL,SPARK PLUG CAP

33541-13H10

$6.10

15

SEAL,HIGH TENSION CORD (SIDE)

33542-48H01

$4.37

16

COVER,SPARK PLUG CAP

33543-33E01

$4.54

17

CLAMP (L:45)

09404-06429

$1.83

18

CUSHION,HELMET BOX (60X60X3.0

92213-33G00

$5.99

19

HOLDER,FI CONTROL UNIT

32980-11L00

$13.35

20

CUSHION,FI CONTROL UNIT

33902-19K00

$2.18

21

BRACKET,IGNITION COIL

47420-19K00

$12.08

22

BOLT

07120-0620A

$2.72
