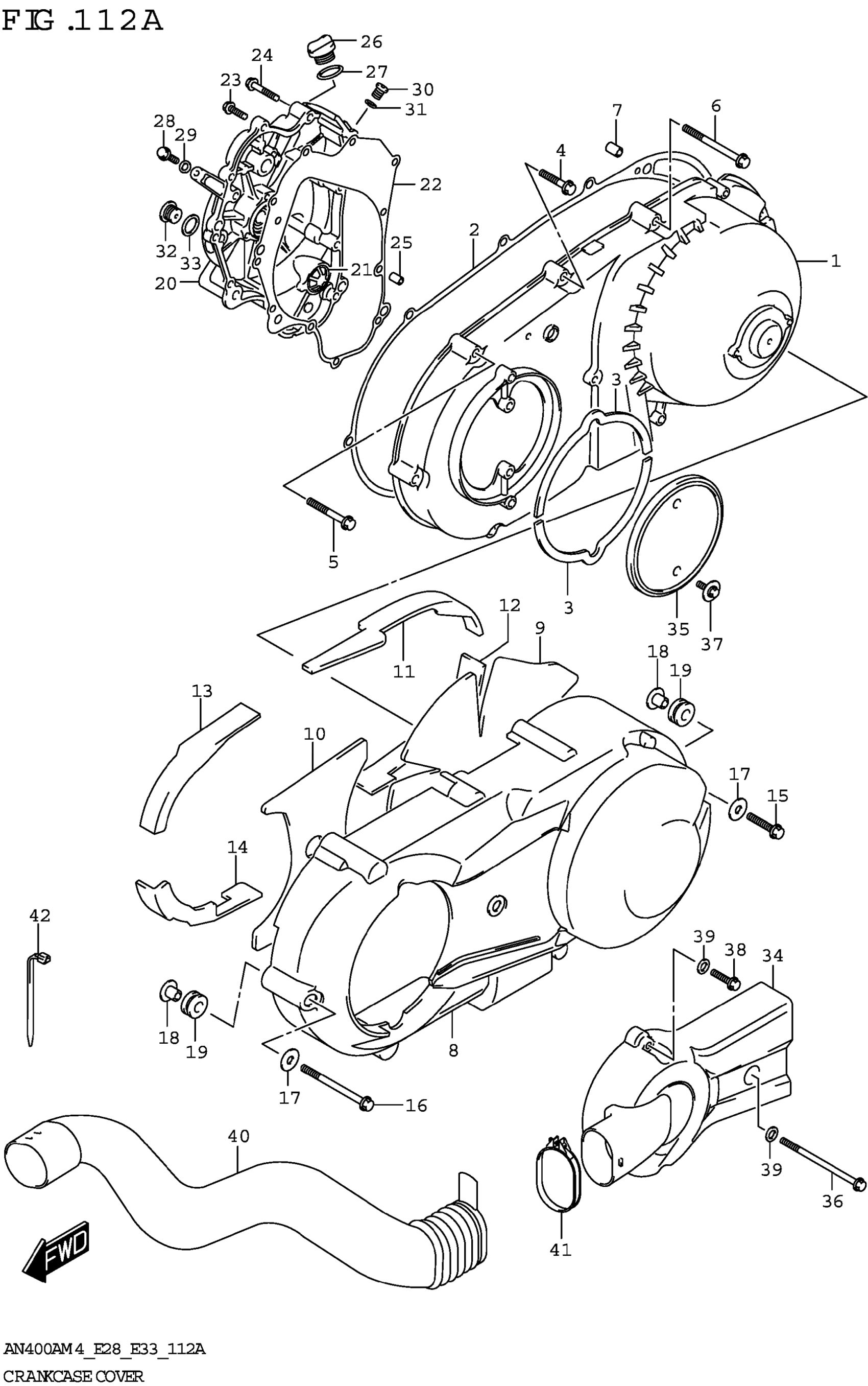

Suzuki AN400AM4 (2024) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH INNER

11341-05H00

$385.72

2

.GASKET,CLUTCH COVER INNER

11482-05H00

$66.08

3

CUSHION,BELT COOLING DUCT

11485-05H10

$3.95

4

BOLT

01547-0630A

$2.32

5

BOLT

01547-0645A

$2.42

6

BOLT

01547-0675A

$3.28

7

PIN (8.5X18X2.3)

04211-09149

$1.65

8

COVER,CLUTCH OUTER

11371-05H41

$130.45

9

CUSHION, COVER NO.1

11486-05H10

$47.50

10

CUSHION, COVER NO.2

11487-05H10

$18.58

11

CUSHION, COVER NO.3

11488-05H10

$12.32

12

CUSHION, COVER NO.4

11489-05H10

$9.42

13

CUSHION,COVER NO.5

11491-05H11

$8.48

14

CUSHION, COVER NO.6

11492-05H10

$10.23

15

BOLT (6X30)

09103-06213

$2.47

16

BOLT

01547-0660A

$2.82

17

WASHER (6.5X18X1.0)

09160-06028

$1.49

18

WASHER (6.3X17X1.6)

09169-06062

$2.50

19

CUSHION (9X18X9.5)

09320-09016

$1.97

20

COVER, MAGNETO

11350-05H20

$280.60

21

.LENS,OIL LEVEL CHECK

11971-33210

$18.20

22

.GASKET,MAGNETO COVER

11483-05H00

$18.75

23

BOLT

01547-0625A

$2.01

24

BOLT

01547-0640A

$2.32

25

PIN (8.5X18X2.3)

04211-09149

$1.65

26

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

27

O-RING (D:3.1,ID:16.8)

09280-17003

$1.65

28

BOLT

01547-0612A

$2.03

29

GASKET (5.8X13X1.2)

09168-06023

$2.35

30

PLUG (10X10)

09248-10010

$4.17

31

GASKET (10X14X3.6)

09168-10002

$2.13

32

PLUG (16X8)

09248-16012

$4.64

33

GASKET (16X22X2)

09168-16002

$1.91

34

DUCT,BELT COOLING

11380-05H50

$43.17

35

FILTER,BELT COOLING

11388-10G10

$22.70

36

BOLT (6X95)

09103-06227

$4.17

37

BOLT (6X16)

09116-06006

$1.86

38

BOLT

01547-0620A

$2.03

39

WASHER

08322-0106A

$1.84

40

HOSE,BELT COOLING DUCT

11383-05H50

$65.23

41

CLAMP,BELT COOLING DUCT

11384-19K00

$11.22

42

CLAMP (L:125)

09407-14403

$2.26
