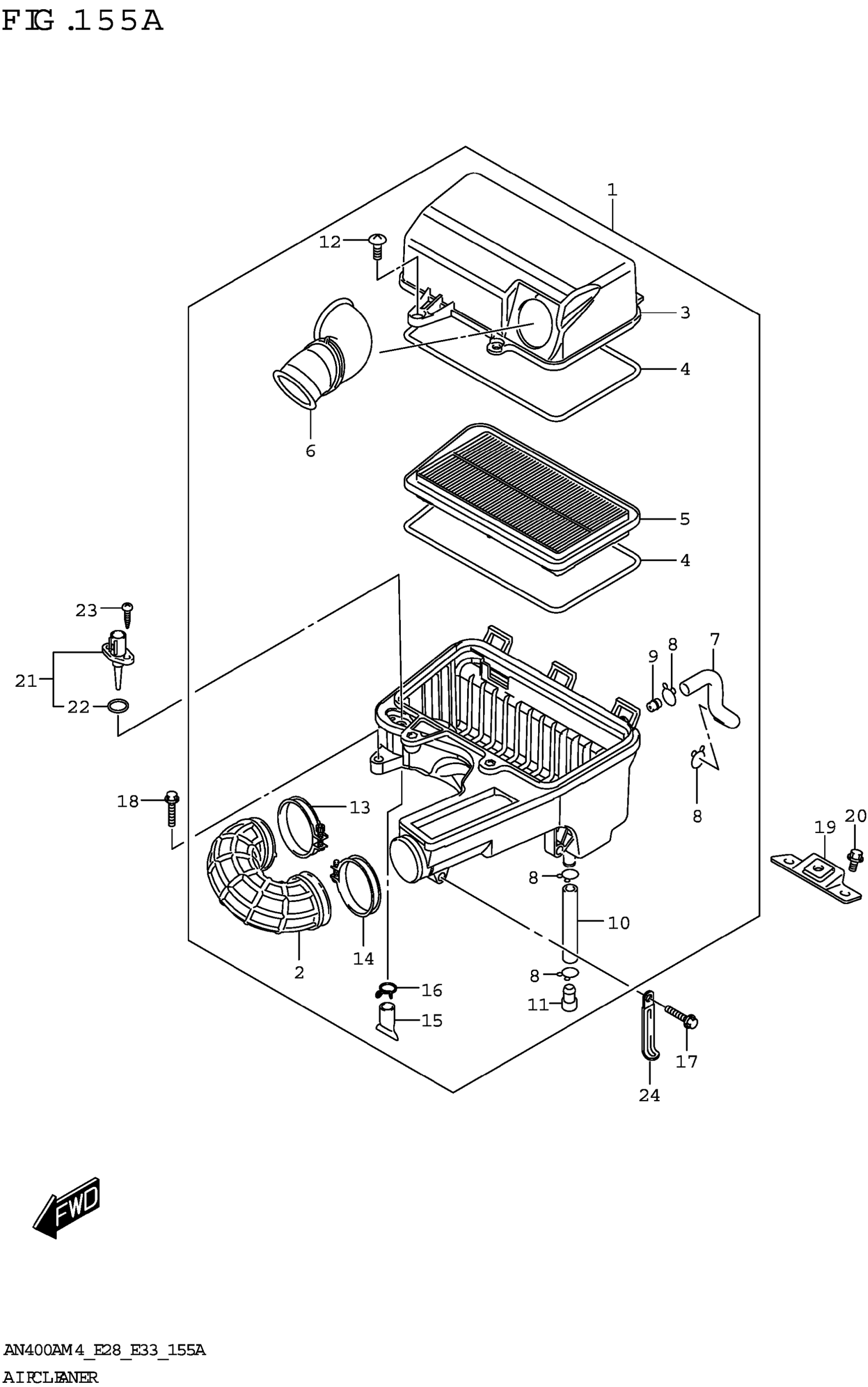

Suzuki AN400AM4 (2024) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-19K10

$243.98

2

.TUBE, OUTLET

13881-19K00

$36.95

3

.CAP

13740-19K00

$38.17

4

.GASKET

13746-19K10

$4.52

5

.FILTER, AIR CLEANER

13780-19K00

$27.76

6

.TUBE, INLET

13891-19K00

Unavailable

7

.TUBE, BREATHER

13853-19K00

$10.78

8

.CLIP

13821-12K00

$3.85

9

.JET,BREATHER

13859-14D41

$4.40

10

.TUBE, DRAIN

13871-19K00

$13.42

11

.STOPPER, DRAIN

13877-19K00

$4.72

12

.SCREW

13837-19K00

$3.08

13

.CLAMP

13170-25D01

$6.60

14

.CLAMP

09402-58208

$5.36

15

.PLUG,DRAIN

13878-19K00

$5.80

16

.CLIP

13821-12K00

$3.85

17

BOLT (6X25)

01550-0625A

$1.97

18

BOLT (6X30)

09116-06103

$3.15

19

BRACKET,AIR CLNR REAR

13760-19K30

$22.48

20

BOLT

01547-0612A

$2.03

21

SENSOR,AIR TEMP

13650-14G10

$52.06

22

.O-RING

13655-14G10

$9.90

23

SCREW

03511-0516A

$1.86

24

CLAMP (L:45)

09404-06429

$1.83
