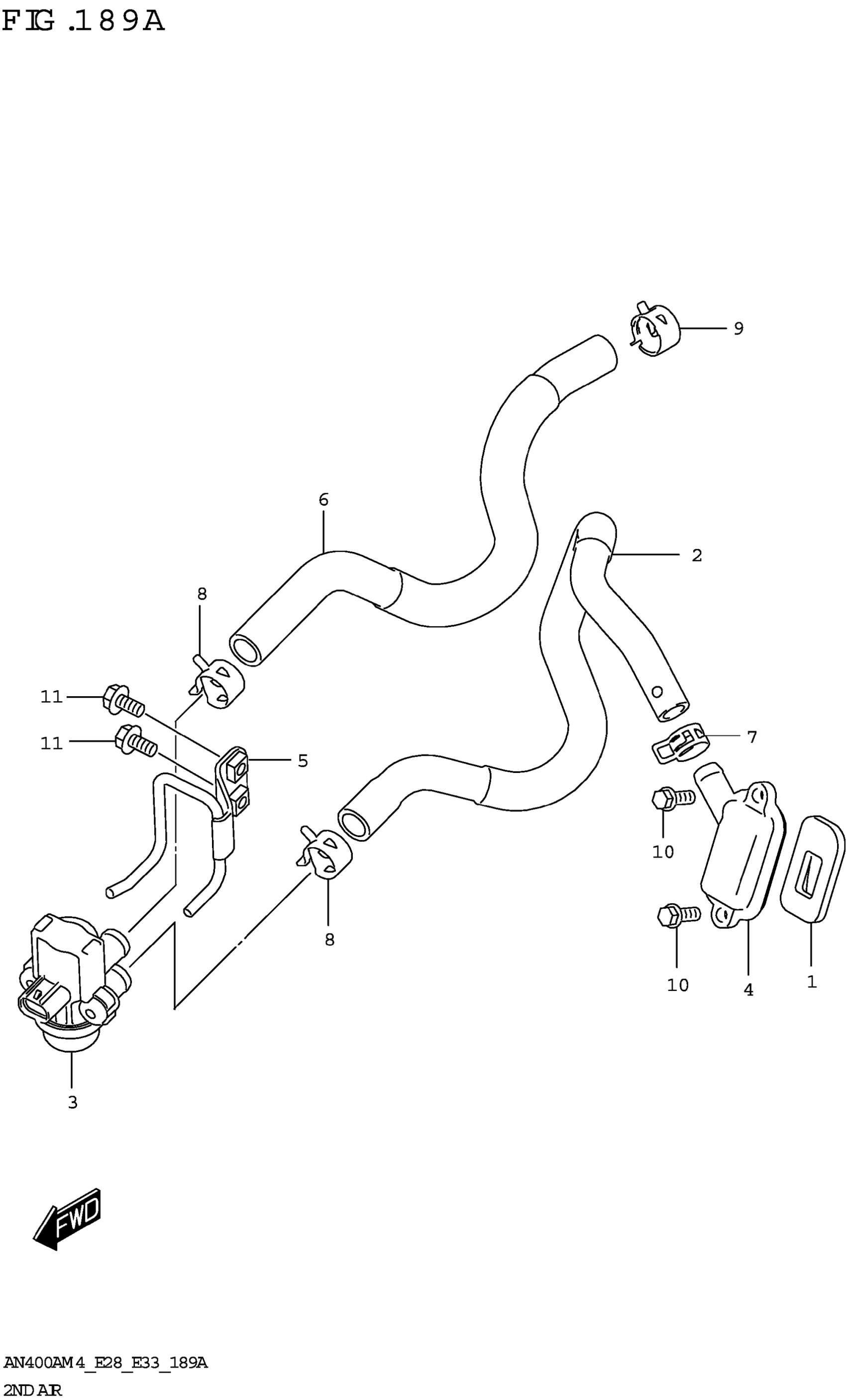

Suzuki AN400AM4 (2024) 2ND AIR Diagram

#

Description
Price

1

VALVE ASSY,2ND AIR REED

18450-28K00

$40.25

2

HOSE,2ND AIR VALVE

18461-19K00

$34.67

3

VALVE ASSY,AIR CUT

18510-29G50

$114.05

4

COVER,2ND AIR REED VALVE

18531-09J30

$26.92

5

BRACKET,2ND AIR VALVE

18610-19K00

$43.78

6

HOSE,2ND AIR CLNR

18711-19K00

$35.75

7

CLAMP

09401-15420

$1.97

8

CLIP

09401-17401

$1.01

9

CLIP

09401-17403

$3.05

10

BOLT

01547-0616A

$2.01

11

BOLT

01550-0612A

$1.97
