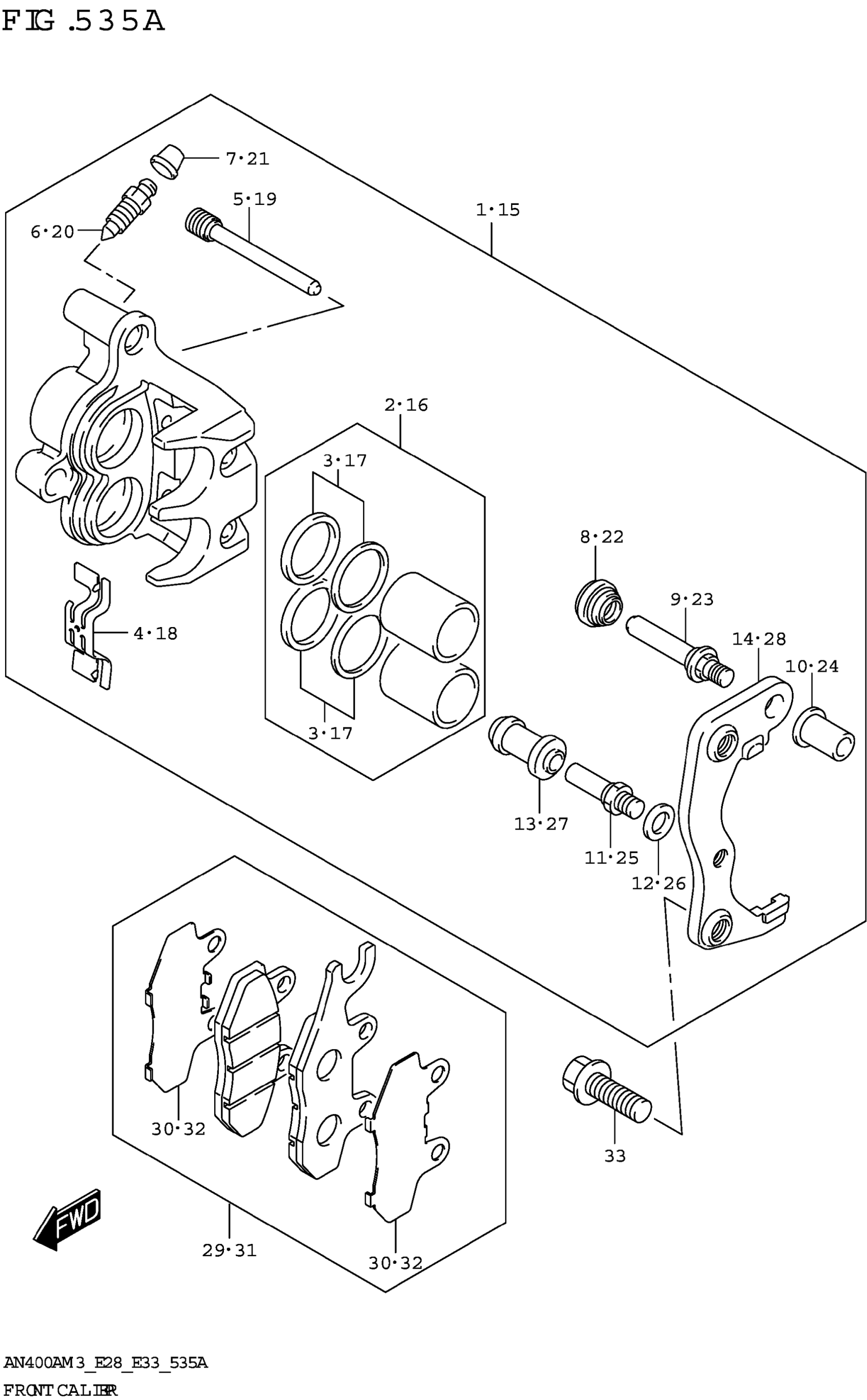

Suzuki AN400AM3 (2023) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FRONT RH

59100-05H10-999

$645.98

2

.PISTON SET

59300-21810

$74.77

3

..SEAL SET,PISTON

59300-21860

$26.75

4

.SPRING,PAD

69115-31D10

$18.60

5

.PIN

59345-14600

$18.33

6

.BLEEDER

59121-01A00

$7.99

7

.CAP,BLEEDER

59122-46H00

$4.17

8

.BOOT

59303-14500

$5.06

9

.PIN

59387-00B20

$17.46

10

.NUT

59388-00B20

$20.13

11

.BOLT

59382-13A00

$7.24

12

.WASHER

59314-13A00

$2.28

13

.BOOT

59386-13A00

$7.28

14

.BRACKET

69151-31D00

Unavailable

15

CALIPER ASSY,FRONT LH

59300-05H10-999

Unavailable

16

.PISTON SET

59300-21810

$74.77

17

..SEAL SET,PISTON

59300-21860

$26.75

18

.SPRING,PAD

69115-31D10

$18.60

19

.PIN

59345-14600

$18.33

20

.BLEEDER

59121-01A00

$7.99

21

.CAP,BLEEDER

59122-46H00

$4.17

22

.BOOT

59303-14500

$5.06

23

.PIN

59387-00B20

$17.46

24

.NUT

59388-00B20

$20.13

25

.BOLT

59382-13A00

$7.24

26

.WASHER

59314-13A00

$2.28

27

.BOOT

59386-13A00

$7.28

28

.BRACKET LH

59351-05H00

Unavailable

29

PAD SET,FRONT BRAKE RH

59100-05820

$47.77

30

.SHIM

69132-31D00

$10.38

31

PAD SET,FRONT BRAKE LH

59100-05830

$66.90

32

.SHIM

69132-31D00

$10.38

33

BOLT (10X20)

01550-1025A

$2.80
