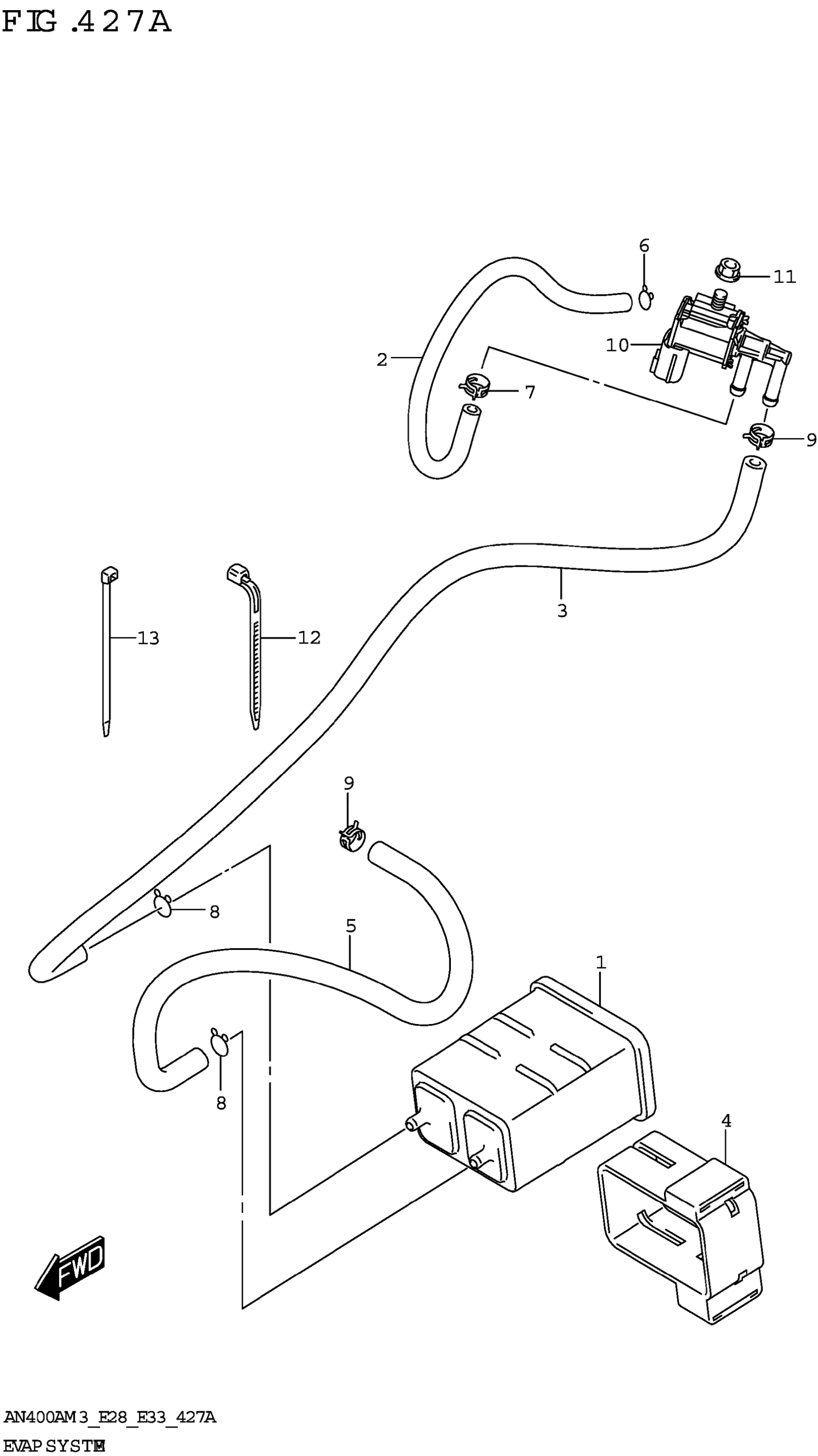

Suzuki AN400AM3 (2023) EVAP SYSTEM Diagram

#

Description
Price

1

CANISTER ASSY, CHARCOAL

18560-19K00

$145.27

2

HOSE,PURGE NO.1

18561-19K10

$19.80

3

HOSE,PURGE NO.2

18562-19K10

$32.77

4

CUSHION,CANISTER

18572-19K01

$18.32

5

HOSE,SURGE

44435-14G20

$29.78

6

CLIP (ID:6.5)

09401-06101

$2.06

7

CLIP (ID:8.6)

09401-08411

$1.77

8

CLIP

09401-10401

$1.45

9

CLIP (ID:10.5,H:8)

09401-10409

$2.28

10

VALVE,CANISTER PURGE

18117-52G10

$168.22

11

NUT (6X12)

08316-1006A

$2.19

12

CLAMP (L:145)

09407-14407

$2.80

13

CLAMP (L:165)

09407-18402

$2.21
