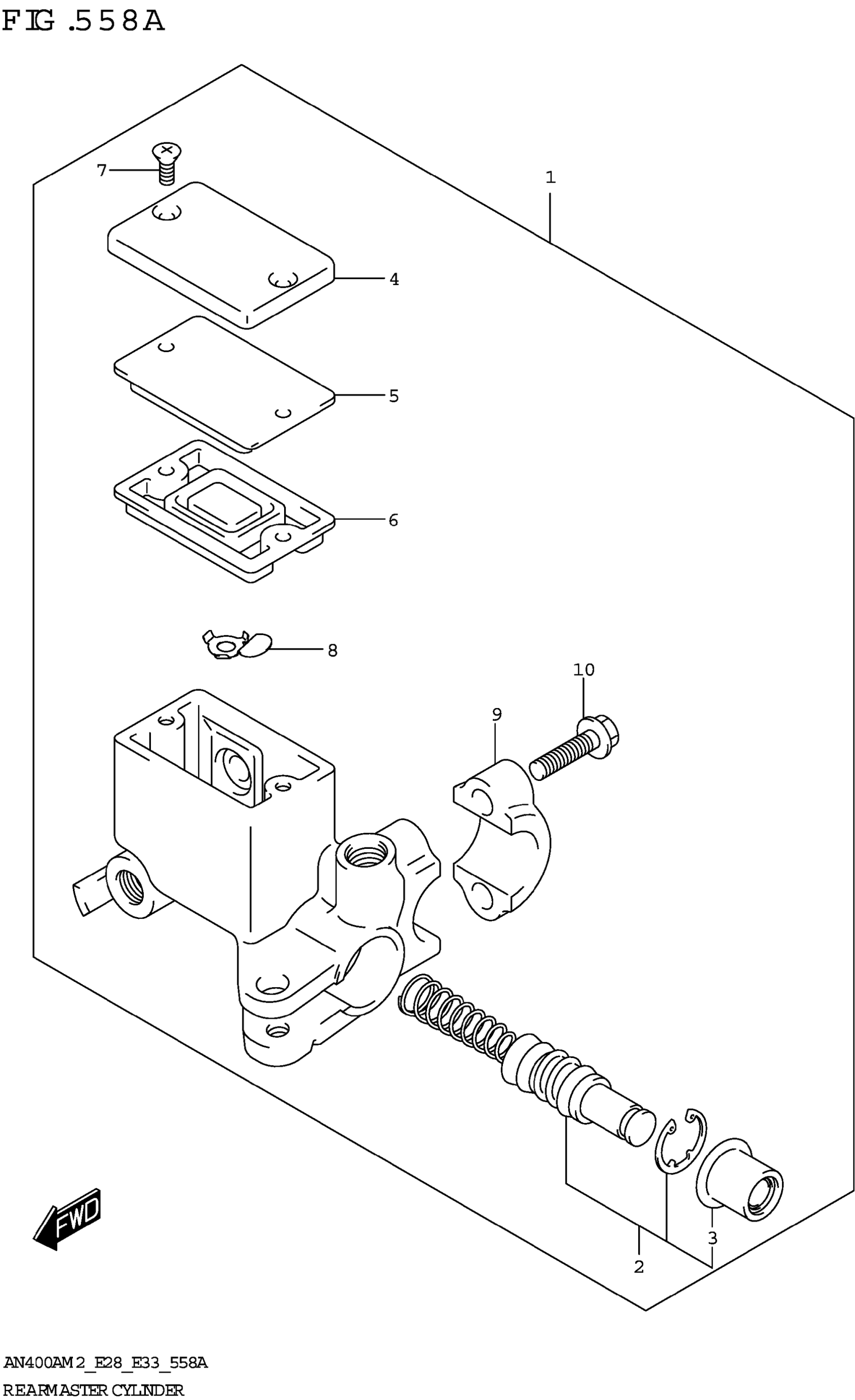

Suzuki AN400AM2 (2022) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-14F61

$247.28

2

.PISTON/CUP SET

59600-04810

$41.38

3

..BOOT

59666-44300

$5.30

4

.CAP

59669-14F10

$23.02

5

.PLATE,DIAPHRAGM

59668-14F00

$13.10

6

.DIAPHRAGM

59667-04700

$8.95

7

.SCREW

69689-49300

$1.81

8

.PROTECTOR

59664-32F00

$13.20

9

.HOLDER

59671-36500

$11.50

10

.BOLT (6X22)

59675-02FA0

$3.49
