2022 Suzuki AN400AM2 Rear Caliper Diagram

← All diagrams

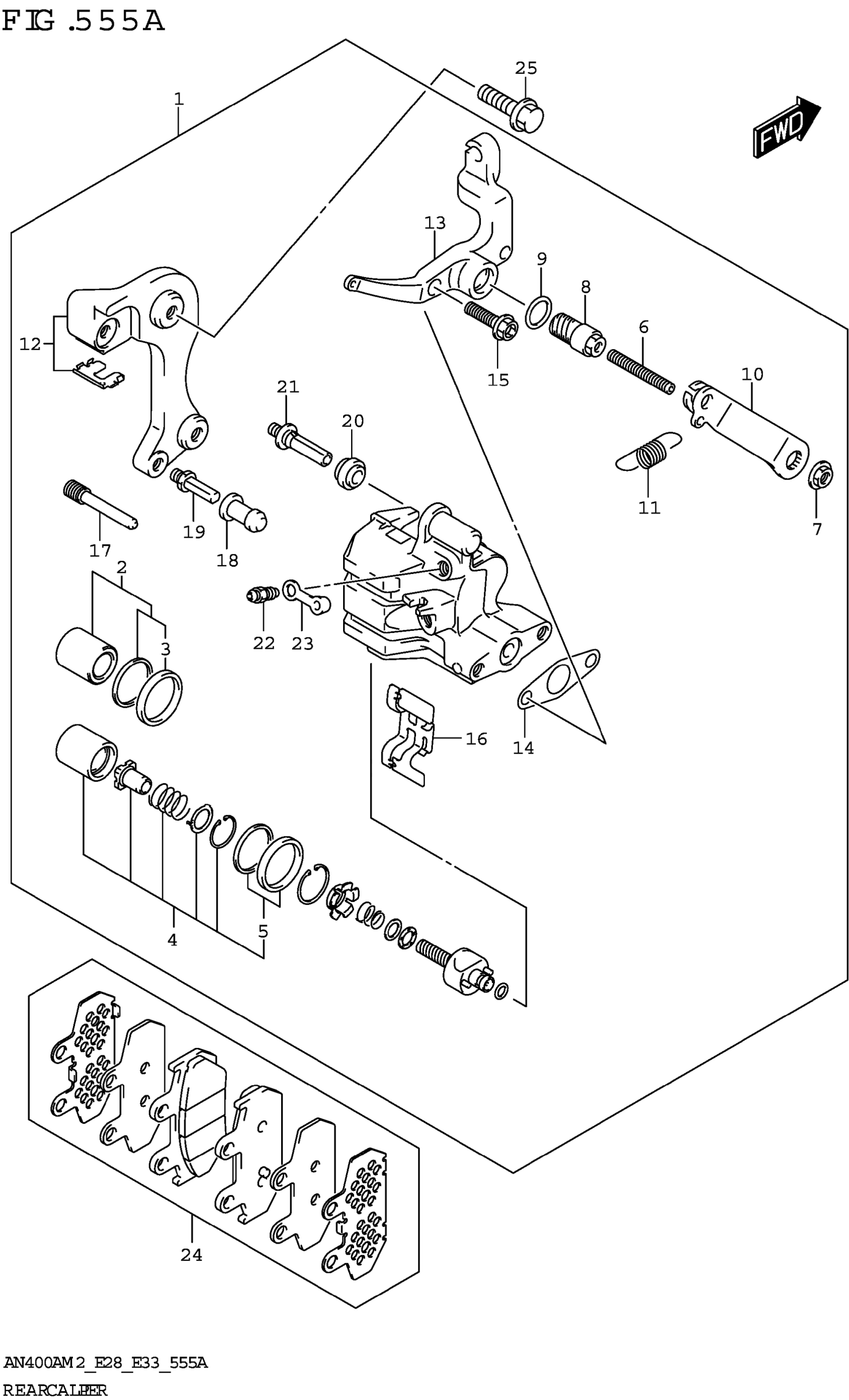

Find the part on the Rear Caliper diagram for your 2022 Suzuki AN400AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki AN400AM2 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,RR

69100-05H31-999

1
Out of stock

2

.PISTON SET

69100-43810

1

$36.52

In stock

3

..SEAL SET,PISTON

69100-36810

1

$9.26

In stock

4

.PISTON SET

69100-10830

1
Out of stock

5

..SEAL SET,PISTON

69100-36810

1

$9.26

In stock

6

.BOLT

69127-10G00

1
Out of stock

7

.NUT

69123-14F40

1
Out of stock

8

.SHAFT

69124-10G00

1
Out of stock

9

.O-RING

69122-14F40

1
Out of stock

10

.ARM

69125-05H00

1
Out of stock

11

.SPRING,RETURN

69128-14F00

1
Out of stock

12

.BRACKET

69150-05H10

1
Out of stock

13

.PARKING

69120-05H10

1
Out of stock

14

.PACKING

69126-14F40

1
Out of stock

15

.BOLT (8X25)

69121-14F00

2
Out of stock

16

.SPRING,PAD

69115-10G00

1
Out of stock

17

.PIN,HANGER

59345-13E00

2

$14.31

In stock

18

.BOOT

59386-13A00

1
Out of stock

19

.PIN

59382-14500

1

$9.18

In stock

20

.BOOT

59303-14500

1
Out of stock

21

.PIN

59305-27C00

1

$26.52

In stock

22

.BLEEDER

59121-01A00

1
Out of stock

23

.CAP,BLEEDER

59122-01A00

1
Out of stock

24

PAD & SHIM SET

69102-05890

1
Out of stock

25

BOLT

01550-0830A

2
Out of stock
