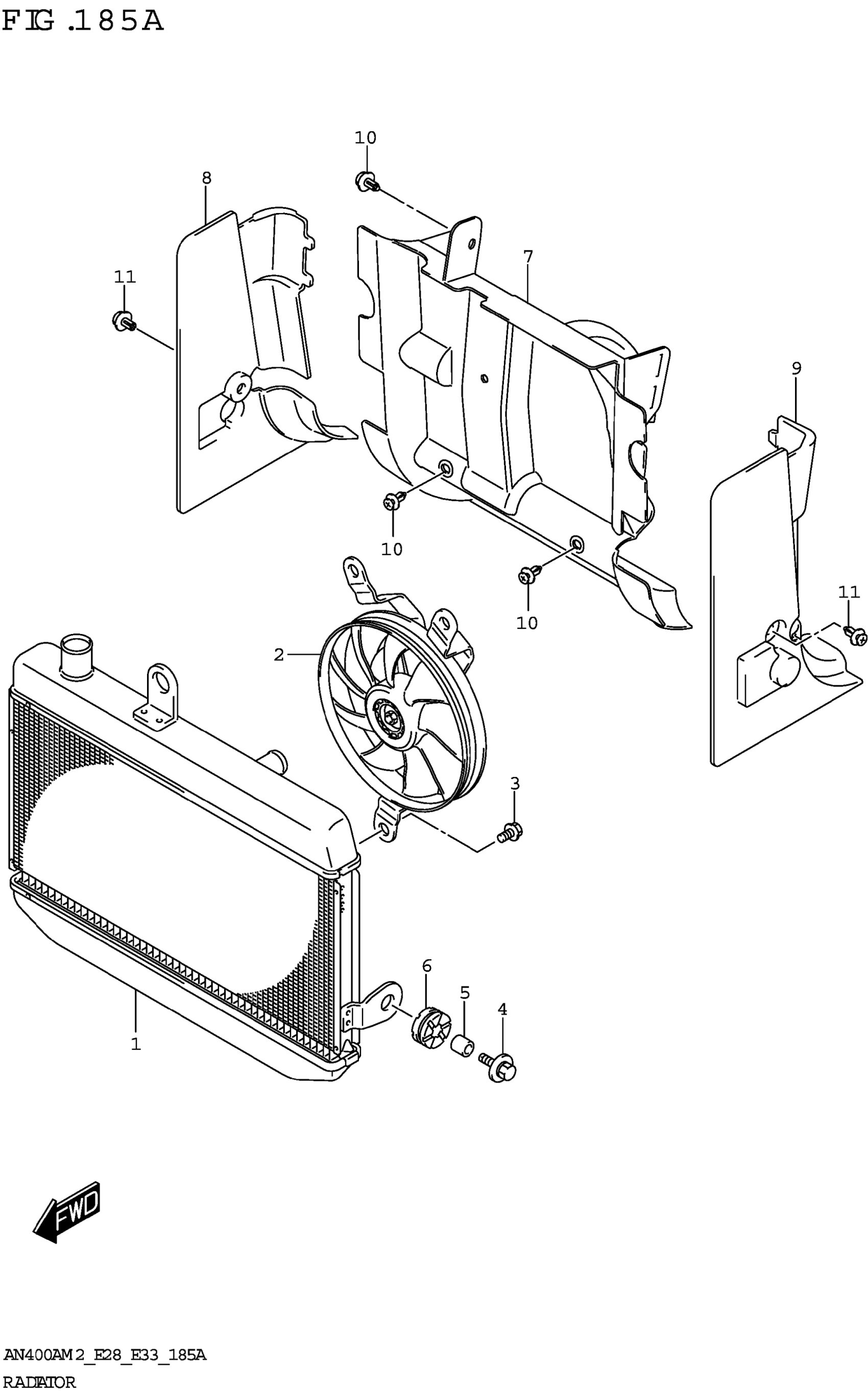

Suzuki AN400AM2 (2022) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY,WATER

17710-19K10

$728.15

2

FAN ASSY, RADIATOR

17800-19K00

$365.83

3

BOLT,FAN ASSY

17711-40F00

$5.58

4

BOLT (6X25)

09118-06097

$2.50

5

SPACER (6.5X10X12)

09180-06290

$2.35

6

CUSHION

09320-10051

$2.99

7

SHIELD,RADIATOR HEAT CTR

17771-19K00

$41.50

8

SHIELD,RADIATOR HEAT RH

17772-05H00

Unavailable

9

SHIELD,RADIATOR HEAT,L

17773-05H01

$20.05

10

CLIP This part replaces 09409-06322.

09409-06322-5PK

$3.10

11

CLIP

09409-06313

$2.92
