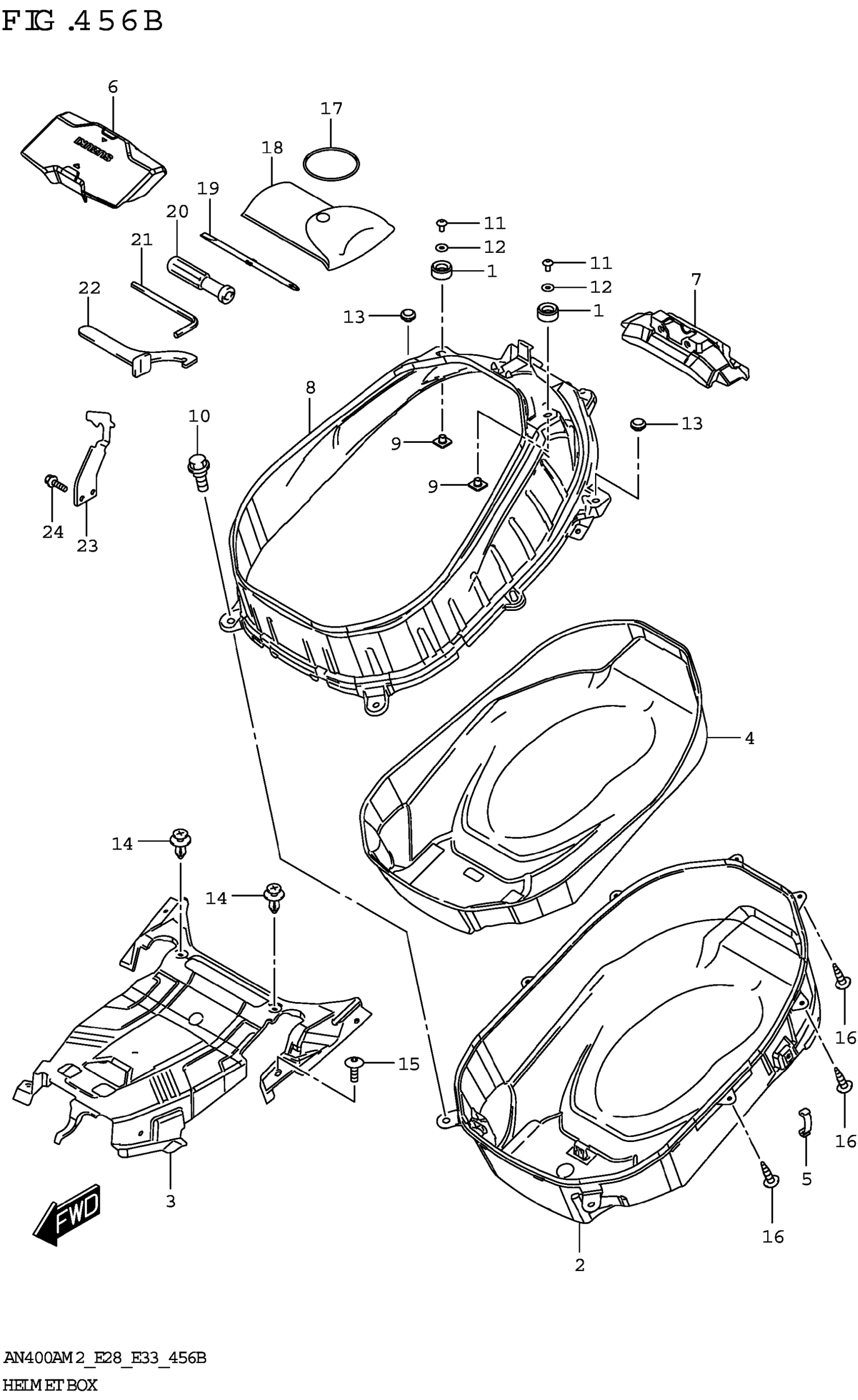

Find the part on the Helmet BOX diagram for your 2022 Suzuki AN400AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki AN400AM2 Helmet BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CUSHION,HELMET BOX UPR

45149-04A00

2
Out of stock

2

BOX,HELMET NO.1

92211-19K00

1
Out of stock

3

COVER,HELMET BOX FRONT

92212-19K00

1
Out of stock

4

MAT,HELMET BOX

92213-19K00

1
Out of stock

5

CLAMP,HELMET BOX

92214-14G00

4
Out of stock

6

COVER,HELMET BOX

92214-19K00

1
Out of stock

7

COVER,HELMET BOX REAR

92215-19K00

1
Out of stock

8

BOX,HELMET NO.2

92221-19K00

1
Out of stock

9

NUT,HELMET BOX

92222-10G01

2
Out of stock

10

BOLT (6X17.8)

09111-06072

2
Out of stock

11

SCREW (6X12)

09139-06215

2
Out of stock

12

WASHER (6.5X16X1.2)

09160-06019

2
Out of stock

13

CUSHION

09329-10001

2

$2.56

In stock

14

CLIP This part replaces 09409-06322.

09409-06322-5PK

2
Out of stock

15

CLIP (7.6X25.7)

09409-08308

1
Out of stock

16

SCREW

03541-0516A

6
Out of stock

17

O RING(D:3.5,ID This part replaces 09280-63003.

09280-61004

1
Out of stock

18

BAG,TOOL

09811-00311

—
Out of stock

19

DRIVER

09814-00015

1
Out of stock

20

GRIP,DRIVER

09814-00016

1
Out of stock

21

SPANNER,HEXAGON (4)

09816-00103

1
Out of stock

22

CLAMP,WRENCH

09822-00005

1
Out of stock

23

HOLDER,HELMET RH

95720-05H00

1
Out of stock

24

BOLT

01550-0612A

2
Out of stock
