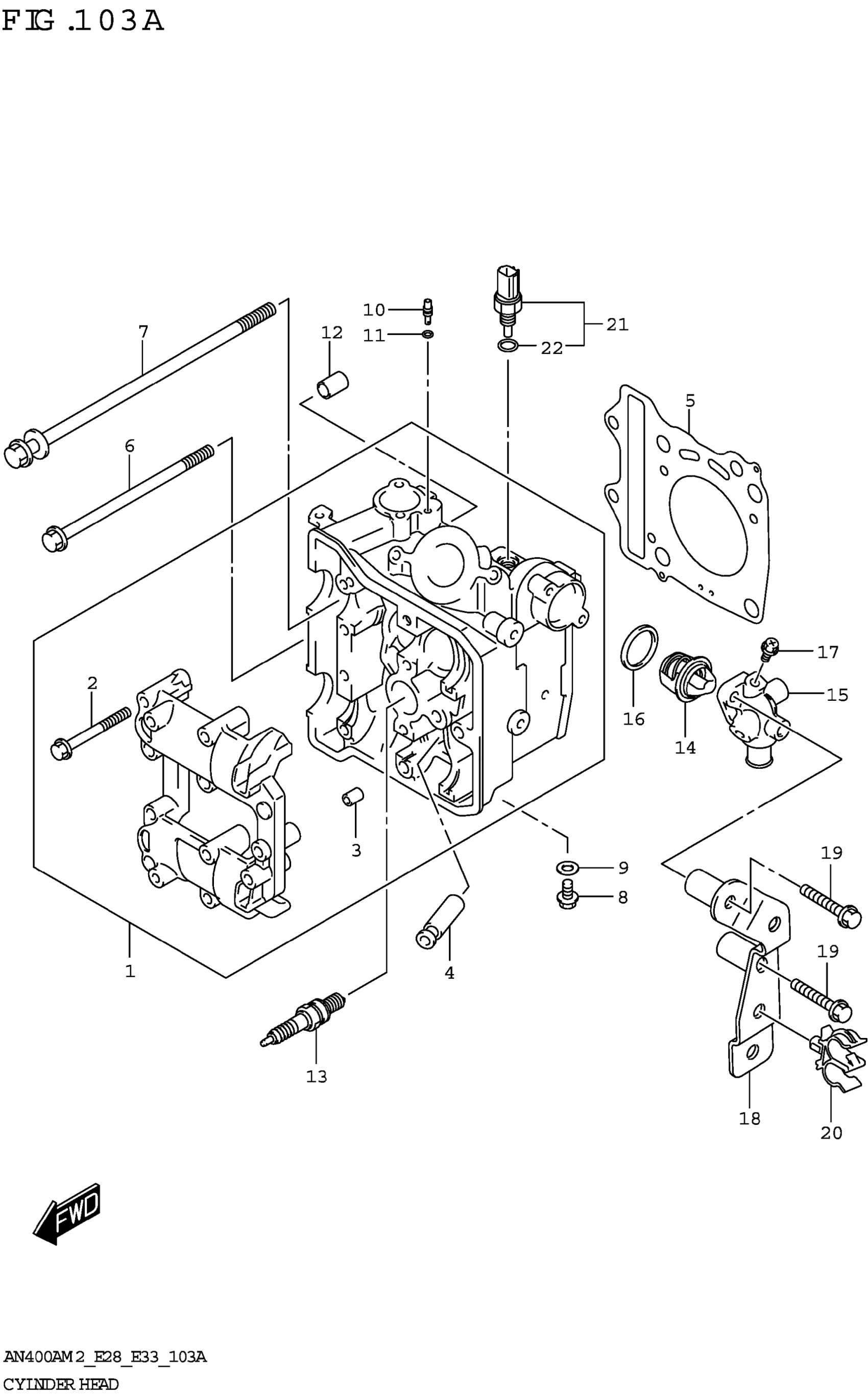

Suzuki AN400AM2 (2022) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER

11100-19K50

$667.07

2

.BOLT (6X45)

09103-06165

$3.03

3

.PIN (8X11)

09206-08001

$1.78

4

GUIDE,VALVE (OS:0.3)

11115-32C71

Unavailable

5

.GASKET,CYLINDER HEAD

11141-19K00

$35.37

6

BOLT (8X130)

09103-08086

Unavailable

7

BOLT,CYLINDER HEAD (10X190)

11117-05H00

$15.67

8

BOLT

01550-0612A

$1.97

9

GASKET (5.8X13X1.2)

09168-06023

$2.35

10

JET (#8)

09493-80005

$16.25

11

O-RING (D:1.2,ID:4)

09280-04004

$1.91

12

PIN (10.4X13X18)

04211-13189

$2.19

13-1

PLUG,SPARK (CR7EIA-9)

09482-00554

$11.97

13-2

PLUG,SPARK (CR8EIA-9)

09482-00556

$10.85

13-3

PLUG,SPARK (CR9EIA-9)

09482-00558

$12.14

13-4

PLUG,SPARK (IU22D)

09482-00553

$17.50

13-5

PLUG,SPARK (IU24D)

09482-00555

$17.96

13-6

PLUG,SPARK (IU27D)

09482-00557

$16.60

14

THERMOSTAT,WATER

17670-19K01

$37.60

15

COVER, THERMOSTAT

17661-05H01

$32.85

16

GASKET (6.4X11.5X0.84)

09168-06026

$3.10

17

UNION BOLT,AIR VENT

17568-50F00

$4.76

18

BRACKET,AIR CLEANER,L

13760-19K20

$29.53

19

BOLT

01547-0640A

$2.32

20

CLAMP

27893-54J00

Unavailable

21

SENSOR,WATER TEMP

13650-14G00

$52.02

22

.O RING

13655-14G00

$9.55
