2022 Suzuki AN400AM2 Crankshaft Diagram

← All diagrams

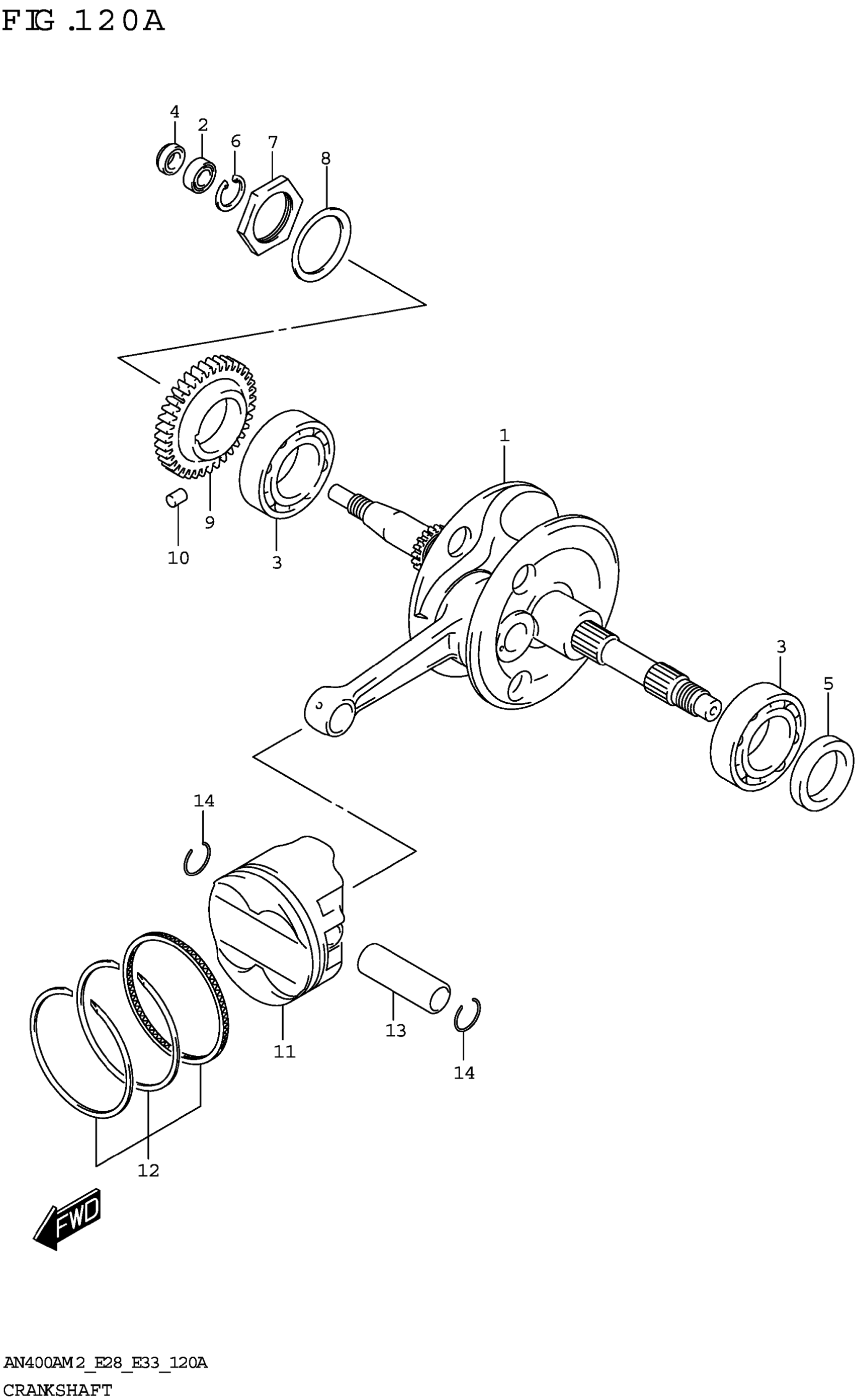

Find the part on the Crankshaft diagram for your 2022 Suzuki AN400AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki AN400AM2 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-19K00

1
Out of stock

2

BEARING (12X32X10)

09262-12016

1
Out of stock

3

BEARING (35X72X17)

09262-35038

2
Out of stock

4

OIL SEAL (12X29X6)

09282-12011

1
Out of stock

5

OIL SEAL (34X52X6)

09283-34011

1
Out of stock

6

CIRCLIP

08331-41329

1
Out of stock

7

NUT,FLYWHEEL

12664-24B01

1
Out of stock

8

WASHER (35.1X52X1.5)

09164-35002

1
Out of stock

9

GEAR,CRANK BALANCER DRIVE (NT | 40)

12661-05H00

1
Out of stock

10

PIN (5X8)

09261-05005

1
Out of stock

11

PISTON

12111-19K00-0F0

1
Out of stock

12

RING SET,PISTON

12140-10L00

1
Out of stock

13

PIN,PISTON

12151-05A00

1
Out of stock

14

CIRCLIP

09381-20004

2
Out of stock
← Crankcase Cover Cylinder →
