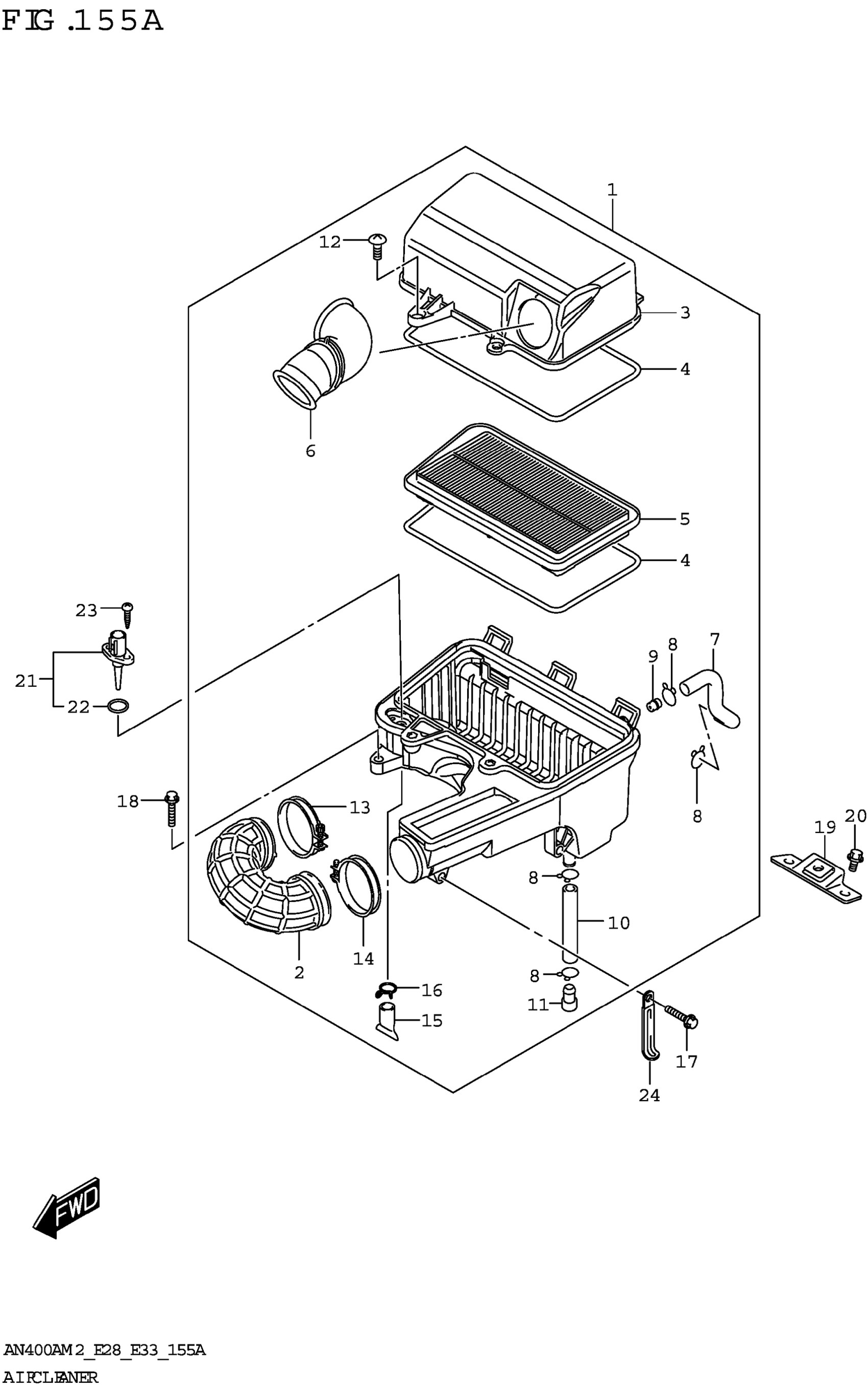

Suzuki AN400AM2 (2022) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-19K10

$271.52

2

.TUBE, OUTLET

13881-19K00

$41.70

3

.CAP

13740-19K00

$43.08

4

.GASKET

13746-19K10

$5.10

5

.FILTER, AIR CLEANER

13780-19K00

$25.42

6

.TUBE, INLET

13891-19K00

Unavailable

7

.TUBE, BREATHER

13853-19K00

Unavailable

8

.CLIP

13821-12K00

Unavailable

9

.JET,BREATHER

13859-14D41

Unavailable

10

.TUBE, DRAIN

13871-19K00

$15.15

11

.STOPPER, DRAIN

13877-19K00

$5.32

12

.SCREW

13837-19K00

$3.48

13

.CLAMP

13170-25D01

$7.45

14

.CLAMP

09402-58208

$4.99

15

.PLUG,DRAIN

13878-19K00

$6.55

16

.CLIP

13821-12K00

Unavailable

17

BOLT (6X25)

01550-0625A

$2.01

18

BOLT (6X30)

09116-06103

$3.42

19

BRACKET,AIR CLNR REAR

13760-19K30

$25.38

20

BOLT

01547-0612A

$2.09

21

SENSOR,AIR TEMP

13650-14G10

$49.81

22

.O-RING

13655-14G10

$11.18

23

SCREW

03511-0516A

$1.95

24

CLAMP (L:45)

09404-06429

$1.88
