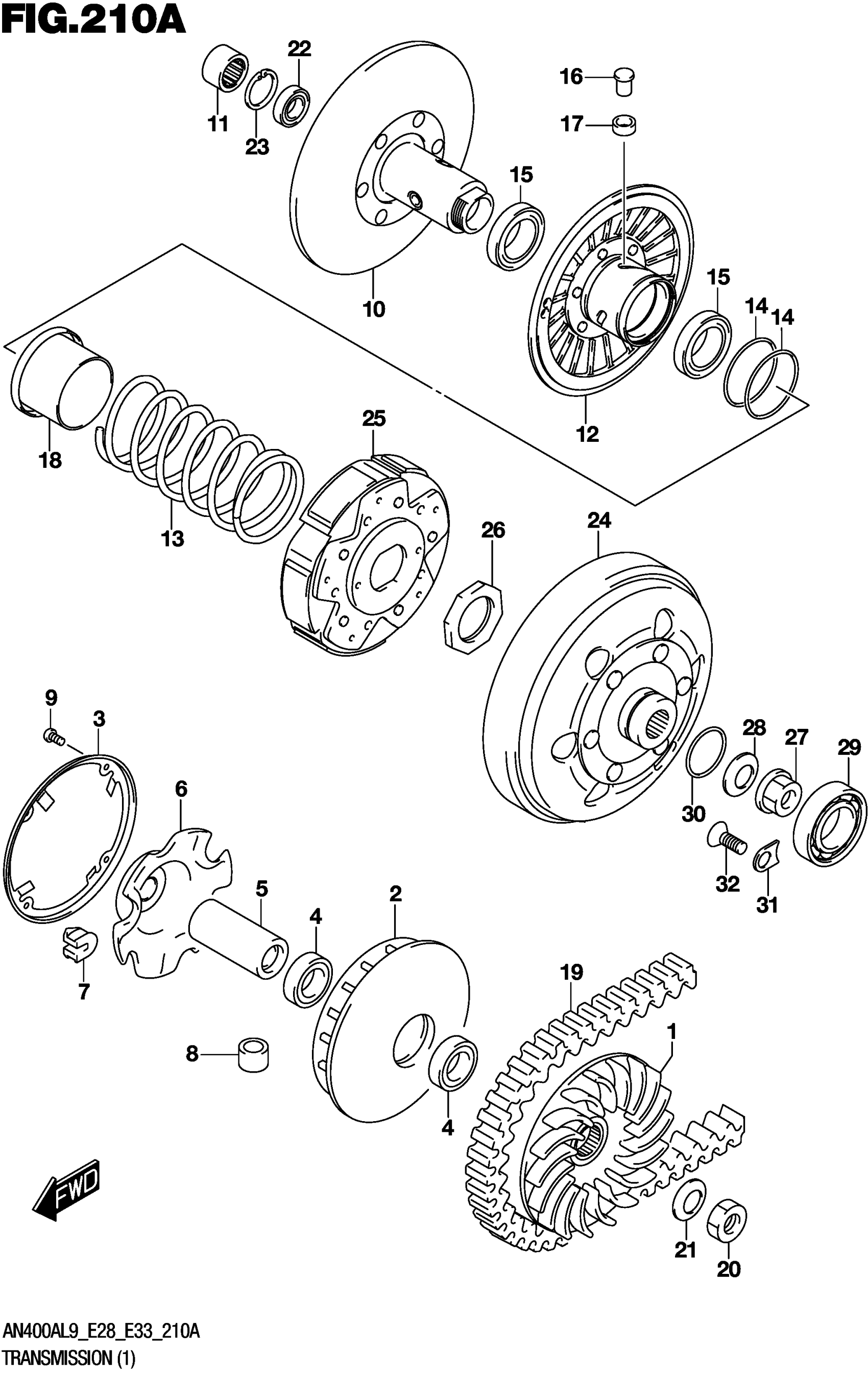

Suzuki AN400AL9 (2019) TRANSMISSION (1) Diagram

#

Description
Price

1

FACE,FIXED DRIVE

21110-05H00

$96.62

2

FACE,MOVABLE DRIVE

21120-05H00

$109.14

3

COVER, MOVABLE

21122-05H00

$13.73

4

SEAL,MOVABLE DRIVE FACE OIL

21124-15F00

$10.81

5

SPACER,MOVABLE DRIVE

21125-05H00

$55.22

6

PLATE,MOVABLE DRIVE

21431-05H00

$52.60

7

DAMPER,MOVABLE DRIVE PLATE

21481-14F00

$7.22

8

ROLLER,MOVABLE DRIVEN

21650-15F40

$14.79

9

SCREW

02142-0410A

$1.49

10

FACE,FIXED DRIVEN

21210-05H00

$269.52

11

BEARING,FIXED DRIVEN RH This part replaces 21214-15F00.

21214-15F01

$26.72

12

FACE,MOVABLE DRIVEN

21240-05H10

$250.68

13

SPRING,MOVABLE DRIVEN

21243-15F40

$35.18

14

O-RING

21245-15F00

$5.02

15

SEAL,MOVABLE DRIVEN

21247-31G00

$12.48

16

PIN,MOVABLE DRIVEN

21248-15F01

$4.76

17

SPACER,MOVABLE DRIVEN PIN

21249-15F00

$5.38

18

SHEET,MOVABLE DRIVEN

21471-15F20

$17.28

19

V BELT, DRIVE

27601-05H10

$153.05

20

NUT

09140-18501

$2.93

21

WASHER (18.3X31.5X1.8)

09164-18001

$3.24

22

BEARING This part replaces 08123-69047.

08123-6904B

$19.92

23

CIRCLIP

08331-41379

$2.87

24

HOUSING,CLUTCH

21220-05H30

$335.67

25

CLUTCH ASSY,SHOE

21501-05H41

$281.40

26

NUT,SHOE CLUTCH

21518-15F00

$10.95

27

NUT

09140-16002

$3.16

28

WASHER

09164-16002

$3.16

29

BEARING (35X62X14)

09262-35064

$69.25

30

O-RING (D:2,ID:31)

09280-32008

$10.95

31

RETAINER

24742-44B00

$4.10

32

SCREW

02122-0616A

$1.49
