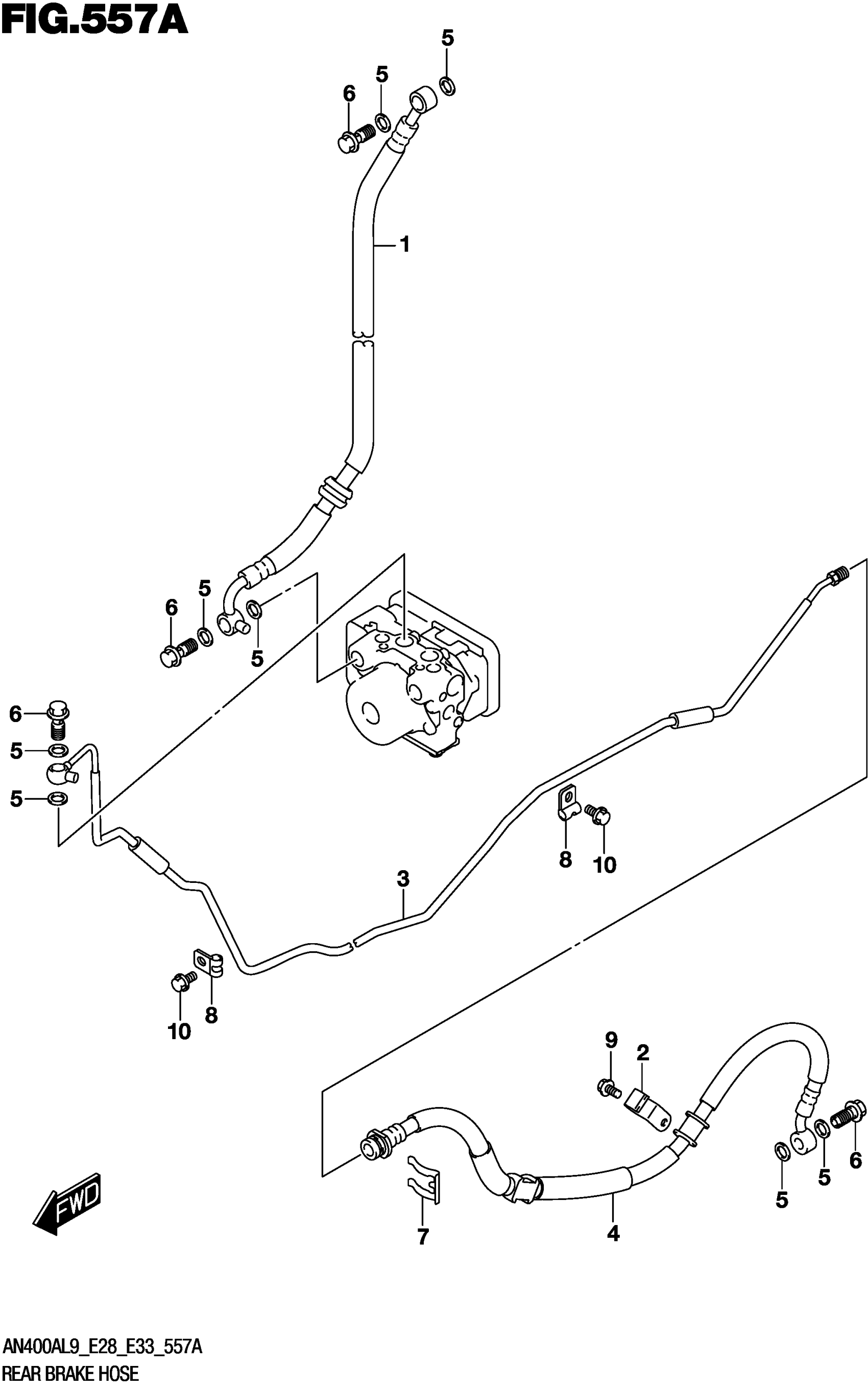

Suzuki AN400AL9 (2019) REAR BRAKE HOSE Diagram

#

Description
Price

1

HOSE, RR BRAKE NO.1

69240-19K00

$60.63

2

CLAMP,RR BRAKE HOSE NO.2

69266-05H00

Unavailable

3

PIPE, REAR BRAKE

69450-19K00

$108.50

4

HOSE, RR BRAKE NO.2

69480-19K00

$57.07

5

WASHER (10X15X1.5)

09161-10009

$1.84

6

UNION (10X1.25X22)

09360-10062

$6.43

7

E RING This part replaces 09383-13001.

09383-13003

$2.30

8

CLAMP

09403-07401

Unavailable

9

BOLT

01547-0612A

$2.03

10

BOLT

01547-0616A

$2.03
