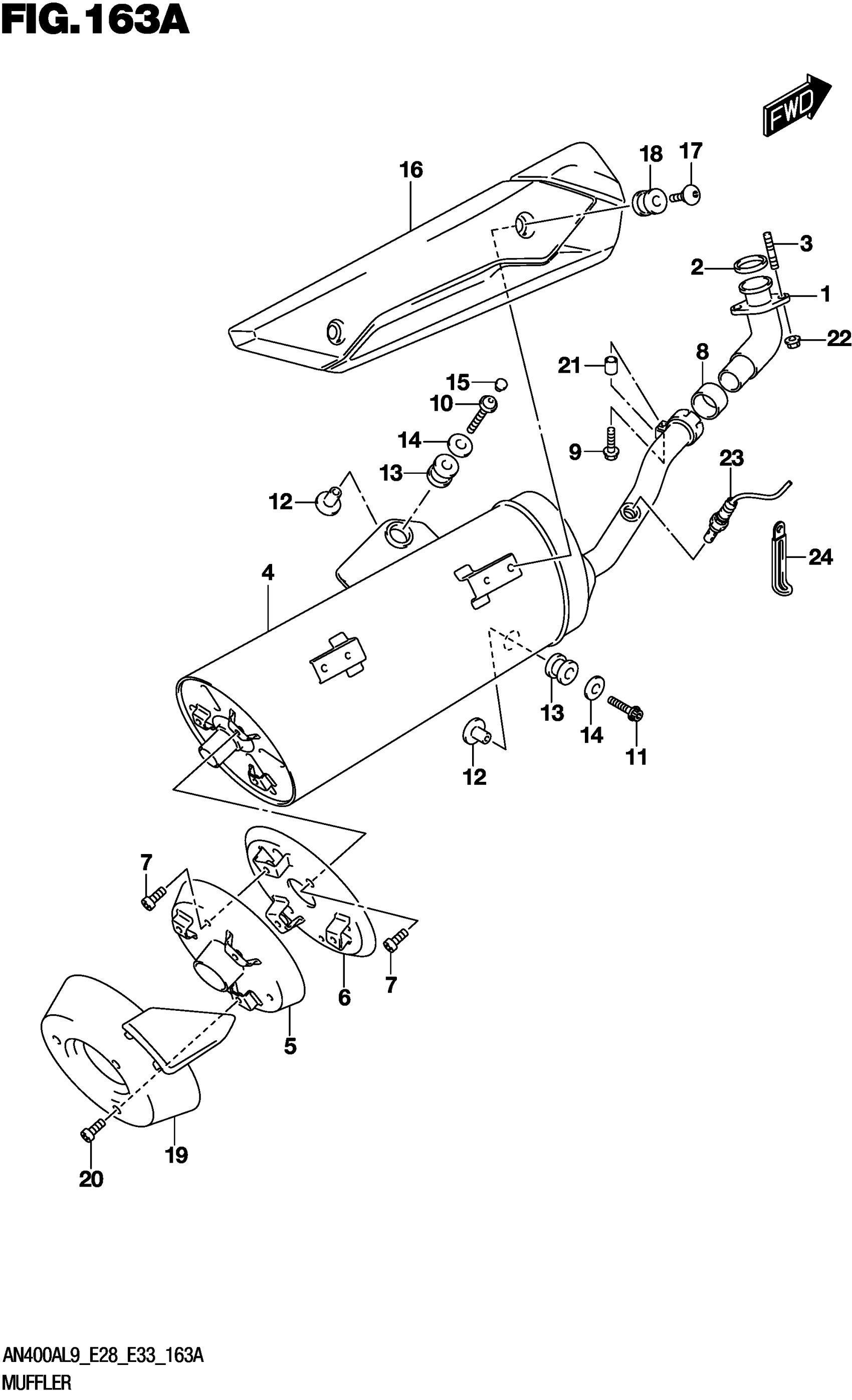

Suzuki AN400AL9 (2019) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-19K01

$74.42

2

.GASKET,EXHAUST

14181-18C00

$7.22

3

STUD BOLT (L:20)

09108-08106

$3.35

4

BODY, MUFFLER | W/CATALYST

14310-19K00-H01

$1,448.22

5

STAY,MUFFLER RR COVER

14760-05H01

Unavailable

6

STAY, RR COVER NO.2

14770-05H01

Unavailable

7

BOLT

09106-06140

$3.20

8

CONNECTOR,MUF JOINT

14771-05H01

$23.19

9

BOLT (8X35)

09106-08197

$4.18

10

BOLT (8X45)

09106-08195

$6.17

11

BOLT (8X45)

09106-08195

$6.17

12

SPACER (8.6X12X24.2)

09180-08152

$5.83

13

CUSHION (12X30X24)

09320-12048

$5.11

14

WASHER (8.5X28X1.6)

09160-08157

$2.95

15

CAP This part replaces 09250-06008.

09250-06016

$1.96

16

COVER, MUFFLER

14780-19K00

$139.33

17

SCREW (6X20)

09139-06211

$3.44

18

CUSHION

09320-08070

$11.57

19

COVER,MUF RR (BLACK)

14790-19K01-YAD

$89.23

20

BOLT

09106-06138

$3.25

21

SPACER,MUFFLER

14458-06H00

$7.05

22

NUT

08316-1008A

$2.45

23

SENSOR,OXYGEN

18213-17K00

$297.73

24

CLAMP (L:45)

09404-06429

$1.83
