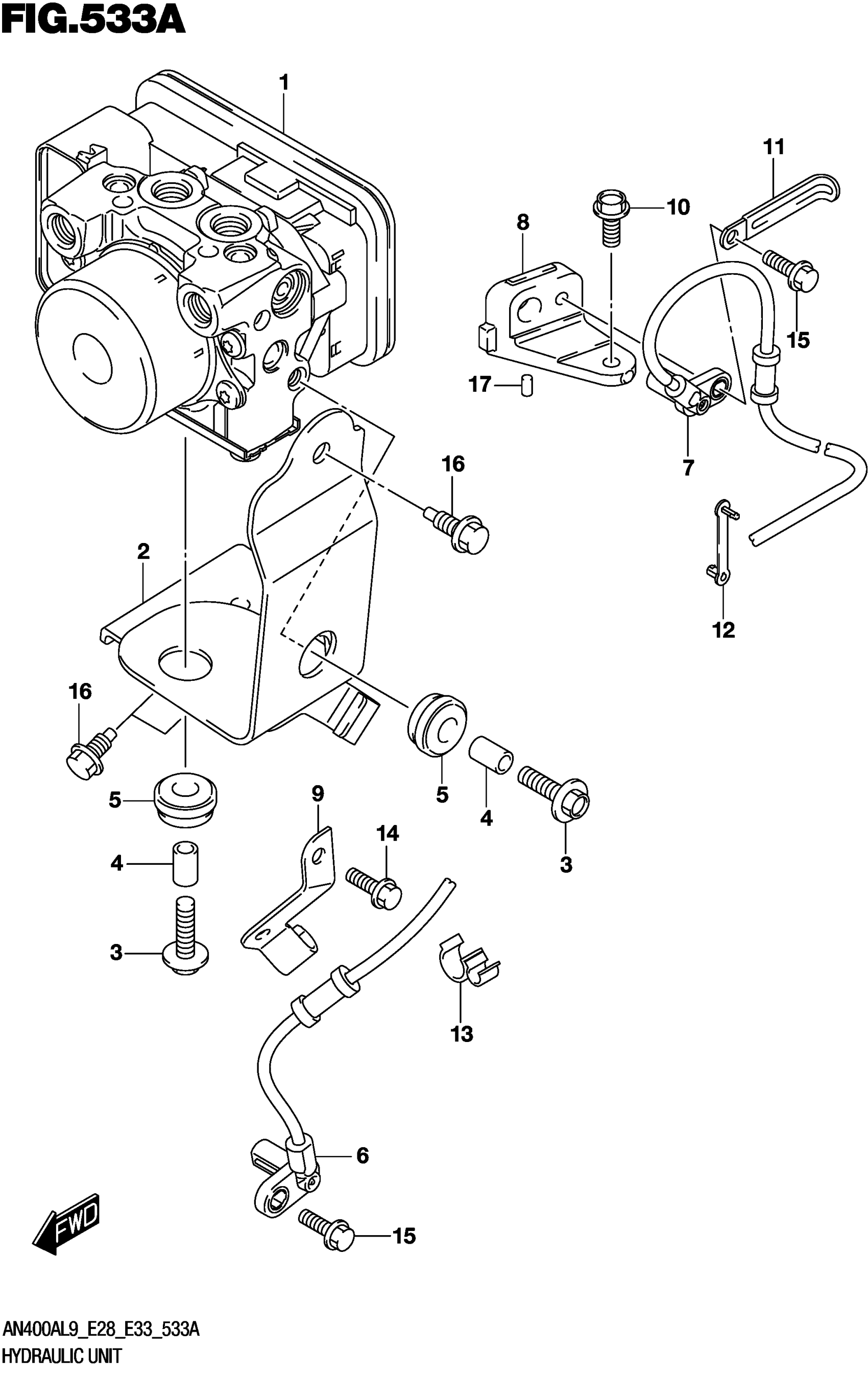

Suzuki AN400AL9 (2019) HYDRAULIC UNIT Diagram

#

Description
Price

1

UNIT ASSY, HYDRAULIC ABS

55610-19K00

$831.82

2

HOLDER, HYDR UNIT

55660-19K00

$75.42

3

BOLT,HYDR UNIT MTG (6X25)

55661-10G00

Unavailable

4

SPACER,HYDR UNIT MTG (#05)

55662-10G00

Unavailable

5

RUBBER,HYDR UNIT MTG

55663-10G00

Unavailable

6

SENSOR, FR WHEEL ABS

55710-19K00

$60.32

7

SENSOR, RR WHEEL ABS

65710-19K00

$72.37

8

BRACKET, SPEED SENSOR RR

65721-19K00

$33.37

9

CLAMP, FR WHL SPD SENSOR

55731-19K00

$10.13

10

BOLT (6X16)

09103-06240

$3.08

11

CLAMP (L:45)

09404-06429

$1.83

12

CLAMP (L:33)

09407-03401

$3.07

13

CLAMP

09408-00266

$2.51

14

BOLT

01547-0612A

$2.03

15

BOLT

01547-0616A

$2.03

16

BOLT

01550-0610A

$1.97

17

PIN (4X13.8)

04221-04089

$1.49
