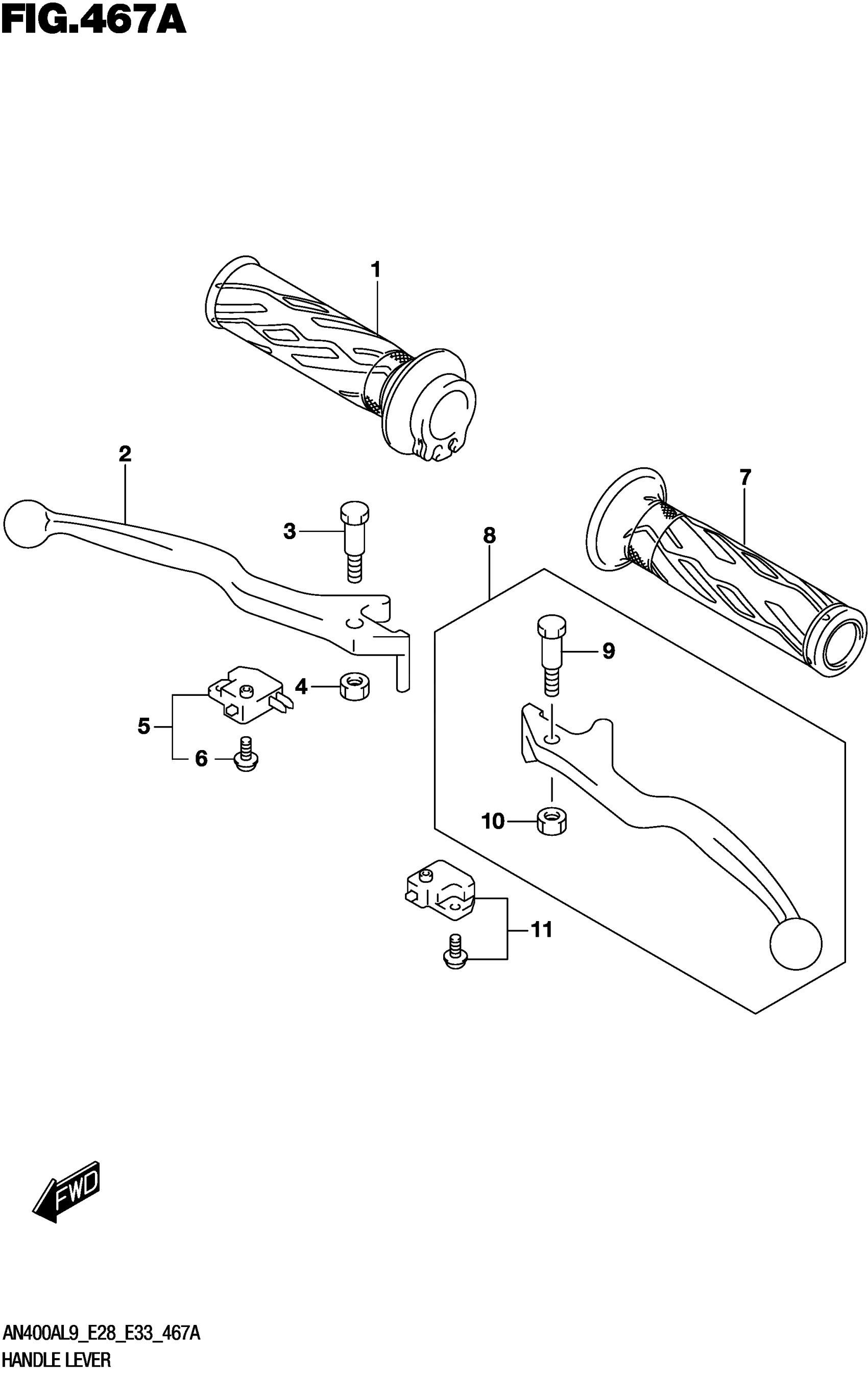

Suzuki AN400AL9 (2019) HANDLE LEVER Diagram

#

Description

Price

1

GRIP,THROTTLE

57110-21H02

$20.33

2

LEVER, FRONT BRAKE

57421-14F10

$34.80

3

BOLT,BRAKE LEVER PIVOT

57431-04F00

$6.28

4

NUT

08319-2106B

$2.32

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$38.46

6

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.19

7

GRIP,L

57211-21H01

$11.13

8

LEVER ASSY, REAR BRAKE

57500-14F50

$23.57

9

BOLT,BRAKE LEVER PIVOT

57431-04F00

$6.28

10

NUT

08319-2106B

$2.32

11

SWITCH ASSY,RR BRAKE This part replaces 57560-14J01.

57560-14J02

$38.66
