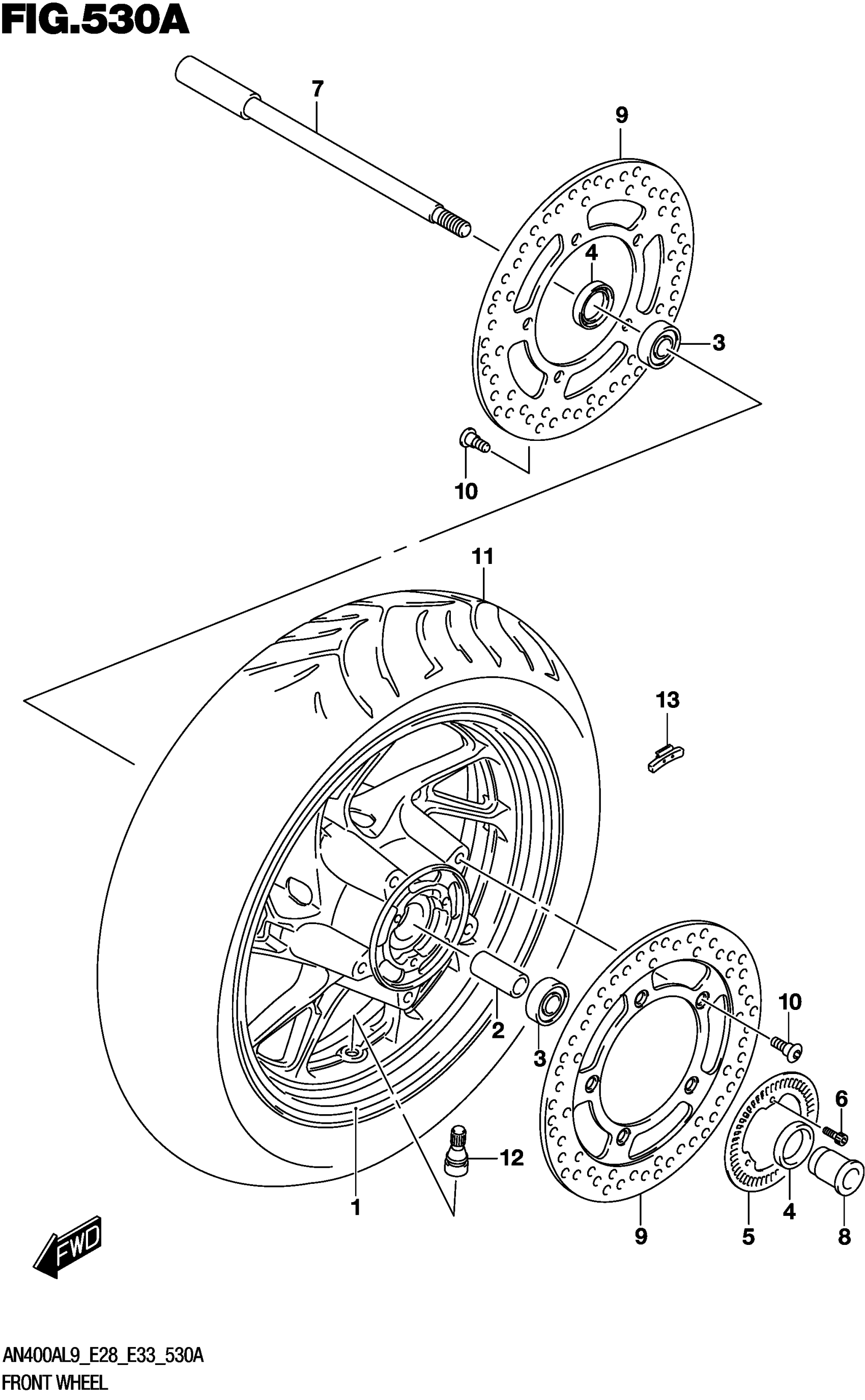

Suzuki AN400AL9 (2019) FRONT WHEEL Diagram

#

Description
Price

1-1

(BLACK) | FOR YUA

54111-19K00-019

$787.73

1-1

(BLACK)

54111-19K00-019

$787.73

1-2

(RED) | FOR YKV,YWW

54111-19K00-QGY

Unavailable

1-2

(RED)

54111-19K00-QGY

Unavailable

2

SPACER (15.3X21.7X100)

09180-15070

$20.13

3

BEARING, FRONT WHEEL

08123-62027

$18.57

4

SEAL,OIL This part replaces 09285-22005.

09285-22007

$7.05

5

RING,SPEED SENSOR FR (50T)

54162-27G00

$140.15

6

BOLT

07130-0512A

$2.19

7

AXLE,FRONT

54711-05H00

Unavailable

8

SPACER,FR AXLE LH

54751-14F00

$21.35

9

DISC, FRONT BRAKE

59211-19K00

$235.02

10

BOLT (8X21)

09106-08160

$3.57

11

TIRE,FRONT | SCOOT SMART G (DUNLOP) This part replaces 55110-19K00.

55110-19K01

$169.52

12

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

13-1

BALANCER,WHEEL (10G) | 10G

55411-22H00

$8.60

13-2

BALANCER,WHEEL (20G) | 20G

55412-22H00

$10.07

13-3

BALANCER,WHEEL (30G) | 30G

55413-22H00

$11.47
