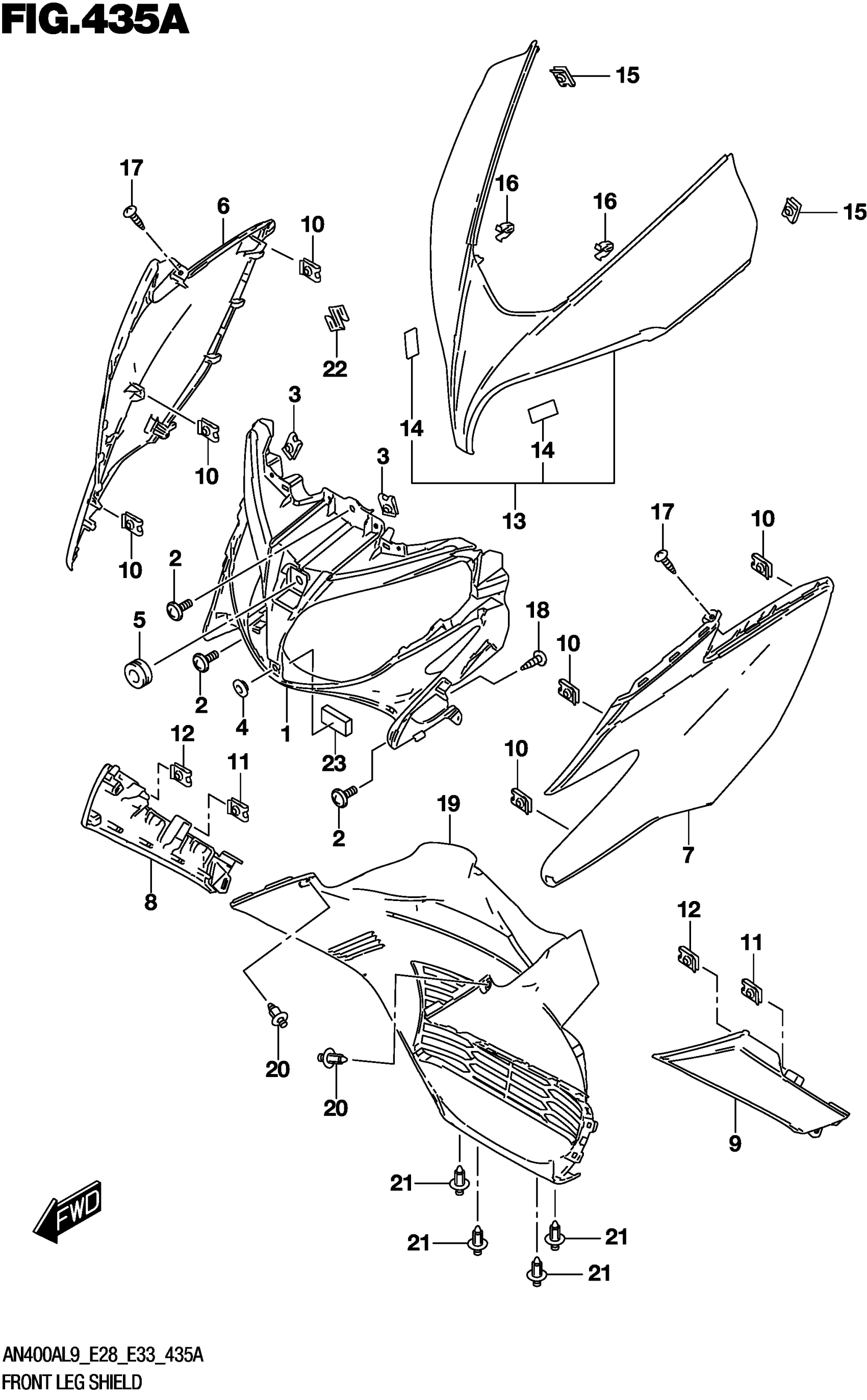

Suzuki AN400AL9 (2019) FRONT LEG SHIELD Diagram

#

Description
Price

1-1

SHIELD, LEG FRONT (BLUE) | FOR YUA

48111-19K00-YUA

$302.45

1-2

SHIELD,LEG FRONT (BLACK) | FOR YKV

48111-19K00-YKV

$251.75

1-3

SHIELD, LEG FRONT (WHITE) | FOR YWW

48111-19K00-YWW

$308.63

2

BOLT (6X16)

09113-06013

$2.23

3

NUT (M5)

09148-05038

$1.97

4

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

5

CUSHION (8X26X7)

09320-08028

$3.04

6-1

SHIELD, LEG FR SIDE RH (BLUE) | FOR YUA

48112-19K00-YUA

$151.52

6-2

SHIELD,LEG FR SIDE,R | FOR YKV

48112-19K00-YKV

$126.13

6-3

SHIELD, LEG FR SIDE RH (WHITE | FOR YWW

48112-19K00-YWW

$154.62

7-1

SHIELD, LEG FR SIDE LH (BLUE) | FOR YUA

48113-19K00-YUA

Unavailable

7-2

SHIELD,LEG FR SIDE,L | FOR YKV

48113-19K00-YKV

$129.92

7-3

SHIELD, LEG FR SIDE LH (WHITE | FOR YWW

48113-19K00-YWW

$154.62

8-1

SHIELD, LEG SIDE UPPER RH | FOR YUA

48114-19K00-YUA

$100.48

8-1

SHIELD, LEG SIDE UPPER RH

48114-19K00-YUA

$100.48

8-2

SHIELD,LEG SIDE UPR,R | FOR YKV

48114-19K00-YKV

$93.05

8-2

SHIELD,LEG SIDE UPR,R

48114-19K00-YKV

$93.05

8-3

(WHITE) | FOR YWW

48114-19K00-YWW

$102.55

8-3

(WHITE)

48114-19K00-YWW

$102.55

9-1

(BLUE) | FOR YUA

48115-19K00-YUA

$100.48

9-1

(BLUE)

48115-19K00-YUA

$100.48

9-2

SHIELD,LEG SIDE UPR,L | FOR YKV

48115-19K00-YKV

$93.05

9-2

SHIELD,LEG SIDE UPR,L

48115-19K00-YKV

$93.05

9-3

SHIELD, LEG SIDE UPPER LH | FOR YWW

48115-19K00-YWW

$102.55

9-3

SHIELD, LEG SIDE UPPER LH

48115-19K00-YWW

$102.55

10

NUT (M5)

09148-05038

$1.97

11

NUT (M5)

09148-05038

$1.97

12

NUT (M5)

09148-05052

$3.37

13-1

COVER, FR LEG SHIELD (BLUE) | FOR YUA

48130-19K00-YUA

$299.32

13-2

COVER,FR LEG SHIELD | FOR YKV

48130-19K00-YKV

$277.13

13-3

COVER, FR LEG SHIELD (WHITE) | FOR YWW

48130-19K00-YWW

$305.42

14

.CUSHION (20X40X3)

44294-14H00

$3.33

15

NUT (M5)

09148-05052

$3.37

16

CLIP (10.5X14.3)

09409-08326

$2.48

17

SCREW

03541-0516A

$1.49

18

SCREW

03541-0516A

$1.49

19

SHIELD,LEG LOWER

48137-19K00

$128.77

20

CLIP

09409-06329

$2.79

21

CLIP (7.6X25.7,BLACK)

09409-08308-5ES

$1.97

22

EMBLEM,S

68641-26J00

$27.17

23

CUSHION,FR LEG SHIELD

48116-19K00

$3.78
