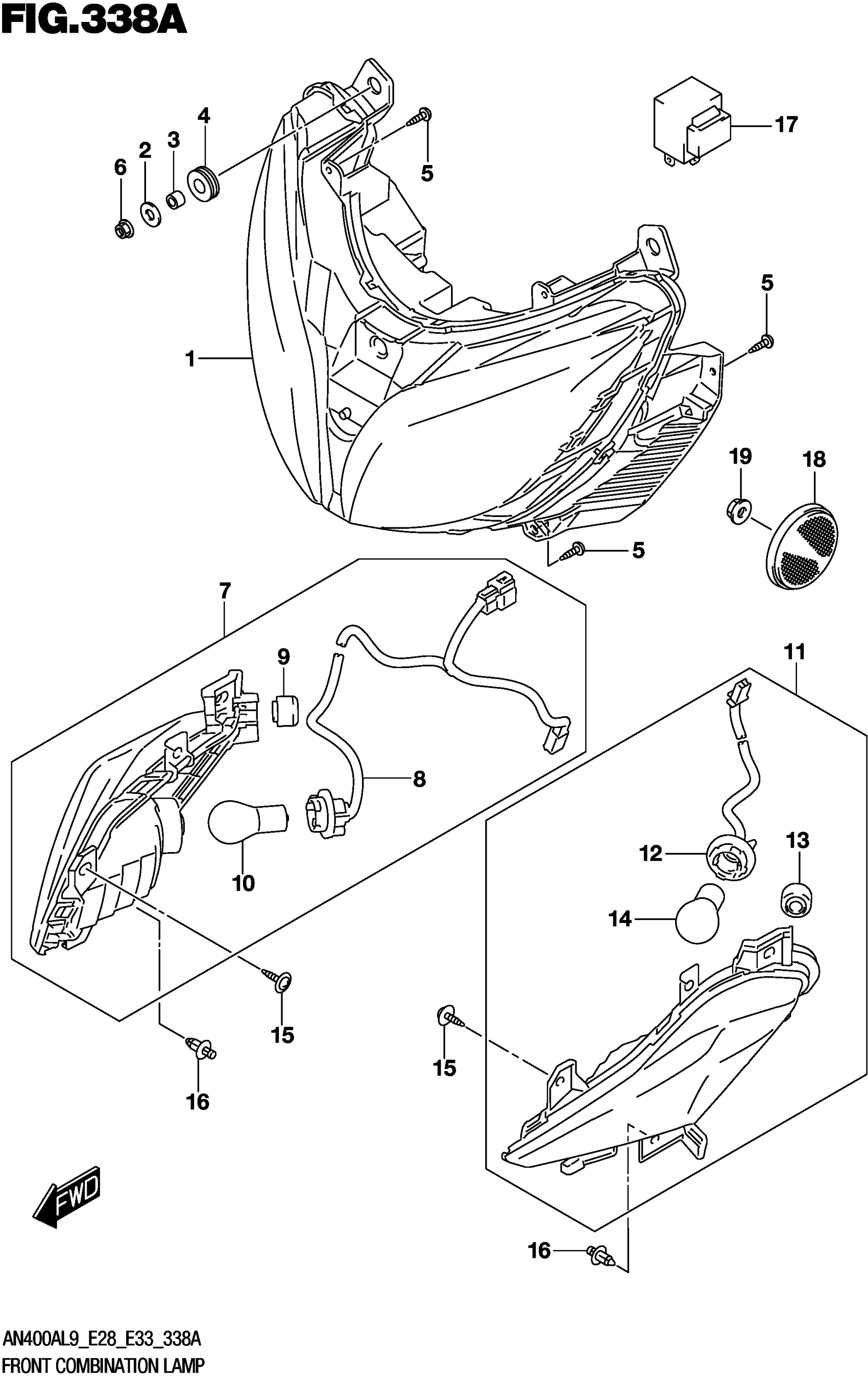

Suzuki AN400AL9 (2019) FRONT COMBINATION LAMP Diagram

#

Description
Price

1

HEADLAMP ASSY

35100-19K00

$1,174.72

2

WASHER (6.5X20X1.2)

09160-06077

$1.89

3

SPACER (6.5X10X7)

09180-06283

$1.89

4

CUSHION

09320-10059

$3.46

5

SCREW

03541-0516A

$1.37

6

NUT (6X12)

08316-1006A

$2.19

7

LAMP ASSY,FRONT TURNSIGNAL RH

35601-19K01

$151.65

8

.CORD ASSY RH

35618-19K01

$34.12

9

.CAP

35650-19K00

$12.63

10

.BULB (12V21W)

09471-12186

$16.18

11

LAMP ASSY,FRONT TURNSIGNAL LH

35602-19K01

$144.23

12

.CORD ASSY LH

35638-19K01

$25.52

13

.CAP

35650-19K00

$12.63

14

.BULB (12V21W)

09471-12186

$16.18

15

SCREW (5X15)

09136-05062

$2.19

16

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

17

RELAY ASSY,TURNSIGNAL LAMP

38610-06F01

$92.75

18

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

$11.41

19

NUT

08316-1005A

$2.19
