2019 Suzuki AN400AL9 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 2019 Suzuki AN400AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

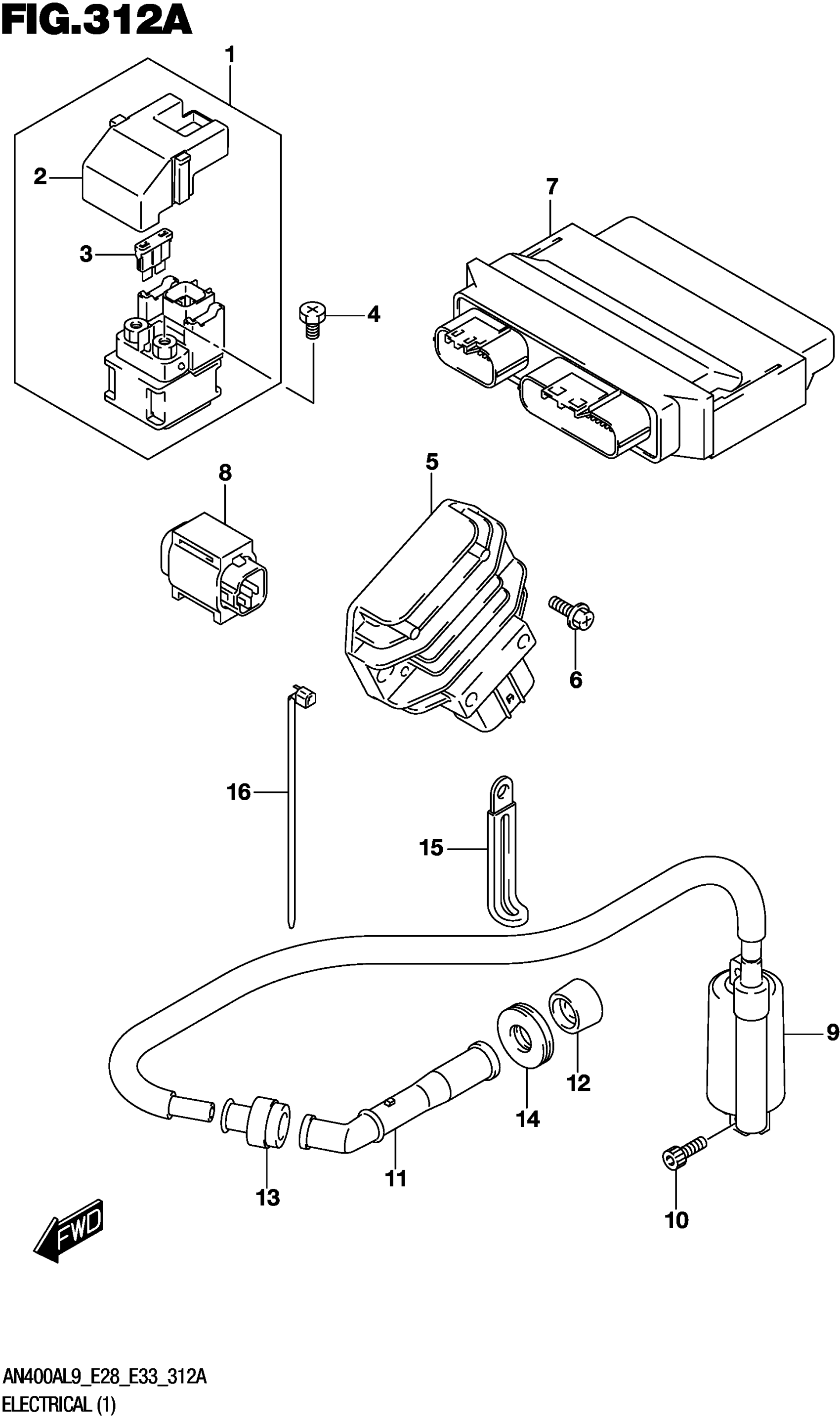

2019 Suzuki AN400AL9 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-21E20.

31800-21E30

1
Out of stock

2

.COVER

31861-47E00

1
Out of stock

3

.FUSE (30A)

09481-30101

2
Out of stock

4

SCREW (6X8)

09128-06013

2
Out of stock

5

RECTIFIER ASSY This part replaces 32800-19K02.

32800-19K03

1
Out of stock

6

SCREW

02162-0620C

2
Out of stock

7

CONTROL UNIT, FI

32920-19K31

1
Out of stock

8

SENSOR ASSY,FUEL CUT

33960-06G10

1
Out of stock

9

COIL ASSY, IGNITION

33410-05H00

1
Out of stock

10

BOLT

07130-0525A

2
Out of stock

11

CAP,SPARK PLUG

33510-48B10

1

$31.68

In stock

12

SEAL,SPARK PLUG

33541-23E10

1

$6.72

In stock

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

1
Out of stock

14

COVER,SPARK PLUG CAP

33543-33E01

1
Out of stock

15

CLAMP (L:45)

09404-06429

1
Out of stock

16

CLAMP (L:170)

09407-17403

1
Out of stock
