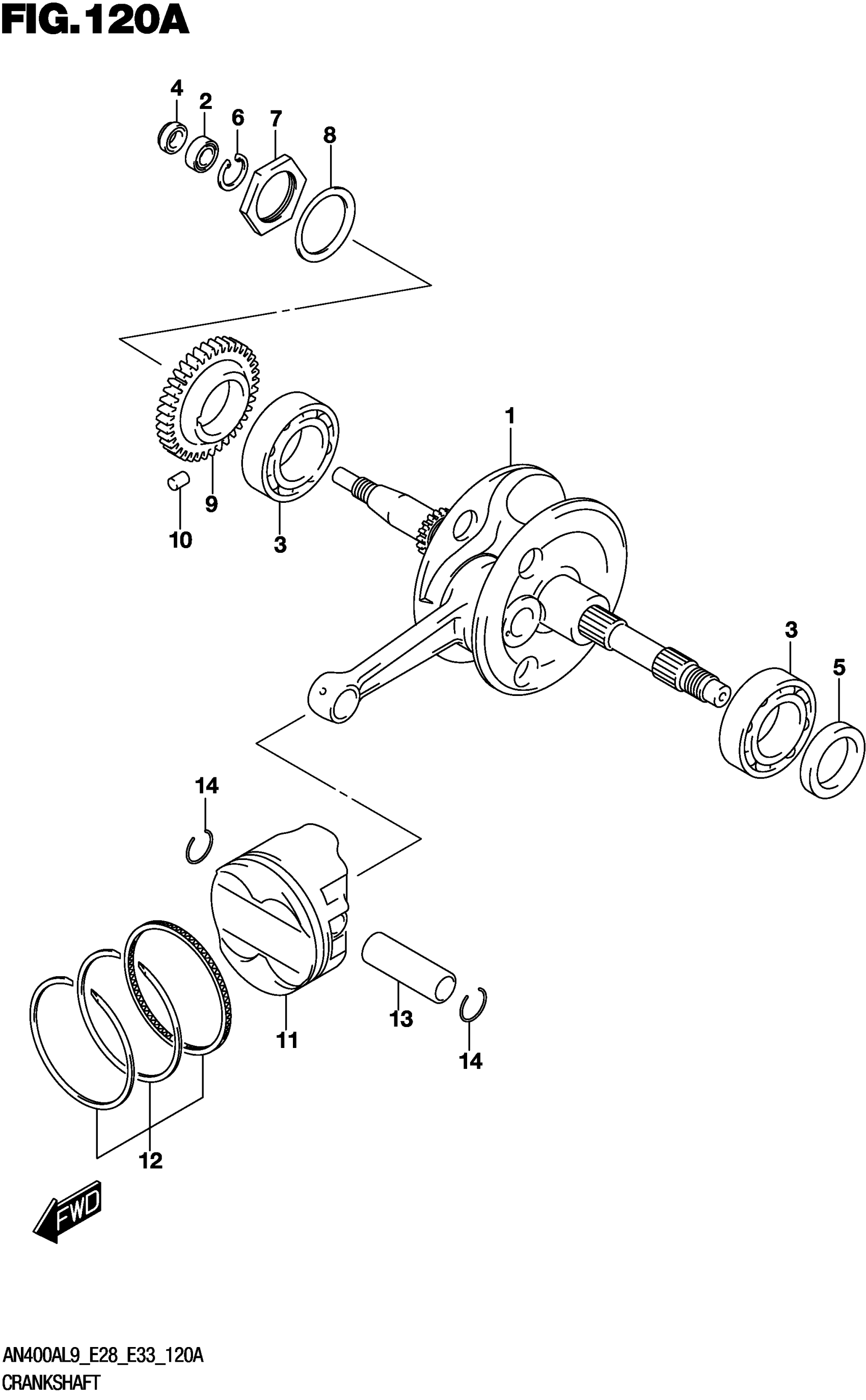

Suzuki AN400AL9 (2019) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-19K00

$541.70

2

BEARING (12X32X10)

09262-12016

Unavailable

3

BEARING (35X72X17)

09262-35038

$46.10

4

OIL SEAL (12X29X6)

09282-12011

$18.58

5

OIL SEAL (34X52X6)

09283-34011

$29.25

6

CIRCLIP

08331-41329

$2.42

7

NUT,FLYWHEEL

12664-24B01

$15.42

8

WASHER (35.1X52X1.5)

09164-35002

Unavailable

9

GEAR,CRANK BALANCER DRIVE (NT

12661-05H00

Unavailable

9

GEAR,CRANK BALANCER DRIVE (NT

12661-05H00

Unavailable

10

PIN (5X8)

09261-05005

$1.49

11

PISTON

12111-05H10-0F0

$142.85

12

RING SET, PISTON

12140-05H20

$93.47

13

PIN,PISTON

12151-05A00

$15.61

14

CIRCLIP

09381-20004

$1.65
