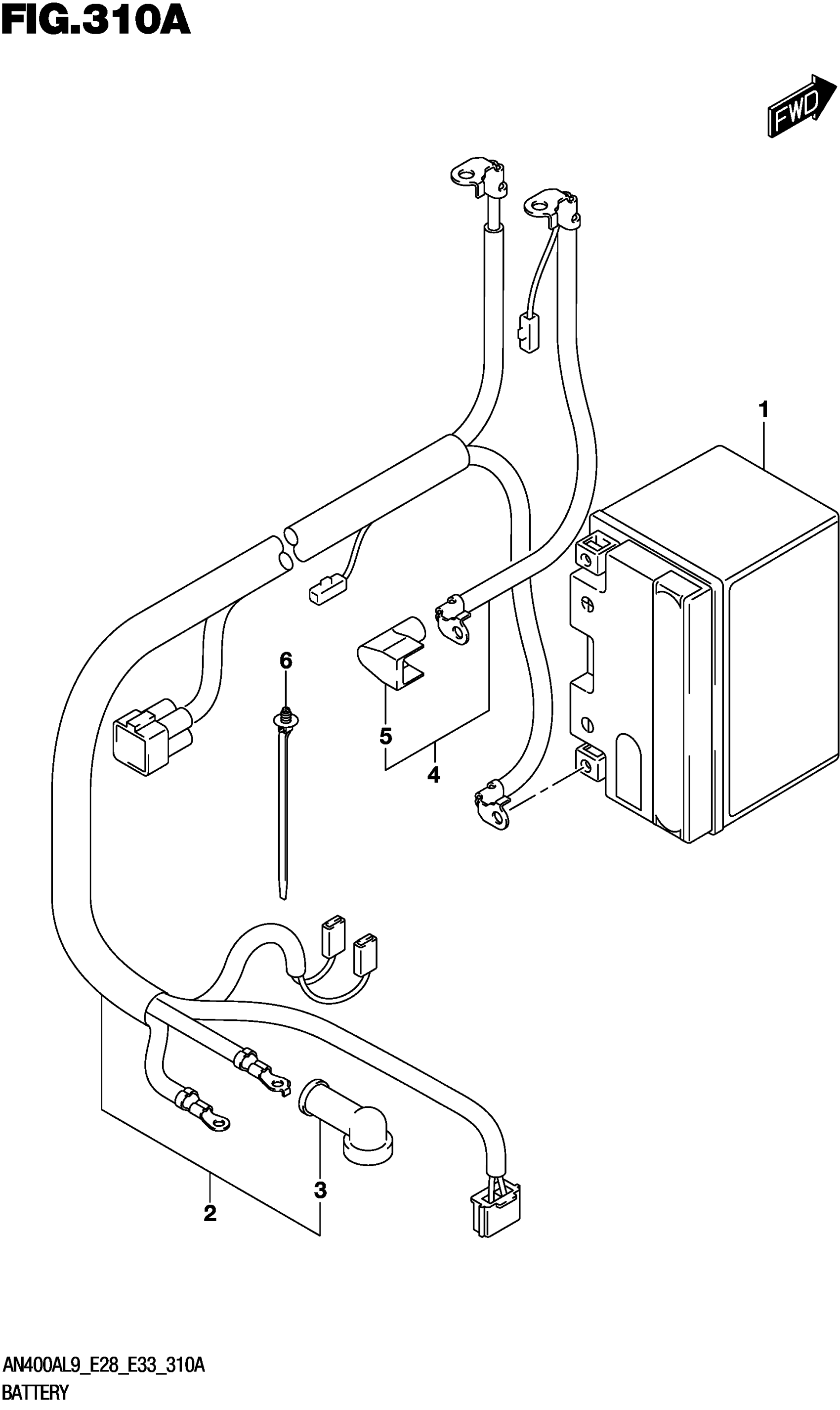

Suzuki AN400AL9 (2019) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (FT12A-BS,12V10AH) This part replaces 33630-05H01.

33610-14G11

$120.22

2

WIRE, STARTER MOTOR

33810-19K00

$169.85

3

.CAP,STARTER MOTOR LEAD

31861-48B10

$6.55

4

WIRE, BATTERY PLUS LEAD

33820-19K00

$28.40

5

.CAP,BATTERY PLUS TERMINAL

33624-04K00

$8.12

6

CLAMP (L:170)

09407-17403

$4.91
