2016 Suzuki AN400AL6 Transmission Diagram

← All diagrams

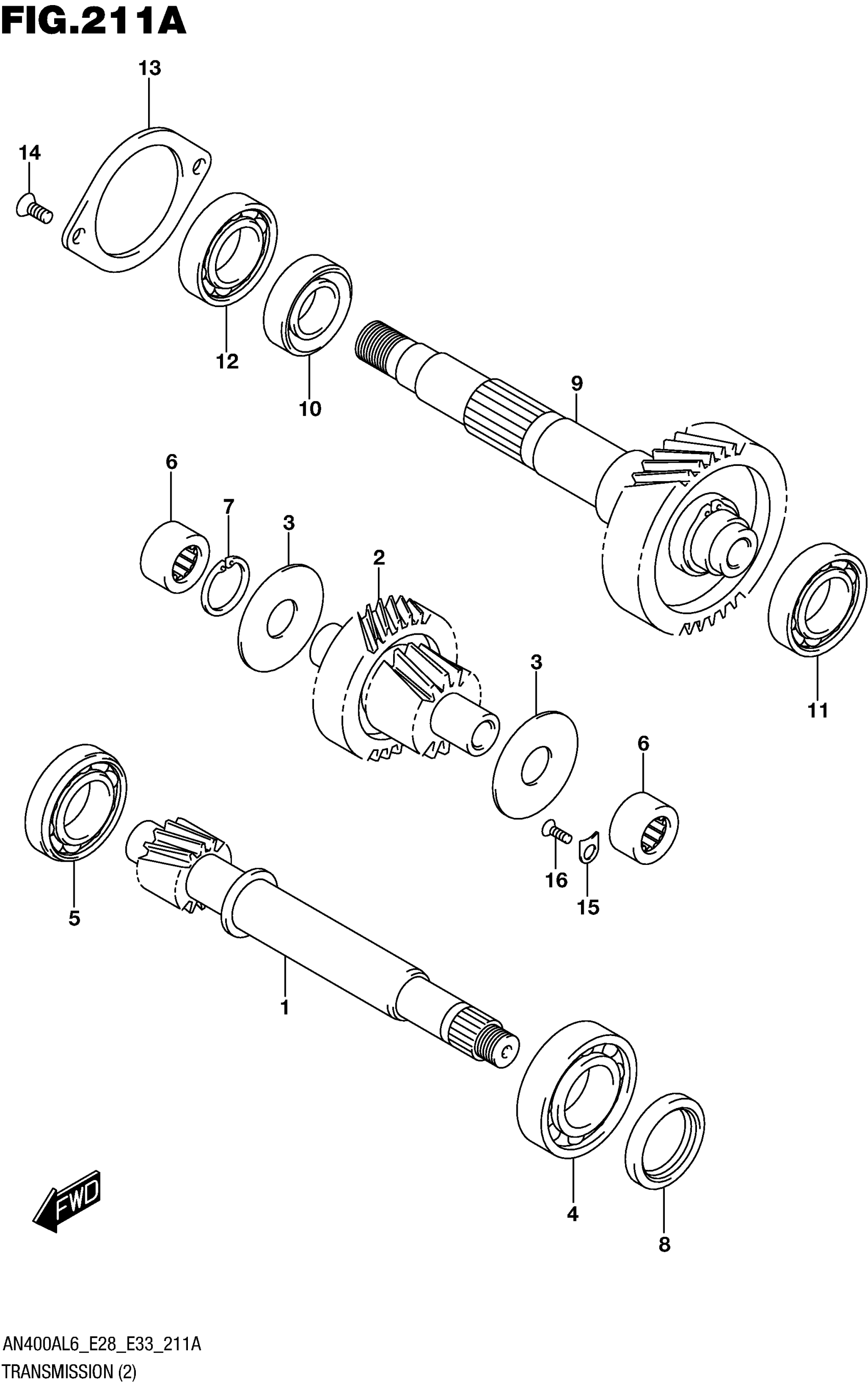

Find the part on the Transmission diagram for your 2016 Suzuki AN400AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki AN400AL6 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, DRIVE (NT:14)

24131-05H00

1
Out of stock

2

SHAFT, IDLE (NT:31)

24150-05H10

1
Out of stock

3

WASHER (20X50X2)

09160-20077

2
Out of stock

4

BEARING | LH

08113-52050

1

$90.42

In stock

5

BEARING (20X52X15) | RH

09262-20073

1
Out of stock

6

BEARING (20X34X18)

09263-20062

2
Out of stock

7

CIRCLIP

08331-41349

1
Out of stock

8

OIL SEAL (25X37X6)

09283-25097

1
Out of stock

9

SHAFT, REAR AXLE (NT:41)

24140-06H10

1
Out of stock

10

OIL SEAL (38X52X7)

09283-38019

1
Out of stock

11

BEARING (25X62X17) | LH

09262-25084

1
Out of stock

12

1

$51.73

In stock

13

RETAINER, AXLE SHAFT

24751-14F10

1
Out of stock

14

SCREW

02122-0616A

2
Out of stock

15

RETAINER, IDLE SHAFT LH

24742-44B00

1
Out of stock

16

SCREW

02122-0616A

1
Out of stock
