2016 Suzuki AN400AL6 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2016 Suzuki AN400AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

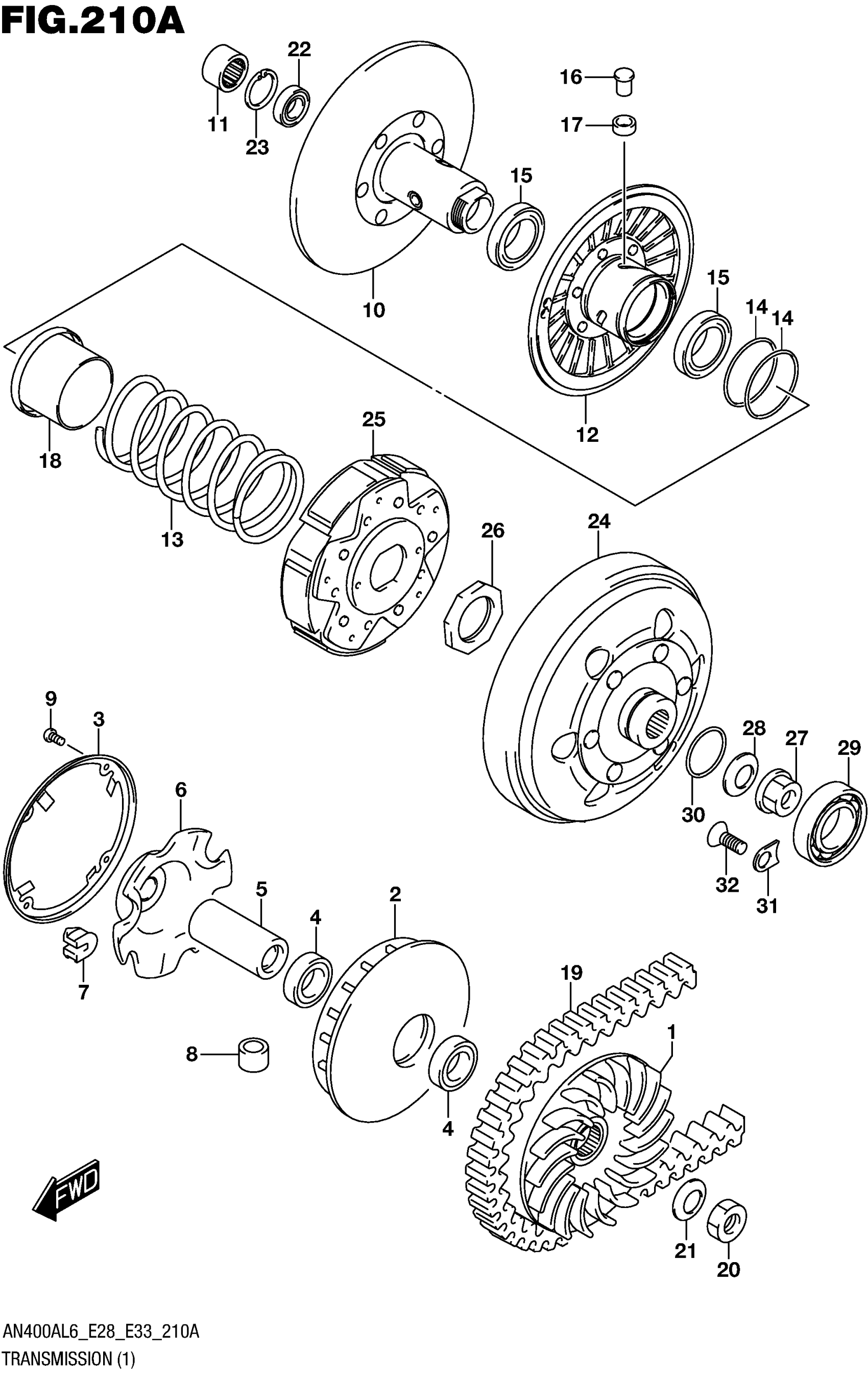

2016 Suzuki AN400AL6 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FACE,FIXED DRIVE

21110-05H00

1
Out of stock

2

FACE,MOVABLE DRIVE

21120-05H00

1
Out of stock

3

COVER, MOVABLE

21122-05H00

1
Out of stock

4

SEAL,MOVABLE DRIVE FACE OIL

21124-15F00

2
Out of stock

5

SPACER,MOVABLE DRIVE

21125-05H00

1
Out of stock

6

PLATE,MOVABLE DRIVE

21431-05H00

1
Out of stock

7

DAMPER,MOVABLE DRIVE PLATE

21481-14F00

4
Out of stock

8

ROLLER,MOVABLE DRIVEN

21650-15F40

8
Out of stock

9

SCREW

02142-0410A

4
Out of stock

10

FACE,FIXED DRIVEN

21210-05H00

1
Out of stock

11

BEARING,FIXED DRIVEN RH This part replaces 21214-15F00.

21214-15F01

1
Out of stock

12

FACE,MOVABLE DRIVEN

21240-05H10

1
Out of stock

13

SPRING,MOVABLE DRIVEN

21243-15F40

1
Out of stock

14

O-RING

21245-15F00

2
Out of stock

15

SEAL, MOVABLE DRIVEN OIL

21247-31G00

2
Out of stock

16

PIN,MOVABLE DRIVEN

21248-15F01

3
Out of stock

17

SPACER,MOVABLE DRIVEN PIN

21249-15F00

3
Out of stock

18

SHEET,MOVABLE DRIVEN

21471-15F20

1
Out of stock

19

V BELT, DRIVE This part replaces 27601-05H00.

27601-05H10

1
Out of stock

20

NUT

09140-18501

1
Out of stock

21

WASHER

09164-18001

1
Out of stock

22

1

$19.66

In stock

23

CIRCLIP

08331-41379

1
Out of stock

24

HOUSING,CLUTCH

21220-05H30

1
Out of stock

25

CLUTCH ASSY,SHOE

21501-05H41

1
Out of stock

26

NUT,SHOE CLUTCH

21518-15F00

1
Out of stock

27

NUT

09140-16002

1
Out of stock

28

WASHER

09164-16002

1
Out of stock

29

BEARING (35X62X14)

09262-35064

1
Out of stock

30

O RING (D:2,ID:31)

09280-32008

1
Out of stock

31

RETAINER, CLUTCH HOUSING

24742-44B00

2
Out of stock

32

SCREW

02122-0616A

2
Out of stock
