Description

Price

1

BRACKET, FRONT FORK UNDER

51410-05H00

$850.02

2

.SEAL, STEERING LOWER

51644-12C00

$9.44

3

.BEARING (30X55X17)

09265-30020

$44.41

4

BOLT

51451-05H00

$6.55

5

BRACKET, FRONT FORK UPPER

51311-14F10

$206.78

6

SCREW, FRONT FORK UPPER

56123-14F10

$6.03

7

BOLT (10X25)

09106-10067

Unavailable

8

HOLDER, HANDLE BAR (BLACK)

56211-09F00-291

$29.37

9

BOLT (8X40)

09106-08122

Unavailable

10

BEARING (25X47X15)

09265-25038

$45.57

11

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

12

NUT, STEERING STEM

51631-28000

$17.37

13

WASHER

09166-26001

$2.07

14

NUT, STEERING STEM LOCK

51632-02400

$16.87

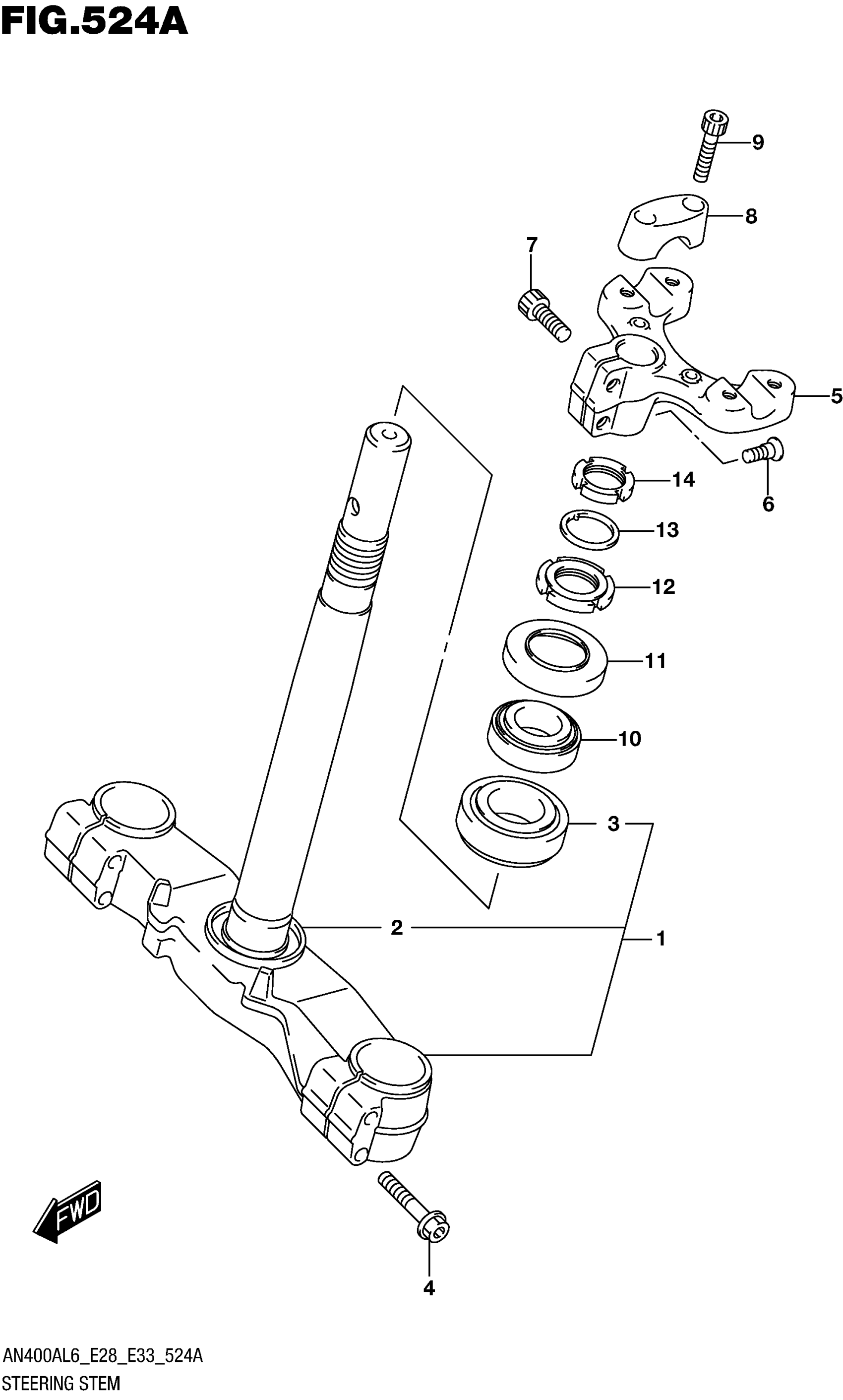

Suzuki AN400AL6 (2016) STEERING STEM Diagram
