2016 Suzuki AN400AL6 Rear LEG Shield Diagram

← All diagrams

Find the part on the Rear LEG Shield diagram for your 2016 Suzuki AN400AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

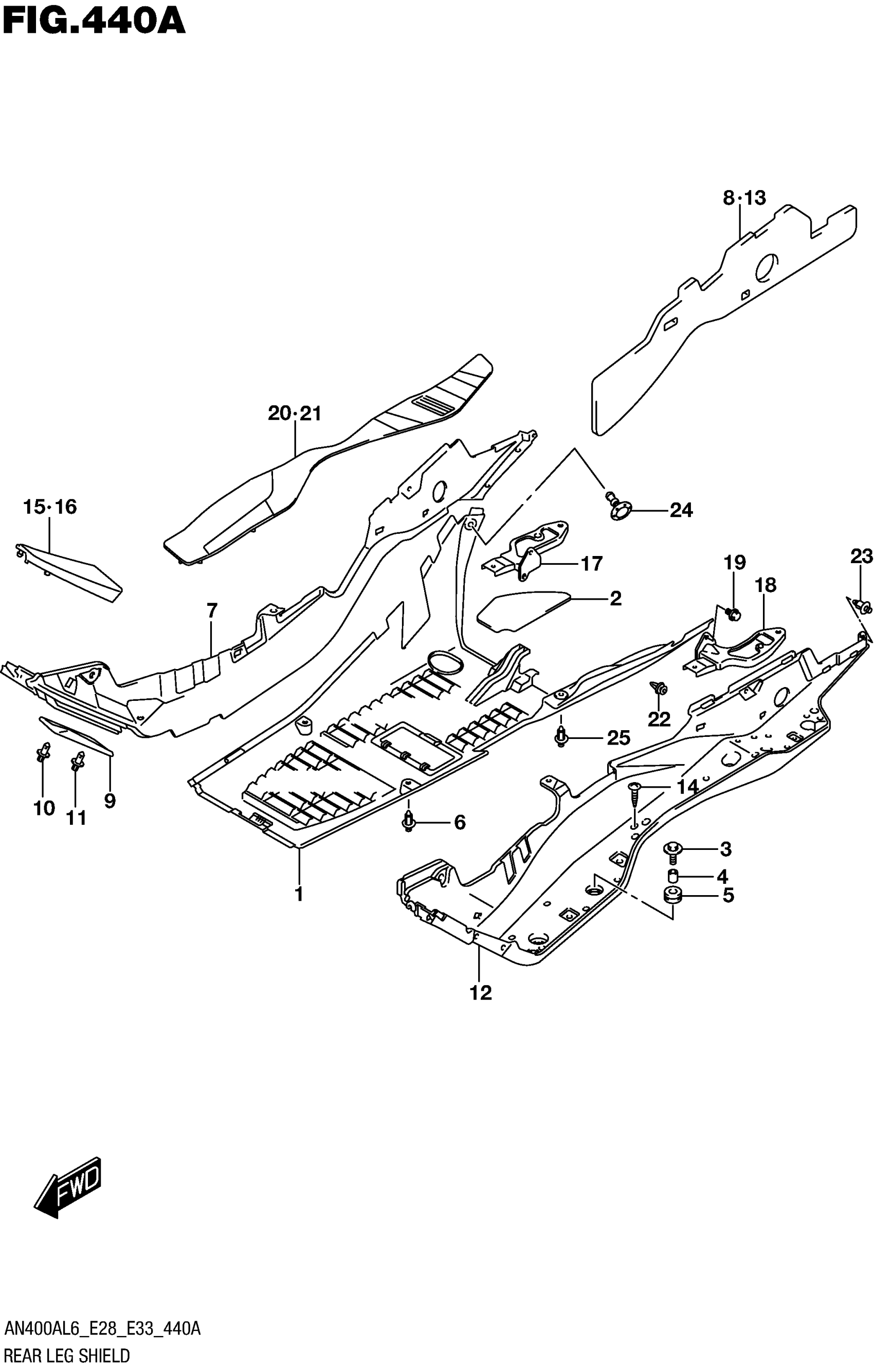

2016 Suzuki AN400AL6 Rear LEG Shield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, UNDER CENTER

48138-05H02

1

$217.28

In stock

2

CUSHION, UNDER COVER

48183-05H00

1
Out of stock

3

BOLT (6X25)

09116-06131

8

$2.58

In stock

4

SPACER (8.5X12X11)

09180-08189

8

$2.81

In stock

5

CUSHION

09320-11020

8

$5.70

In stock

6

2

$3.04

In stock

7

FOOT BOARD, RH (BLACK)

48121-05H01-5PK

1
Out of stock

8

CUSHION, FOOTBOARD RH

48124-05H00

1
Out of stock

9

COVER, RH

48123-05H00

1
Out of stock

10

CLIP (BLACK)

09409-06314-5PK

1

$2.92

In stock

11

CLIP (BLACK)

09409-08308-5ES

1

$2.10

In stock

12

FOOT BOARD, LH (BLACK)

48122-05H00-5PK

1

$158.90

In stock

13

CUSHION, FOOTBOARD LH

48125-05H00

1
Out of stock

14

SCREW

03541-0516A

16
Out of stock

15

1

$26.03

In stock

16

1

$31.28

In stock

17

BRACKET, PILLION RH

43650-05H00

1
Out of stock

18

BRACKET, PILLION LH

43750-05H00

1
Out of stock

19

BOLT

01550-0612A

4
Out of stock

20

1

$57.73

In stock

21

1

$57.73

In stock

22

CLIP

09409-07344

1

$3.12

In stock

23

CLIP (BLACK)

09409-06314-5PK

2

$2.92

In stock

24

CLIP

94479-35F00

3
Out of stock

25

CLIP (BLACK)

09409-08308-5ES

1

$2.10

In stock
