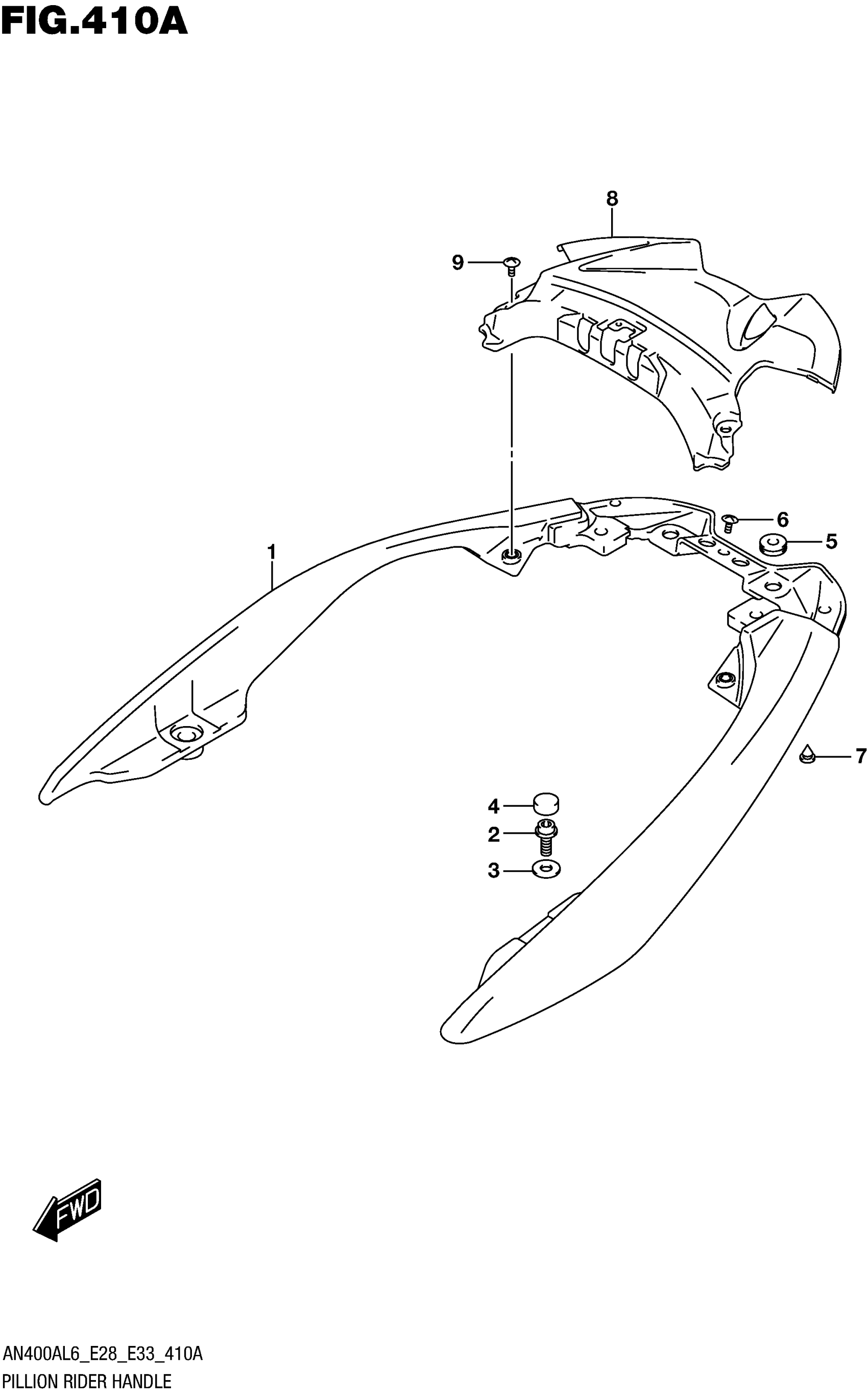

Suzuki AN400AL6 (2016) PILLION RIDER HANDLE (AN400AL6 E33) Diagram

#

Description
Price

1-1

HANDLE, PILLION RIDER (GRAY)

46210-05H03-PGZ

Unavailable

1-2

HANDLE, PILLION RIDER (WHITE)

46210-05H03-RB5

Unavailable

1-3

HANDLE, PILLION RIDER (BLACK)

46210-05H03-YKV

Unavailable

2

BOLT (8X25)

09106-08151

$4.02

3

WASHER

09169-08049

$3.76

4

CAP, FRONT

46271-14G00

$8.52

5

CUSHION

09320-08028

$2.80

6

SCREW (6X16)

09139-06168

$2.64

7

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.74

8-1

COVER, PILLION HDL FR (GRAY)

46215-05H00-PGZ

Unavailable

8-2

COVER, PILLION HDL FR (WHITE)

46215-05H00-RB5

Unavailable

8-3

COVER, PILLION HDL FR (BLACK)

46215-05H00-YKV

Unavailable

9

SCREW (6X16)

09139-06168

$2.64
