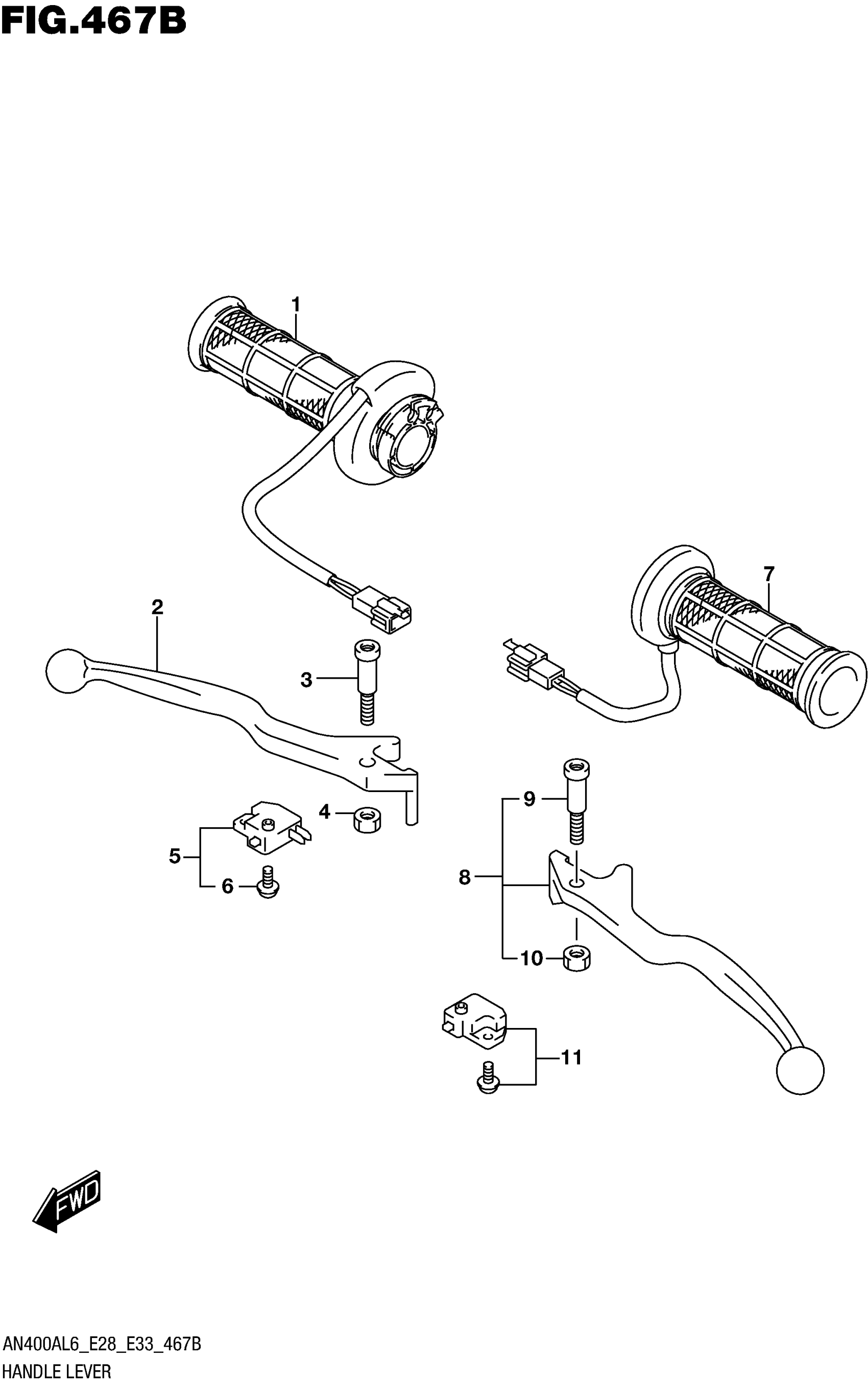

Suzuki AN400AL6 (2016) HANDLE LEVER (AN400ZAL6 E28) Diagram

#

Description

Price

1

HEATER, THROTTLE GRIP

57110-05H10

Unavailable

2

LEVER, FRONT BRAKE

57421-14F00

$19.53

3

BOLT, PIVOT

57431-05D00

$13.20

4

NUT

08319-2106A

$1.91

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$38.46

6

.SCREW

57465-17C00

$2.19

7

HEATER ASSY, GRIP LH

57210-05H10

$207.37

8

LEVER ASSY, REAR BRAKE

57500-14F30

Unavailable

9

.BOLT, PIVOT

57431-05D00

$13.20

10

.NUT

08319-2106A

$1.91

11

SWITCH ASSY,RR BRAKE This part replaces 57560-14J01.

57560-14J02

$38.66
