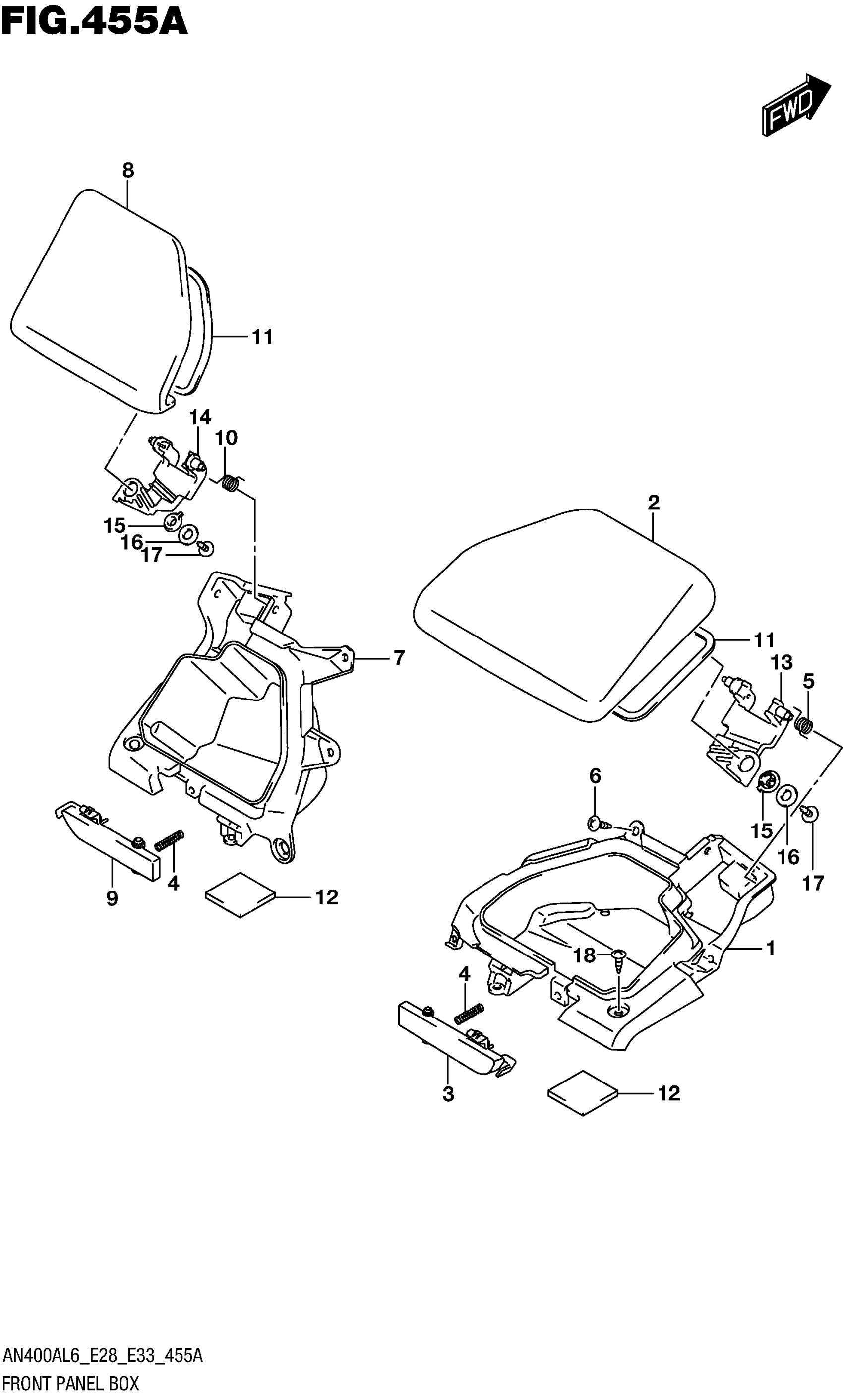

Suzuki AN400AL6 (2016) FRONT PANEL BOX Diagram

#

Description
Price

1

BOX, PANEL RH (BLACK)

92141-05H01-291

$114.33

2

LID, PANEL RH (BLACK)

92142-05H00-291

$22.23

3

LOCK, PANEL BOX RH (BLACK)

92143-05H00-291

$15.93

4

SPRING, PANEL LID

92144-14G01

$5.47

5

SPRING, PANEL LID RH

92145-14G01

$6.94

6

SCREW

03541-0516A

$1.49

7

BOX, FRONT PANEL LH (BLACK)

92151-05H01-291

Unavailable

8

LID, PANEL LH (BLACK)

92152-05H00-291

$22.23

9

LOCK, PANEL BOX LH (BLACK)

92153-05H00-291

Unavailable

10

SPRING, PANEL LID LH

92155-14G01

$6.94

11

CUSHION, BOX NO.2

92147-14G00

$5.98

12

CUSHION, PANEL LID

92147-14G10

Unavailable

13

ARM, LID RH

92148-05H00

Unavailable

14

ARM, LID LH

92158-05H00

Unavailable

15

STOPPER

92149-14G10

$7.63

16

CUSHION

09320-09004

$3.03

17

SCREW (5X16)

09132-05057

$2.42

18

SCREW (5X16)

09132-05053

$2.28
