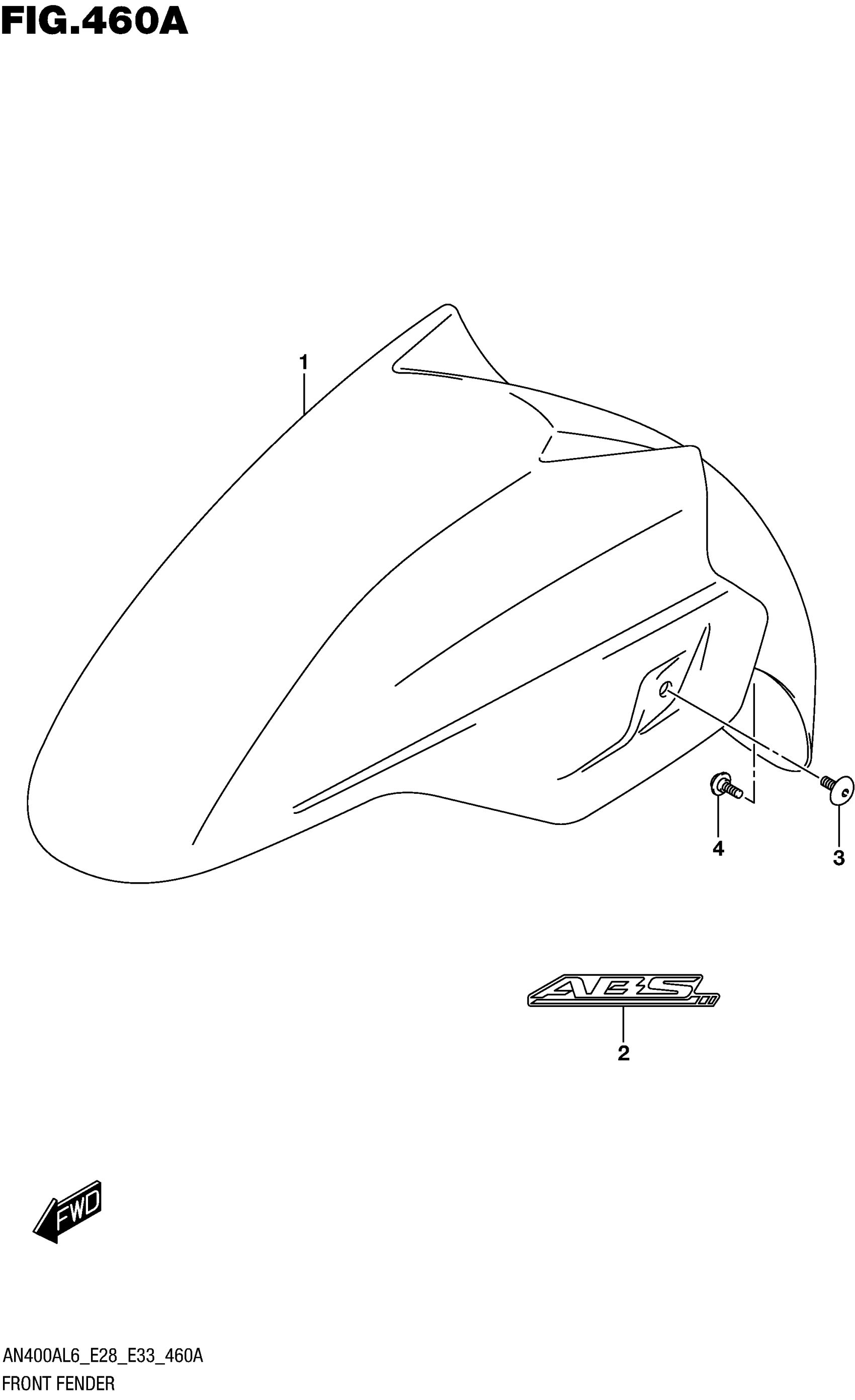

Suzuki AN400AL6 (2016) FRONT FENDER (AN400AL6 E33) Diagram

#

Description

Price

1-1

FENDER, FRONT (GRAY)

53111-05H00-PGZ

$349.70

1-2

FENDER, FRONT (WHITE)

53111-05H00-RB5

Unavailable

1-3

FENDER, FRONT (BLACK)

53111-05H00-YKV

$349.70

2-1

EMBLEM,ABS | FOR PGZ This part replaces 68151-38G10-A79.

68151-38G11-A79

$12.77

2-2

EMBLEM,ABS(GRAY | FOR RB5 This part replaces 68151-38G00-1ZY.

68151-38G01-1ZY

$12.68

2-3

EMBLEM,"ABS" | FOR YKV This part replaces 68151-38G10-GWM.

68151-38G11-GWM

$12.83

3

SCREW (6X16)

09139-06131

$2.93

4

BOLT (6X16.5)

09111-06094

$2.03
