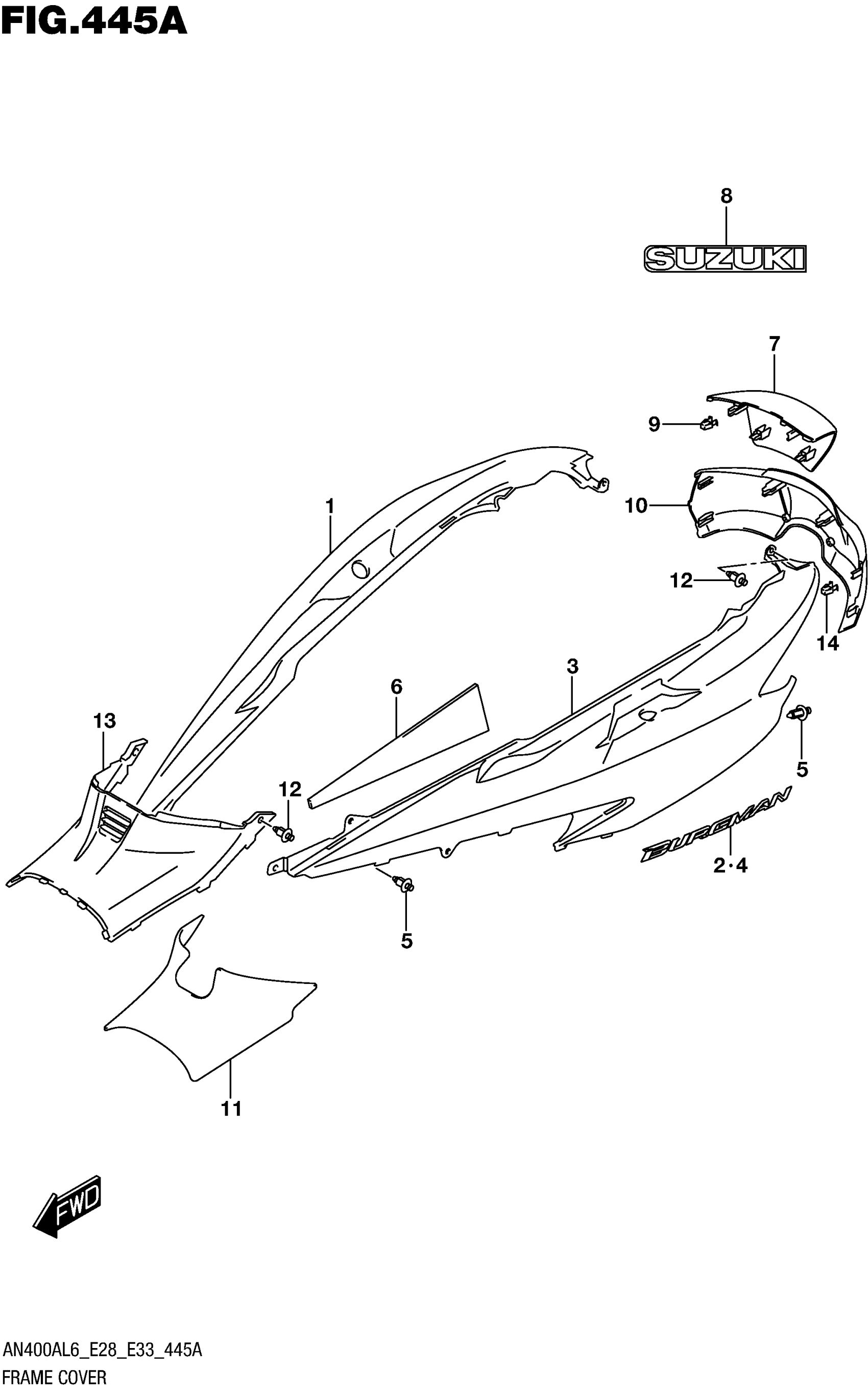

Suzuki AN400AL6 (2016) FRAME COVER (AN400AL6 E33) Diagram

#

Description
Price

1-1

COVER,FRAME RH This part replaces 47111-05H00-PGZ.

47111-05H01-PGZ

Unavailable

1-2

COVER, FRAME RH (WHITE)

47111-05H00-RB5

Unavailable

1-3

COVER, FRAME RH (BLACK)

47111-05H00-YKV

$279.24

2

EMBLEM,FRAME CO This part replaces 68131-05H10.

68131-12JA1

$19.98

3-1

COVER,FRAME,L(G This part replaces 47211-05H00-PGZ.

47211-05H01-PGZ

$255.22

3-2

COVER, FRAME LH (WHITE)

47211-05H00-RB5

Unavailable

3-3

COVER, FRAME LH (BLACK)

47211-05H00-YKV

Unavailable

4

EMBLEM,FRAME CO This part replaces 68131-05H10.

68131-12JA1

$19.98

5

CLIP (BLACK)

09409-08308-5ES

$1.97

6

CUSHION, FRAME COVER

47162-05H00

Unavailable

7-1

COVER, FRAME CENTER (GRAY)

47311-05H00-PGZ

Unavailable

7-2

COVER, FRAME CENTER (WHITE)

47311-05H00-RB5

Unavailable

7-3

COVER, FRAME CENTER (BLACK)

47311-05H00-YKV

$157.37

8-1

EMBLEM, "SUZUKI" (SILVER/GRAY | FOR PGZ

68131-05H70-AJK

Unavailable

8-2

EMBLEM,SUZUKI | FOR RB5 This part replaces 68131-05H50-YJH.

68131-05H51-YJH

$8.13

8-3

EMBLEM, "SUZUKI" | FOR YKV

68131-05H70-HSE

$10.98

8-3

(SILVER/BLACK)

68131-05H70-HSE

$10.98

9

CLIP

09409-08326

$2.48

10-1

COVER, FRAME LOWER (GRAY)

47321-05H00-PGZ

$221.65

10-2

COVER, FRAME LOWER (WHITE)

47321-05H00-RB5

Unavailable

10-3

COVER, FRAME LOWER (BLACK)

47321-05H00-YKV

$221.65

11

CUSHION, FRONT

47161-05H00

Unavailable

12

CLIP (BLACK)

09409-08308-5ES

$1.97

13

COVER, FRAME FRONT (BLACK)

47351-05H01-291

Unavailable

14

CLIP

09409-08326

$2.48
