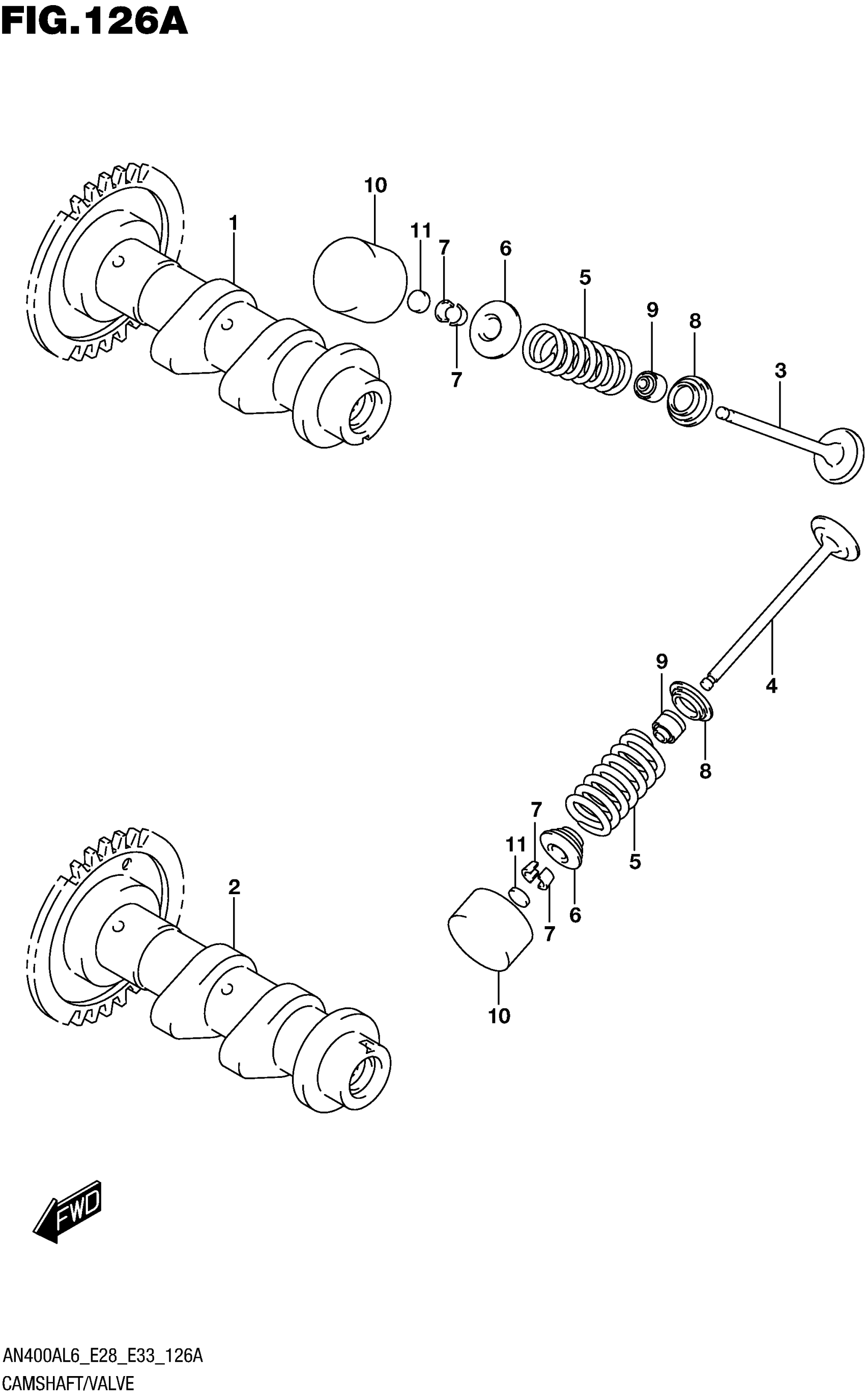

Suzuki AN400AL6 (2016) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT, INTAKE (NT:34)

12710-05H00

Unavailable

2

CAMSHAFT, EXHAUST (NT:34)

12720-05H00

Unavailable

3

VALVE,INTAKE

12911-05H00

$45.38

4

VALVE,EXHAUST

12912-05H00

$71.50

5

SPRING, VALVE

12921-05H00

Unavailable

6

RETAINER,VALVE SPRING

12931-10G00

$8.02

7

COTTER, VALVE

12932-32C00

$2.03

8

SEAT,VALVE SPRING

12933-39E00

$8.60

9

OIL SEAL (4.5X10X8)

09289-04002

$6.49

10

TAPPET This part replaces 12891-17E00.

12891-47H00

$68.43

11-1

SHIM, TAPPET (T:1.20)

12892-05C00-120

$11.60

11-2

SHIM, TAPPET (T:1.25)

12892-05C00-125

$11.83

11-3

SHIM, TAPPET (T:1.30)

12892-05C00-130

$10.06

11-4

SHIM, TAPPET (T:1.35)

12892-05C00-135

$10.06

11-5

SHIM, TAPPET (T:1.40)

12892-05C00-140

$11.83

11-6

SHIM, TAPPET (T:1.45)

12892-05C00-145

$9.87

11-7

SHIM, TAPPET (T:1.50)

12892-05C00-150

$11.83

11-8

SHIM, TAPPET (T:1.55)

12892-05C00-155

$9.69

11-9

SHIM, TAPPET (T:1.60)

12892-05C00-160

$9.69

11-10

SHIM, TAPPET (T:1.65)

12892-05C00-165

$9.69

11-11

SHIM, TAPPET (T:1.70)

12892-05C00-170

$11.60

11-12

SHIM, TAPPET (T:1.75)

12892-05C00-175

$9.87

11-13

SHIM, TAPPET (T:1.80)

12892-05C00-180

$11.38

11-14

SHIM, TAPPET (T:1.85)

12892-05C00-185

$11.83

11-15

SHIM, TAPPET (T:1.90)

12892-05C00-190

$11.83

11-16

SHIM, TAPPET (T:1.95)

12892-05C00-195

$11.83

11-17

SHIM, TAPPET (T:2.00)

12892-05C00-200

$11.60

11-18

SHIM, TAPPET (T:2.05)

12892-05C00-205

$11.83

11-19

SHIM, TAPPET (T:2.10)

12892-05C00-210

$11.83

11-20

SHIM, TAPPET (T:2.15)

12892-05C00-215

$11.83

11-21

SHIM, TAPPET (T:2.20)

12892-05C00-220

$11.83

12

SHIM SET, TAPPET | OPT

12800-05830

$1,211.58

12

T:1.20, 1.25...2.95, 300 | NOT ILLUSTRATED

12800-05830

$1,211.58

12

(5PCS.EACH) & CASE

12800-05830

$1,211.58

13

.CASE, TAPPET SHIM | OPT

99000-69491

Unavailable

13

.CASE,TAPPET SHIM | NOT ILLUSTRATED

99000-69491

Unavailable
